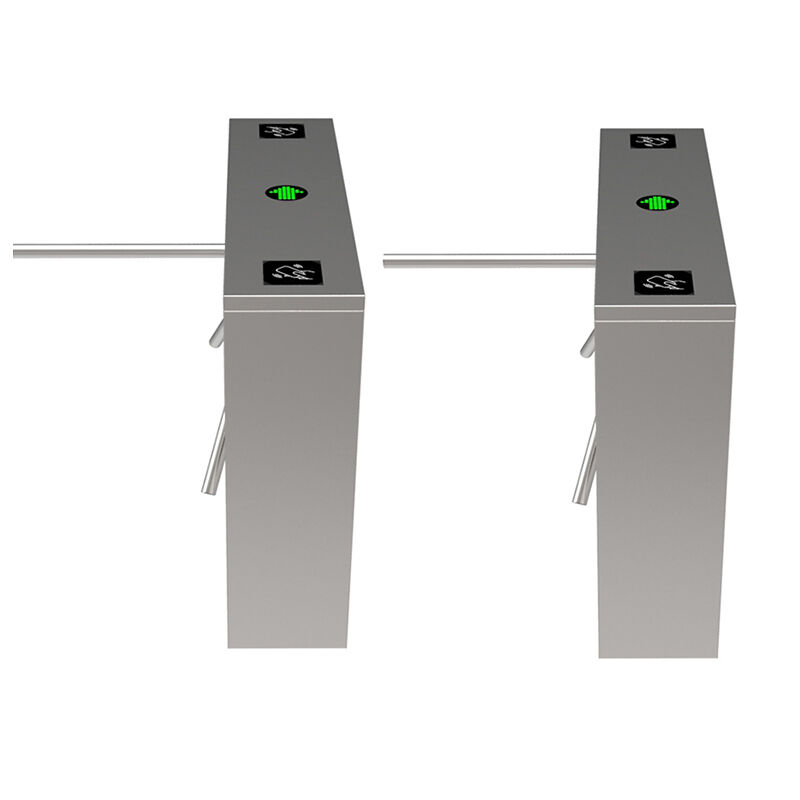

AC 220V 110V Hydraulic Buffer Waist Height Tripod Turnstile Mechanical Drive 550mm Width
  • AC 220V 110V Hydraulic Buffer Waist Height Tripod Turnstile Mechanical Drive 550mm Width
  • AC 220V 110V Hydraulic Buffer Waist Height Tripod Turnstile Mechanical Drive 550mm Width
  • AC 220V 110V Hydraulic Buffer Waist Height Tripod Turnstile Mechanical Drive 550mm Width

AC 220V 110V Hydraulic Buffer Waist Height Tripod Turnstile Mechanical Drive 550mm Width

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT02
Product Details
Communication Interface:
Dry Contact/Relay
Land Width:
550mm
Housing Material:
SS304
Package:
Plywood Box
Passing Rate:
30 Person/minute
Protection Grade:
IP54
Highlight:

Hydraulic Buffer Waist Tripod Turnstile

,

550mm Width Waist Tripod Turnstile

,

Mechanical Drive Drop Arm Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,
Supply Ability
3,000pcs per month
Product Description
Hydraulic Buffer Waist Tripod Turnstile Mechanical Drive 550mm Width
Finger Print Time Attendance And Face Recognition Tripod Turnstile Intelligent Gate
Tripod Turnstiles provide reliable and efficient access control, ensuring only authorized personnel can enter specific building areas. The Sinomatic SN-TT series drop arm turnstile combines attractive design with robust construction, making it ideal for high-traffic and demanding environments. Its compact footprint enables easy multi-lane configurations, while multiple color options allow seamless integration with your lobby design and branding.
Crafted from bent stainless steel plates, this turnstile features a pleasing appearance, durability, and corrosion resistance. The system includes standard electrical interfaces for easy integration with various card reading technologies including magnetic cards, bar code cards, ID cards, and IC cards. This ensures orderly personnel flow while preventing unauthorized access. A dedicated fire control interface meets emergency evacuation requirements, enabling rapid barrier release during emergencies.
AC 220V 110V Hydraulic Buffer Waist Height Tripod Turnstile Mechanical Drive 550mm Width 0
Main Functions and Features
  • Mechanical drive unit with solenoid locking mechanism eliminates expensive electric motors and reduces maintenance costs
  • Automatic arm positioning: rotates to next idle position if moved beyond halfway, returns to current position if moved less than halfway
  • Built-in adjustable tensioner controls rotation force to prevent over-rotation, allowing easy operation for all users including elderly and children
  • Configurable for bi-directional or uni-directional operation with key-locked housing to prevent tampering
  • Innovative mounting surface ensures simple and convenient installation for system integrators
  • Compatible with various access control devices: IC/ID card readers, bar-code scanners, fingerprint scanners (access controller required)
  • Automatic reset function cancels user authority if passage isn't completed within the preset time (default 5 seconds)
  • Equipped with automatic regulated hydraulic buffer device for smooth, quiet operation without impact noise
  • Auto-reposition function locks turnstile automatically if users don't pass within regulated time after card reading
  • Automatic arm drop when power is disconnected
Technical Specifications
Model SN-TT02
Brand SINOMATIC
Size/Stick Length 1200×280×980mm (510mm free of case)
Arm Length 500mm (standard)
Material SUS304 stainless steel, thickness 1.2mm
Input Voltage 110V/220V ±10%
Driving Motor 24V
Failure-free Operation 5 million cycles
Weight 50kg
Traffic Speed 30 persons/minute
Flap Opening/Closing Time 0.2 seconds
Channel Width ≤600mm
Operating Temperature -30℃ to +70℃
Communication Interface Dry contact
Working Environment Indoor and outdoor
AC 220V 110V Hydraulic Buffer Waist Height Tripod Turnstile Mechanical Drive 550mm Width 1
