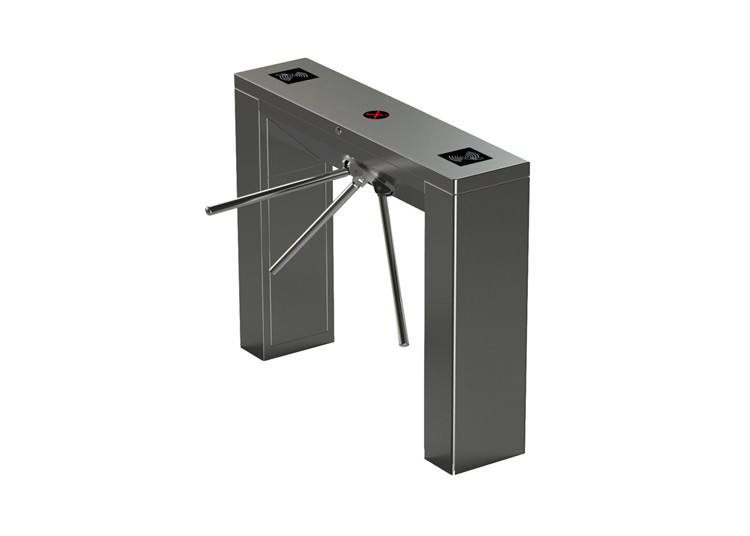

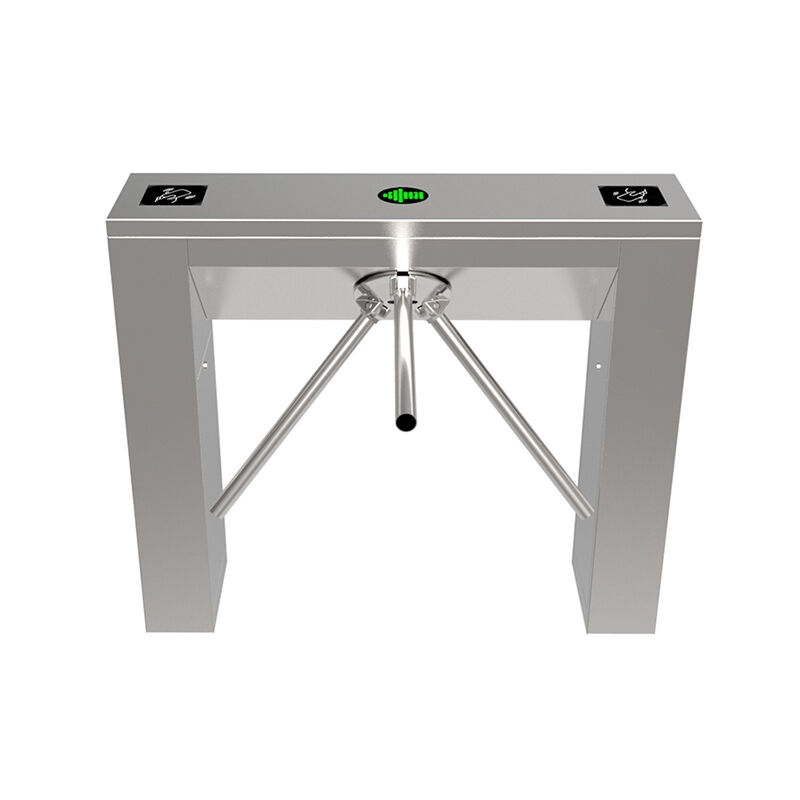

510mm Arm Tripod Turnstile Barrier SUS304 Rod Solenoid Locking Hydraulic Buffer
  • 510mm Arm Tripod Turnstile Barrier SUS304 Rod Solenoid Locking Hydraulic Buffer
  • 510mm Arm Tripod Turnstile Barrier SUS304 Rod Solenoid Locking Hydraulic Buffer
  • 510mm Arm Tripod Turnstile Barrier SUS304 Rod Solenoid Locking Hydraulic Buffer
510mm Arm Tripod Turnstile Barrier SUS304 Rod Solenoid Locking Hydraulic Buffer

510mm Arm Tripod Turnstile Barrier SUS304 Rod Solenoid Locking Hydraulic Buffer

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT02
Product Details
Arm Length:
510mm
Land Width:
550mm
Control Signal:
Dry Contact
Frame Material:
SS304
Size:
1200*280*1000 Mm(Customization Acceptable)
Passing Rate:
30 Person/minute
Highlight:

510mm Arm Tripod Turnstile Barrier

,

Hydraulic Buffer Tripod Turnstile Barrier

,

Solenoid Locking Waist Tripod Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,
Supply Ability
3,000pcs per month
Product Description
510mm Arm Tripod Turnstile Barrier SUS304 Rod Solenoid Locking Hydraulic Buffer
Durable And Fast 304 Stainless Rod Single And Bi-Directional Manual Tripod Turnstile Barrier
Name Tripod Turnstile Gate - Semi-automatic
Model SN-TT02
Brand SINOMATIC / OEM
Material 304 Stainless Steel
Function Access control
Arm Material Stainless Steel Rod
Dimension 1200 × 280 × 1000mm
Net Weight 50kg/pcs
Passage Width 550mm (One passage) - Arm length: 500mm
Passing Direction Single directional / Bi-directional
MCBF 5 million
510mm Arm Tripod Turnstile Barrier SUS304 Rod Solenoid Locking Hydraulic Buffer 0
Product Overview
Tripod turnstile series are intelligent passage management equipment researched, developed and produced by our company. The equipment integrates delicate mechanical transmission, microprocessor control, and various read/write techniques. It provides intelligent control and management of passages when equipped with different read/write devices.
The product features a stainless steel plate construction with pleasing appearance, durability, and corrosion resistance. The system includes standard electric interfaces for easy integration with magnetic card, bar code card, ID card, and IC card readers. This creates an orderly and secure passage system while preventing unauthorized access. A special fire control interface meets fire safety requirements, enabling rapid emergency access during evacuations.
Main Functions and Features
  • Mechanical drive unit with solenoid locking mechanism eliminates expensive electric motors and reduces maintenance costs
  • Automatic arm positioning: rotates to next idle position if moved beyond halfway, returns to current position if moved less than halfway
  • Built-in adjustable tensioner controls rotation force to minimize over-rotation
  • Configurable as bi-directional or uni-directional operation
  • Secure housing locked with special key to prevent tampering
  • Innovative mounting surface ensures simple and convenient installation
  • Compatible with various access control devices: IC/ID card readers, bar-code scanners, fingerprint systems
  • Automatic reset function cancels user authority if passage isn't completed within prescribed time (default: 5 seconds)
  • Automatic regulated hydraulic buffer device ensures quiet, impact-free operation
  • Auto-reposition function locks turnstile if passengers don't pass within regulated time period
  • Automatic arm drop when power is lost
Technical Specifications
Model SN-TT02
Brand SINOMATIC
Size/Stick Length 1200×280×980mm / 510mm (free of case)
Arm Length 500mm (standard)
Material SUS304 thickness (1.2mm)
Input Voltage 110V/220V ±10%
Driving Motor 24V
Failure-free Operation 5 million cycles
Weight 50kg
Traffic Speed 30 persons/minute
Flap Opening/Closing Time 0.2 seconds
Channel Width ≤600mm
Operating Temperature -30℃ to +70℃
Communication Interface Dry contact
Working Environment Indoor and outdoor
Why Choose SINOMATIC
  • Over 20 years of OEM/ODM experience in access control turnstiles and barriers
  • Prompt delivery with standard models kept in stock
  • OEM/ODM orders accepted to meet specific client requirements
  • Trial orders available for product testing before bulk purchasing
  • Comprehensive online technical support for business partners
  • Multiple transportation options: sea shipment, air cargo, or express delivery
  • Factory visits welcome on working days
