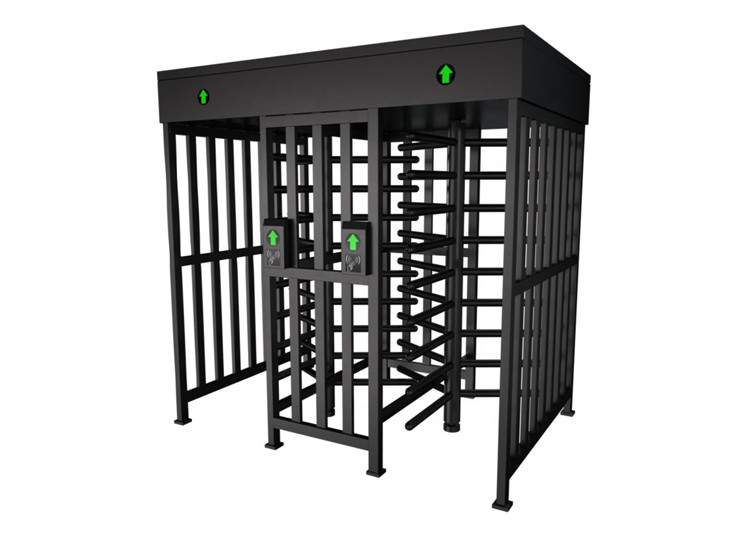

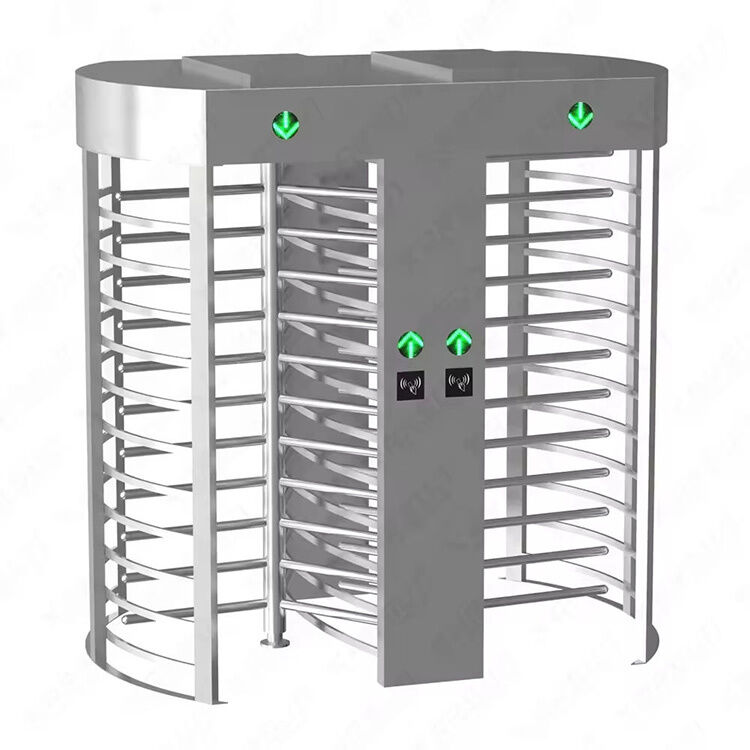

QR Reader Full Height Turnstile Bi Directional Dual Lane 1.5mm Thickness 2000mA

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FHT02
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 3,00pcs per month
Product Details
Input Signal 12VDC Level Or Dry Contact Signal Passing Speed 30 Person/min
Protection Grade IP55 Working Enviroment Indoor/outdoor
Color Silver, Blace, Red, Customized Structure 304 Stainless Steel
High Light

QR Reader Full Height Turnstile

,

1.5mm Thickness Full Height Turnstile

,

2000mA Full Height Barrier Gate

Leave a Message
Product Description

Dual Lane Bi-Directional Full Height Turnstile QR Scanning Reader Gate Access Control System



Product performance description



1. Through the built-in small press disk on the main control board, the running state of the programmable device.


2. Unique two-way anti-inversion function


3. anti-scour function, when the opening signal is not received, the channel bar will be locked automatically.


4. the channel is automatically unlocked after the power is cut off, and the function of free rotation can meet the

requirements of fire fighting, and the channel is locked and closed automatically after the power is turned on.


5. with automatic reset function, after opening the gate, when pedestrians do not pass within a specified period of time,

the system will automatically cancel the pedestrian traffic authority, and the reset time is 1S~60S adjustable (the default

time of the system is 10s).



TECHNICIAL SPECIFICATIONS



Dual Channel full height turnstile
Power voltage
AC220±10%,50Hz; AC110V±10%, 60Hz
Arm turn degree
90 degree or 120 degree
Driving voltage
DC24V
External Dimension
2300*1377*2240mm
Operation condition
-20℃~60℃
Material
304 drawing stainless steel
Material thickness
1.2 to 1.5mm
Humidity
≤95%;None-condensation
Turn direction
bidirectional or unidirectional(Optional)
Input
Open singal or 12V pulse>100ms
Work environment
Indoor,Outdoor
Working Current
≤2000mA
IP level
 IP54
Standard stick length
About 550mm
Channel width
 About 600 mm
Pass speed
≤35person/minutes
Service life
≥10 million times





QR Reader Full Height Turnstile Bi Directional Dual Lane 1.5mm Thickness 2000mA 0



Product Description



The high security full height turnstile gate is full soldering turnstile. The security turnstiles offers a reliable and efficient

method to ensure only authorized users are allowed access to each area of a building. It ensures vandal proof security

level to large variety of possible applications: stadiums, factories, parks, premises with highest security requirements etc.

Strength and durability is granted by robust fully welded design.



The full height turnstile is designed with unique, strong, and durable mechanical to provide unsupervised access control

for office or building which realize intelligent pedestrian control and management. .The impenetrable construction eliminates

any un-authorized access to restricted areas.



Full height security turnstiles is suitable for robust access control, well suited to exterior and interior use at football
stadiums, sport facilities and high risk sites. The Turboo turnstile full height gate is an economical version of a robust

turnstile. The full height gate has a light-weight steel dimensional construction with high quality, trouble-free and simple

operation. It’s ideal for high security applications where the fully automatic and unmanned identification of pedestrians

are required.



Optional Control & Interfaces



1. Card readers

2. Metal detection

3. Electronic/LCD counters

4. Fail-open or fail-secure locking

5. Push-button and wireless remotes

6. Manual key override both directions

7. Indicator lights





FEATURES OF SINOMATIC FULL HEGIHT TURNSTILE



1) Low noise mechanism core equipped, highly cost-performance



2) Sense positioning, reducing mechanical impact make lifetime longer



3) Operating efficiency, 1~2 seconds open & close



4) Lowest Noise : No matter in operating or outside control, Noise control under 30db



5) Self-checking and Alarm warning for maintain



6) Resetting: System cancel authorized pass if passenger delayed pass



7)Anti-following : prevent illegal passing



8)Anti-clamp :The wings will stopped during in external block, the wings reset again after default delay



9) The rotary wings will be locked automatically if the system do not receive open signal



10) Multi-passage for variety application demands , cover 99% needs on earth



11) Programmable signal separate control : pass time,pass speed etc. parameter



12)  Long-distance management through COMPUTER



13) Customize Options: LED display, Voice guide, Warning Lamps, Indicator Lights guide, Audible &Visible Alarm
