IP55 Steel Full Height Turnstile Mechanism Drive Sense Positioning
  • IP55 Steel Full Height Turnstile Mechanism Drive Sense Positioning
  • IP55 Steel Full Height Turnstile Mechanism Drive Sense Positioning
  • IP55 Steel Full Height Turnstile Mechanism Drive Sense Positioning

IP55 Steel Full Height Turnstile Mechanism Drive Sense Positioning

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FH02
Product Details
Material:
SS304
Material Thickness:
1.2 To 1.5mm
Overall Height:
2300mm
Passing Speed:
30 Person/min
Protection Grade:
IP55
Working Enviroment:
Indoor/outdoor
Highlight:

IP55 Steel Full Height Turnstile

,

Mechanism Drive Full Height Turnstile

,

Sense Positioning Pedestrian Turnstile Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,
Supply Ability
3,00pcs per month
Product Description

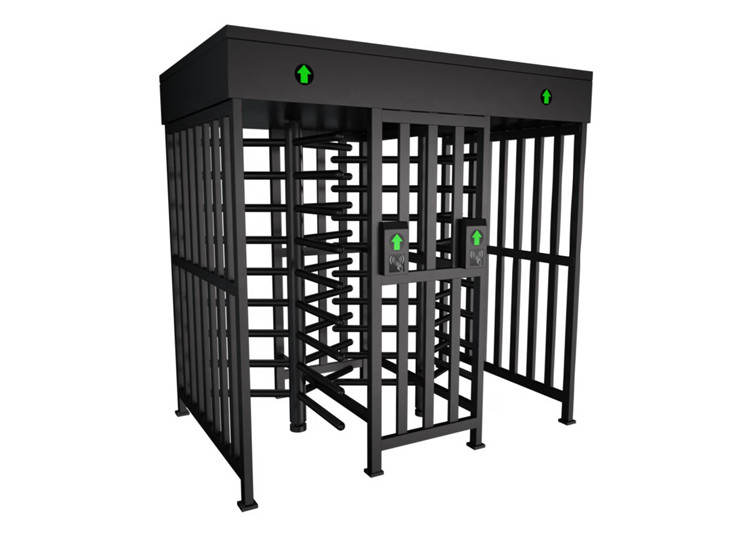

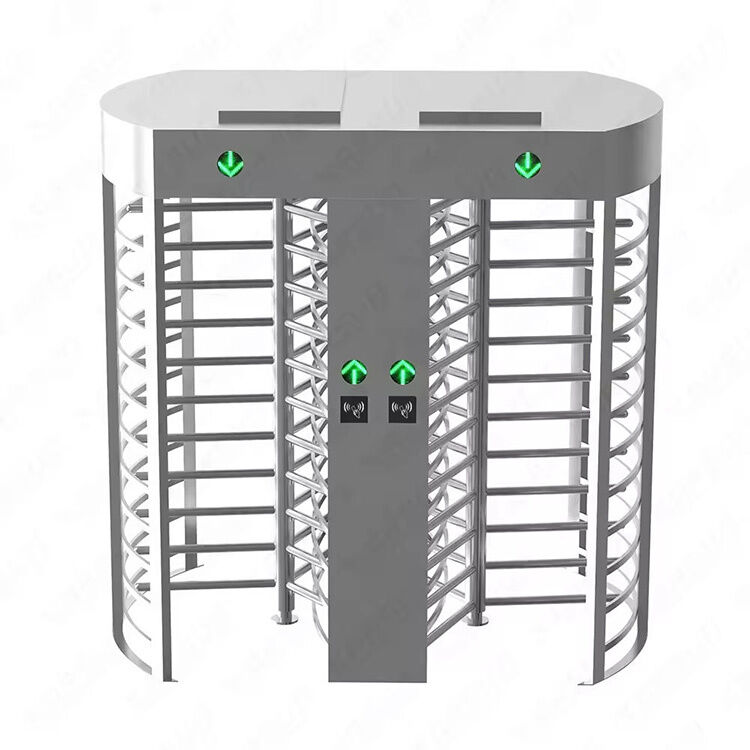

IP55 Steel Full Height Turnstile Mechanism Drive Sense Positioning
High Security Automatic Full Height Turnstile Gate
This fully welded, high-security full height turnstile gate provides reliable access control to ensure only authorized personnel can enter restricted areas. The robust construction offers vandal-proof security suitable for stadiums, factories, parks, and premises with the highest security requirements.
Designed with unique, durable mechanical components, this turnstile enables unsupervised access control for buildings and offices while providing intelligent pedestrian management. The impenetrable construction effectively prevents unauthorized access to restricted zones.
Ideal for robust access control applications, this turnstile is well-suited for both exterior and interior use at sports facilities, stadiums, and high-risk sites. The economical design features lightweight steel construction with high-quality, trouble-free operation, making it perfect for high-security applications requiring fully automatic pedestrian identification.
IP55 Steel Full Height Turnstile Mechanism Drive Sense Positioning 0
Product Specifications
Description Parameters
Lane Width 550-600mm
IP Rating IP54
Pass Speed 30-35 persons/min
Power Supply AC220V/110V, 50/60Hz
Drive Mode Mechanism drive (Motor drive optional)
Max Power Consumption 200W
Opening Time 0.6S
Humidity ≤90% coagulation free
Noise ≤50dB
Service Life 5,000,000 cycles
Outside Packing Plywood box
Working Environment -20°C~+60°C
Gross Weight 350KGS
Key Features
  • Low noise mechanism core for high cost-performance
  • Sense positioning reduces mechanical impact for extended lifespan
  • High operating efficiency with 1-2 second open/close cycles
  • Ultra-low noise operation under 30dB
  • Self-checking and alarm warning for maintenance
  • Automatic resetting for delayed passage
  • Anti-following protection prevents illegal passing
  • Anti-clamp safety feature with automatic reset
  • Automatic wing locking when no open signal is received
  • Multi-passage configurations for diverse application needs
  • Programmable signal control for pass time and speed parameters
  • Long-distance management through computer interface
  • Customizable options including LED displays, voice guidance, warning lamps, and audible/visible alarms
Optional Control & Interfaces
  • Card readers
  • Metal detection
  • Electronic/LCD counters
  • Fail-open or fail-secure locking
  • Push-button and wireless remotes
  • Manual key override both directions
  • Indicator lights
