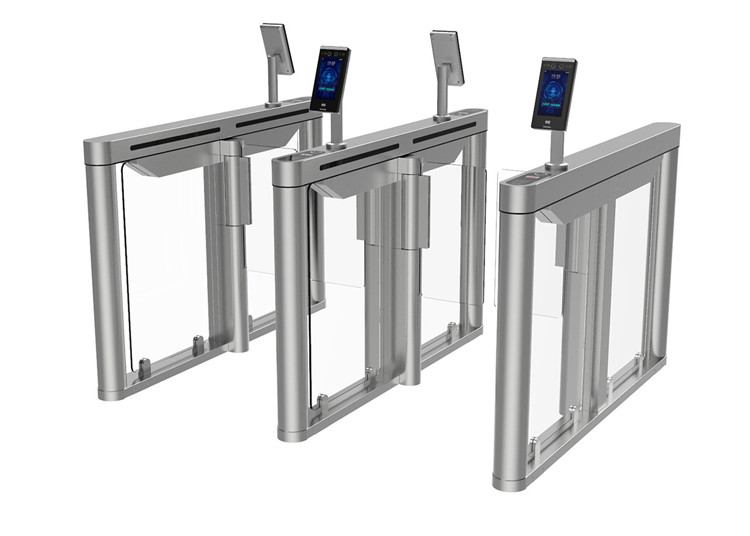

180 Degree Swing Gate Turnstile Brushless DC Pedestrian Control SS304 Acrylic

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HSG01
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 500 pcs per month
Product Details
Size 1400x150x980mm (can Be Customized) Passage Width 500mm To 900mm (can Be Customized)
Frame Material SS304 And Acrylic Flow Rate 30~35 Person/minute
Direction Single Or Bi-directional (optional) Swing Arm Rotation Angle 180 Degree
High Light

180 Degree Swing Gate Turnstile

,

SS304 Acrylic Swing Gate Turnstile

,

Brushless DC Swing Barrier Gate

Leave a Message
Product Description

Security Optical Face Recognition Pedestrian Control 180 Degree Swing Arm Rotation Speed Gate System



Product performance description



1. Problem self-recovery and corrective measure ability, convenient maintain and adjust.



2. Motherboard with high clean sound read chips which could broadcast in light of user’s requirment



3. Standard input/output port, meanwhile leaving a port space for installing RS485
communication, connect and manage the integrated systems through the remote PC.



180 Degree Swing Gate Turnstile Brushless DC Pedestrian Control SS304 Acrylic 0



BASIC SPECIFICATIONS



Size: 1200x150x980mm (can be customzied)
Supply Voltage: 110V-240V, 50HZ/60Hz;

Working Voltage: DC24V
Relative humidity: ≤95%, No Condensation
Unlock time: 0.2s
Material: 304 stainless steel
Arms material: 10mm acrylic
Motor: Brushless Servo Motor



PRODUCT FEATURES



1. The device adopts DC brushless motor, which supports at least 5 million normal passages.



2. The device adopts multiple pairs of infrared detection sensors, and adopts anti-tailing tracking control technology,

which can be passed by authorized personnel. When unauthorized personnel enter, an audible and visual alarm will

be issued.


3. The device integrates a voice module which can customize the voice broadcast content according to user

requirements.


4. The device uses LED to indicate the traffic direction and display the traffic status.


5. The device has anti-shock function. When there is intrusion, the door wing is automatically locked.


6. The equipment has self-test, self-diagnosis, automatic alarm function, sound and light alarm function including

illegal intrusion alarm, reverse intrusion alarm, trailing alarm etc.


7. The device has an automatic reset function. When the gate does not pass within the specified time after opening

the door, the system will automatically cancel the user's permission for the current pass and set the transit time.


8. The device supports flexible configuration of the access status (controlled, free traffic, no traffic) in the inbound

and outbound directions.


9. The device supports the memory mode which enables continuous and fast traffic.



TECHNICIAL SPECIFICATIONS



Model
SN-HSG01
Size
1200x150x1000mm
Arm material
10mm Acrylic
Passage Width 500mm ~900mm
Pass rate
30-35 persons/minute
Operating time 0.2 seconds
Power input AC100-240V,50/60HZ
Working humidity 30%~95%
Working temperature -40℃~+70℃
Working environment Indoor/outdoor with shelter
Communication interface RS485, Dry contact
Infrared sensor 4 pairs (default)
MCBF
5,000,000 Cycles







PRODUCT Application



Intelligent high speed gate ---can be compatible with IC card, ID card, barcode card, fingerprint reading card

recognition device used for staff, provide civilized, orderly access methods; effectively manage the access of

staff. Can be widely used in the station, wharf subway, factories, office building, hotel, clubs, intelligent

community, enterprises and institution that need intelligent access management.



FAQ



1. What is your products biggest advantage?
-------- DC Brushless Motor , no maintenance all the of life, No Attrition, Low Noise ,Hight Intelligence.


2. What is  your flap gates opening and closing time ?
-------- <=0.4s .


3. What is the Swing barrier gate Working environment ?
-------- They can be used indoor and outdoor(with shelter)


4. Can I customize it ?
-------- Yes, Welcome . We are the manufacturer , We are welcome OEM .


5. What's you warranty?
-------- 1 year time warranty .
