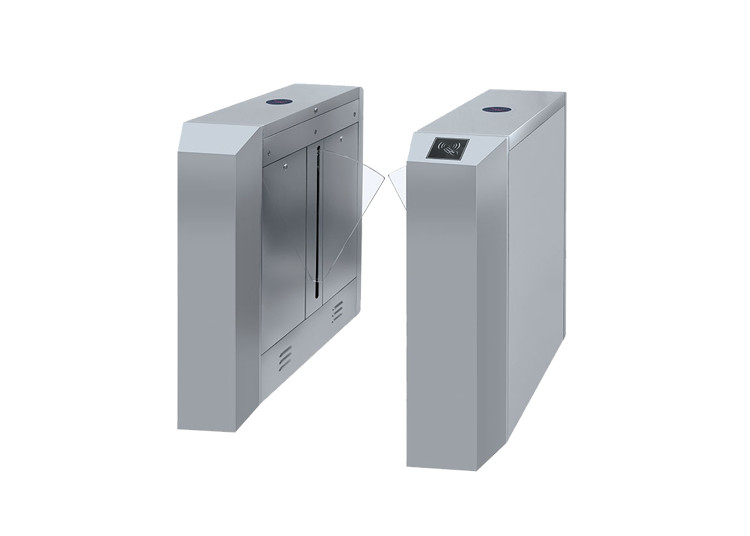

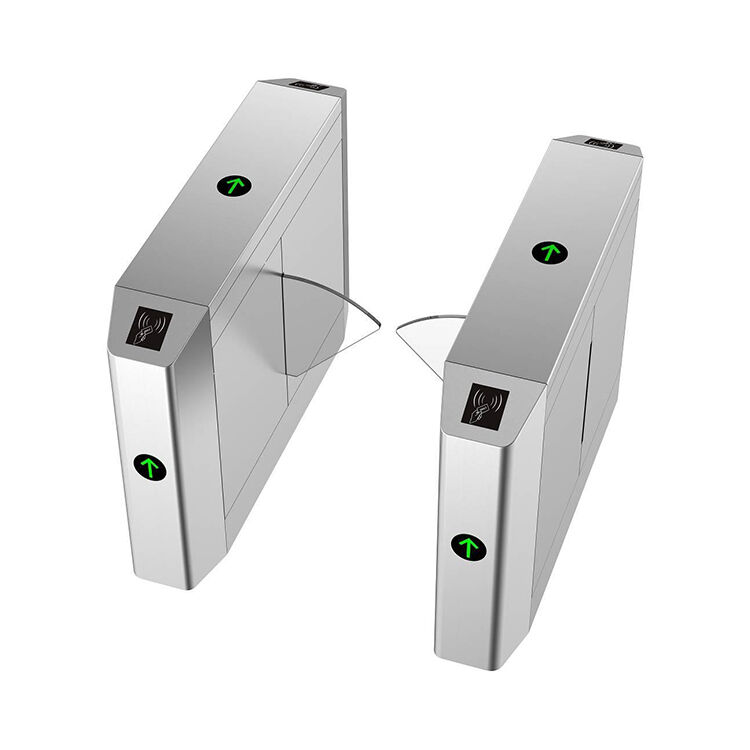

24V BLDC Flap Barrier Turnstile Wire Drawing AC100V With Face Recognition
  • 24V BLDC Flap Barrier Turnstile Wire Drawing AC100V With Face Recognition
  • 24V BLDC Flap Barrier Turnstile Wire Drawing AC100V With Face Recognition
  • 24V BLDC Flap Barrier Turnstile Wire Drawing AC100V With Face Recognition

24V BLDC Flap Barrier Turnstile Wire Drawing AC100V With Face Recognition

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FB01
Product Details
Lane Width:
600mm
Surface Treatment:
Wire Drawing
Power Supply:
AC100V~240V ; DC24V
Flap Opening / Closing Time:
1s
Working Temperature:
-20°C~60°C
Motor Type:
24V BLDC Motor
High Light:

Wire Drawing Flap Barrier Turnstile

,

24V BLDC Flap Barrier Turnstile

,

AC100V Pedestrian Flap Barrier

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
3,000pcs per month
Product Description

Bi-Directional Access Control System Automatic Flap Barrier Turnstile Gate With Face Recognition



PRODUCT DESCRIPTION



A flap barrier turnstile is used when both heightened security and electronic optical turnstile access control are desired.

These turnstiles provide a barrier to entry with a very pleasing and inviting appearance. A flap barrier turnstile is often

used in office buildings and reception areas, lobbies, modern subway and transit stations, and other high-end building

entrances.



Flap barrier consists of cabinet,reader module,main control module,motor&driver module,infrared photocell,alarm device,

limit switch and voice prompt device etc., can be used for the applications like apartment, factory, museum, station and

ferry terminal etc.. Together with intelligent card reader/writer and management software, they are combined as intelligent

flap barrier management system, can fulfill the functions like entrance control, time attendance, pedestrian volume control

and tolling etc.



Quick Detail



Place of Origin:Guangdong, China (Mainland )



Brand Name:SINOMATIC



Model Number:SN-FB01



Power Supply:AC100V~240V



Temperature:-35 to 65 degrees



Humidity:<95%, without concretion



Passage Width:<=600mm



Passing Speed:30~40 persons/min



Power Consumption:100W



Input Interface:+12V electrical signal or impulse signal



Communication Interface:RS485 (Distance:<=1200m)



Material:304 stainless steel



Dimension:1200*280*980mm



24V BLDC Flap Barrier Turnstile Wire Drawing AC100V With Face Recognition 0



MAIN FUNCTION AND FEATURES



1. Fault detection and alarm functions, easy to use and maintenance.



2. The running status can be programmed and controlled with the built-in keyboard on the main board.



3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop

working automatically within the prescribed time and reset again after the default delay (till fully reset).



4. Anti-breakthrough function. The gate is locked automatically until opening signal received.



5. Synchronization functions (for dual gate equipment).



6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds),

the system will cancel the authority of the current user automatically.



7. Gate can be set as normally open or normally closed.



8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller

needed).



9. Direction can be set as single-direction or bi-direction.



10. LED direction indicator.



11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.



12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.



13. Counter function (optional).



14. Support infrared photocell for anti-pinch and reset function.



PRODUCT SPECIFICATIONS



Product Name
Automatic Flap Barrier
Model
SN-FB01
Material
stainless steel 304 (Cover:1.5mm Cabinet:1.2mm)
Size
1200*300*990mm
Pass width
600mm
Passage direction
Unidirectional/bi-directional
Pass rate
30~40 persons/min
Infrared Sensor
4 pairs(default)
Power input
AC100-240V,50/60HZ
Working voltage
24V
Working humidity
≤95%
Working temperaturer
-30℃-+70℃
working enviroment
Indoor/outdoor
Communitcation interface
RS232,RS485,TCP/IP
Access control system
ID/IC card ,fingerprint,face recognition,Barcode/QR code,phone app,ESD system,visitor system,etc
