Home > Products > Flap Barrier Gate >
Wire Drawing Automatic Flap Barrier Glass Retractable LED Indicator
  • Wire Drawing Automatic Flap Barrier Glass Retractable LED Indicator
  • Wire Drawing Automatic Flap Barrier Glass Retractable LED Indicator
  • Wire Drawing Automatic Flap Barrier Glass Retractable LED Indicator
Wire Drawing Automatic Flap Barrier Glass Retractable LED Indicator

Wire Drawing Automatic Flap Barrier Glass Retractable LED Indicator

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FB01
Product Details
Surface Treatment:
Wire Drawing
Power Supply:
AC 100V~240V
Flap Opening / Closing Time:
1s
Working Temperature:
-20°C~60°C
Framework:
SS304
Barrier Material:
10mm Thickness Acrylic/PU Foam
Highlight:

Wire Drawing Automatic Flap Barrier

,

Glass Retractable Automatic Flap Barrier

,

LED Indicator Flap Barrier Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
3,000pcs per month
Product Description

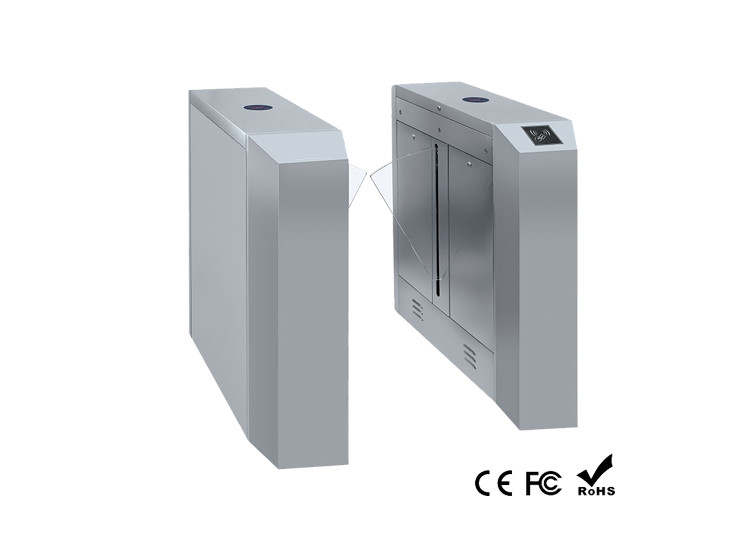

Wire Drawing Automatic Flap Barrier Glass Retractable LED Indicator
Lane Width 600mm Card Reader Integrated Entrance Retractable Flap Barrier Gate
Our automatic flap barrier provides a reliable and efficient solution to ensure only authorized personnel gain access to secured areas. The integrated direction indicator displays current access status and guides pedestrians for correct and smooth passage.
The flap barrier gate is highly compatible with various access control systems, including facial recognition with temperature check devices, fingerprint scanners, QR code readers, RFID systems, and more.
Wire Drawing Automatic Flap Barrier Glass Retractable LED Indicator 0
Access Control Integration
We offer OEM and ODM services along with comprehensive biometric devices including IC/ID card readers, fingerprint scanners, QR code scanners, and face recognition cameras.
Technical Specifications
Product Name Automatic Flap Barrier
Model SN-FB01
Material Stainless Steel 304 (Cover: 1.5mm Cabinet: 1.2mm)
Size 1200×300×990mm
Pass Width 600mm
Passage Direction Unidirectional/Bi-directional
Pass Rate 30-40 persons/minute
Infrared Sensor 4 pairs (default)
Power Input AC100-240V, 50/60Hz
Working Voltage 24V
Working Humidity ≤95%
Working Temperature -30℃ to +70℃
Working Environment Indoor/Outdoor
Communication Interface RS232, RS485, TCP/IP
Access Control System ID/IC card, fingerprint, face recognition, barcode/QR code, phone app, ESD system, visitor system, etc.
Applications
  • Banks and insurance companies
  • Governmental and institutional establishments
  • Office buildings, registered offices, administrative sites
  • Schools, universities and colleges
  • Sensitive sites:nuclear, pharmaceutical, computer centers
  • Airports
Main Functions and Features
  • Fault detection and alarm functions for easy use and maintenance
  • Programmable running status with built-in keyboard on main board
  • Mechanical anti-pinch function with automatic reset capability
  • Anti-breakthrough function with automatic locking until opening signal received
  • Synchronization functions for dual gate equipment
  • Automatic reset function cancels authority after prescribed time (default 5 seconds)
  • Configurable as normally open or normally closed
  • Compatible with various card readers: IC/ID cards, bar codes, fingerprints (access controller needed)
  • Direction configurable as single-direction or bi-directional
  • LED direction indicator
  • Automatic opening when power off and closing when power on for fire safety compliance
  • Alarm function for illegal intrusion and reverse intrusion detection
  • Optional counter function
  • Infrared photocell support for anti-pinch and reset functions

Tags:

automatic flap barrier,

waist high turnstile,

flap turnstile
