Thickness 1.2mm Turnstile Barrier Gate Gym Automatic Reset 60Hz

Gym access control manual/semi-automatic/automatic security tripod turnstile

Tripod Turnstiles offer a reliable and efficient method to ensure only authorized users are allowed access to each

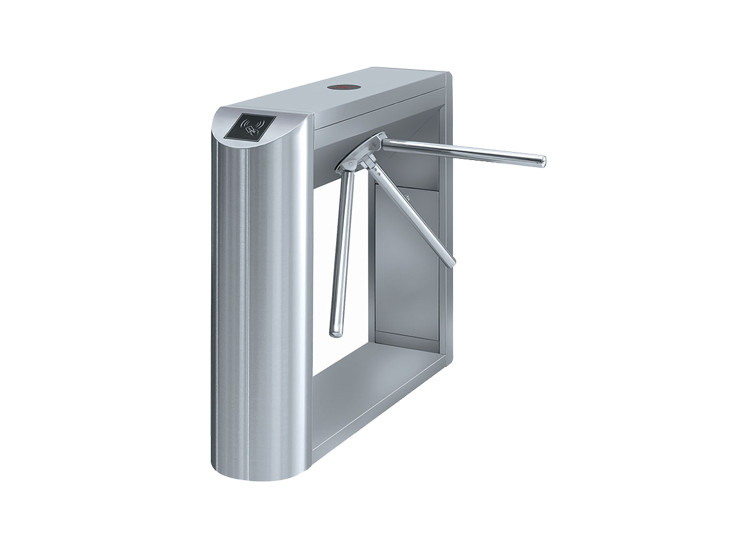

area of a building. The SINOMATIC SN-TT03 three arm turnstile is an attractive tripod turnstile that is easily capable

of handling high volume and abusive conditions.

The compact unit makes it simple to construct a multiple lane set-up while the variety in colors allows you to match

this turnstile perfectly to your lobby or branding.

TECHNICIAL SPECIFICATIONS

MAIN FUNCTIONS AND FEATURES

1. Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and

reduce maintenance cost.

2. If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will

auto-rotate back to the current idle position.

3. Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed

lightly to rotate therefore even elderly or children are able to use the turnstile.

4. Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid

tampering.

5. Innovative and unique mounting surface ensures simple and convenient installation for system integrator.

6. Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc.

(Access controller needed)

7. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds),

the system will cancel the authority of the current user automatically.

8. The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and

impact when running.

9. Process: Laser cutting, CNC bending, fine grinding

10. Mechanical structure: Electromagnet unlocking, hydraulic cushioning device combined with high reliability

design

11. Circuit board: Industrial grade design, suitable for all kinds of places with large dust, heavy moisture and

large

temperature changes.

12. Travel switch: Imported durable travel switch

13. Buffering device: Accurate hydraulic buffer, convenient adjustment of force, stable buffering force, no

change due

to climate and temperature

14. Light indicator: After brushing the valid card, gives the green arrow the traffic indication, concise and clear;

after the illegal card is swiped, the product immediately displays the red cross warning sign.

Why choose us:

1. Our Factory has 20 years OEM/ODM experiences in the line of access control turnstile and barrier.

2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.

3. We accept OEM/ODM orders to meet the requirements of clients.

4. Trial order is acceptable. Clients can buy sample and test it before bulk order.

5. Online technical support makes it carefree to be our business partner.

6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
