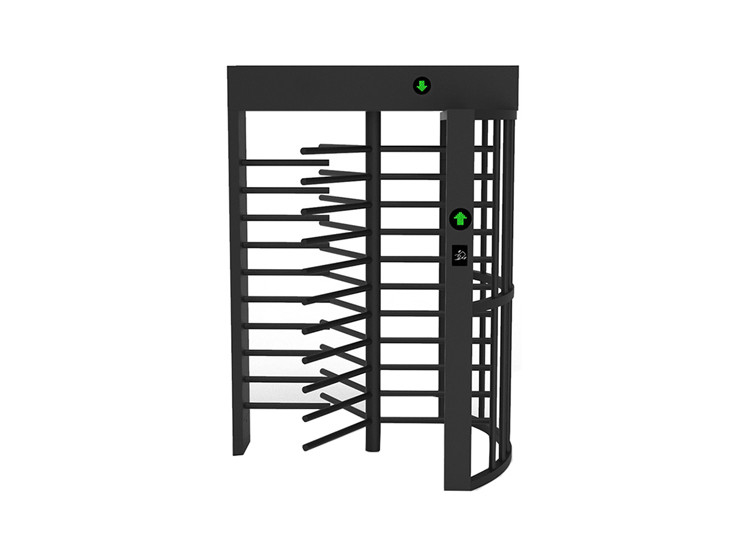

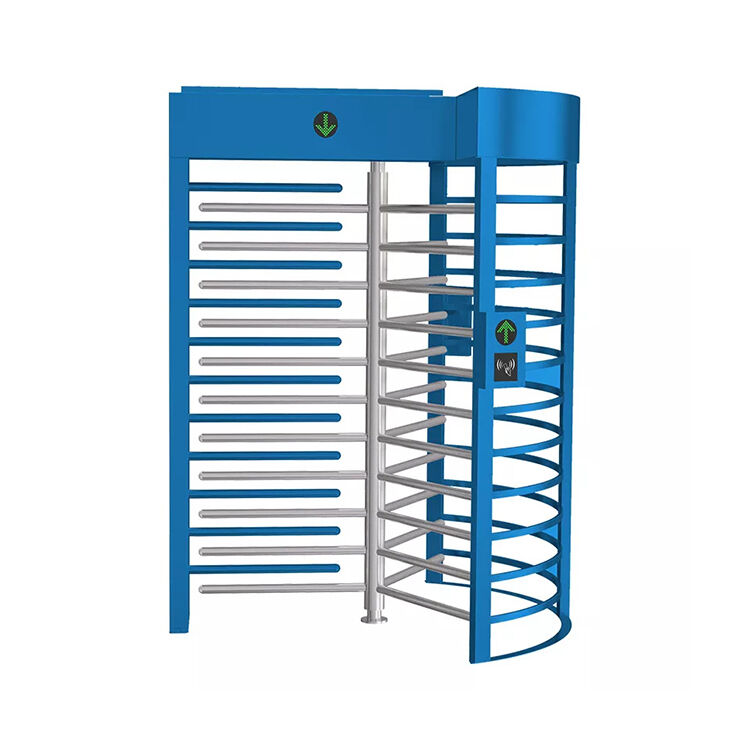

SS316 Full Height Turnstile Pedestrian Revolving 600mm Channel Mild Steel

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FHT01
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 3,00pcs per month
Product Details
IP Level 54 Passsage Width ≥600mm
Direction Bi-directional Counter Optional
Material Mild Steel/SS304/SS316 Channel Width 600mm (default)
High Light

SS316 Full Height Turnstile

,

600mm Channel Full Height Turnstile

,

Pedestrian Revolving Full Height Turnstile

Leave a Message
Product Description

Face Recognition Access Control RFID HID Reader Full Height Turnstile Gate



PRODUCT DESCRIPTION



Full height security turnstile is made of Mild steel or 304 brushed stainless steel which is high temperature and corrosion

resistance, durable dustproof, and rainproof design. It is often used for high-security access control solutions.



Full height security turnstiles is suitable for robust access control, well suited to exterior and interior use at football
stadiums, sport facilities and high risk sites. The SINOMATIC turnstile full height gate is an economical version of a

robust turnstile. The full height gate has a light-weight steel dimensional construction with high quality, trouble-free and

simple operation. It’s ideal for high security applications where the fully automatic and unmanned identification of

pedestrians are required



Using the standard electrical interface, compatible with ID/IC card, fingerprint, face recognition, an infrared detector,

temperature controller, Barcode/QR code, phone app, ESD system, visitor system, etc





SS316 Full Height Turnstile Pedestrian Revolving 600mm Channel Mild Steel 0



TECHNICIAL SPECIFICATIONS



Single Channel full height turnstile
Power voltage
AC100V~240V
Arm turn degree
120°/ 90°
Driving voltage
DC24V
Operation condition
-15℃~60℃
Material
Mild steel /304 drawing stainless steel
Cover thickness
1.5mm
Humidity
≤95%;None-condensation
Turn direction
bidirectional or unidirectional(Optional)
Input
Open singal or 12V pulse>100ms
Work environment
Indoor/Outdoor
Working Current
≤2000mA
IP level
IP54
Standard barrier length
550mm
Channel width
600mm
Pass speed
≤35 person/minute
Service life
≥5 million times



MAIN FUNCTION AND FEATURES



1. Full Height Turnstiles is often used for high-security access control solutions.



2. The body material is mild steel with painting(color optional) 304stainless steel which is anti-rust and durable and

has high resistance.


3. Full Height Pedestrian Turnstiles are ideal for both indoor and outdoor settings.


4. The turnstile gate will unlock(default)  or lock (optional) automatically when the power is off, Very safe to meet

fire-control passage requirements.


5. With anti-reverse function, stop reversed direction.


6. The mechanism is equipped with a high-quality hydraulic damper With this device, there is very low noise when running

and it is more smooth.


7. Self-test function, when power is on, the gate system will restore automatically.


8. The high-security device, The full height turnstiles is the high-security gate compared with other types of turnstiles.


9. Single directional or Bi-directional is optional.


10. With LEDdirectional indicator light on both entry and exit.


11. Standard connection interface which is easy Compatible with all third-party access control systems.


12. The size/design of the gate can be customized based on the client`s drawing.


13. Optional function Can be controlled by a remote controller and managed by a computer directly if it comes with an

access control system.


14. Can be adjusted to meet the requirements in different places.



PACKING LIST


included one control board,power board, mechanism, arms and other parts needed for installation.




SINGLE LANE FULL HEIGHT TURNSTILE SN-FHT01



*Full height turnstile SN-FHT01 is designed to provide entry access control solutions in places that need high security,

such as prison, stadium and construction site.



*The system is single-door type with single/bi-directional passage control.



*This model is stronger , and passing width is wider, 610mm.



*It’s idea for both indoor and outdoor, as whole body is made of finished and brushed stainless steel, which is waterproof,

anti-corrosion and rigid.



*There are LED lights at front on both top cover and body side to indicate entry is accepted or denied.



*Arm is 120° rotors or 90°rotors for selected.



*It’s with enough space availability to firmly embed the access control device (e.g.: RFID, fingerprint device, display, counter,

push button, coin insert, barcode/QR reader).
