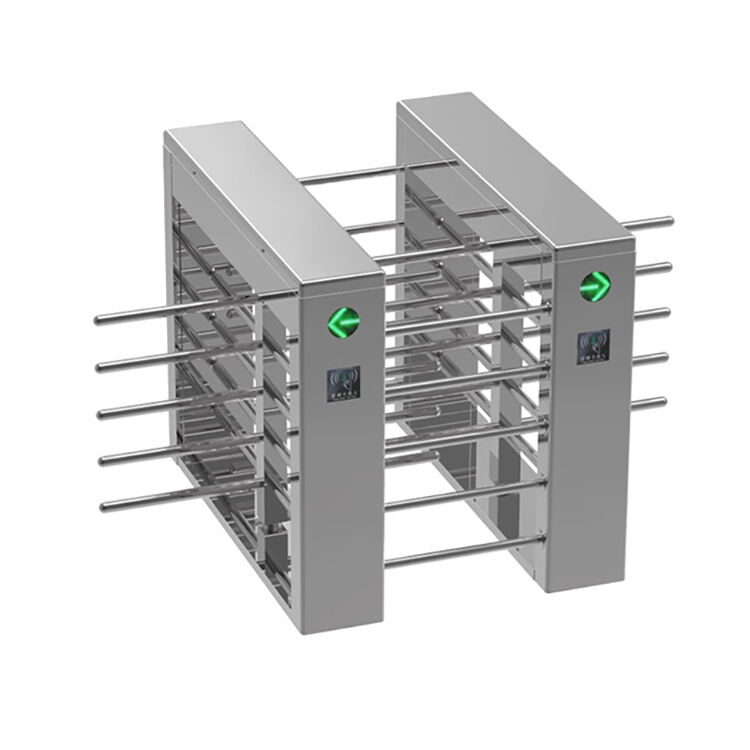

Single Directional Half Height Turnstile Anti Tailing Hydraulic Buffer

4 Metal Rods Half Height Blocking Body Mechanical Anti Tailing Design Half Height Barrier Gate

PRODUCT DESCRIPTION

Half height turnstile is a kind of pedestrian turnstile gate with only half the height of the blocking body. The blocking

body of the turnstile gate is generally composed of 3 or 4 metal rods. According to the height of the brocking rod, the

turnstile gate is divided into full height turnstile and half height turnstile, and the full height turnstile gate is more

widely used. Half height turnstile adopts a mechanical anti tailing design, which can effectively realize single-person

traffic, which means, only one person can pass at a time. Compared with the tripod turnstile gate, half height turnstile

has higher safety and reliability.

Structural design of half-height turnstile: the blocking rod above the half-height turnstile adopts a removable structural

design, which is easy to install and transport.

Advanced and intelligent design

Half-height turnstile adopts a mechanical anti tailing design to effectively control only one person at a time. The

advanced mechanical structure is adopted. In standby mode, the blocking rod is locked to prevent the illegal passage

of pedestrians. When a legal door opening signal is received in one direction, within the allowable passage time,

pedestrians entering the passage from the opposite direction and pushing the gate rod will be regarded as reverse

passage, and the blocking rod in this direction will be locked to prevent pedestrians from the reverse passage.

TECHNICAL SPECIFICATIONS

MAIN FUNCTION AND FEATURES

1. The whole system runs smoothly, long-life performance, high operation dependability and fast response.

2. The mechanism is equipped with an automatic regulated hydraulic buffer device. No noise and impact when

running.

3. Self-test function, when power on, system restoration automatic.

4. Dual-bearing device, keeping the gate in balance when there is external force.

5. Single directional or Bi-directional is selectable.

6. LED indicator supported

7. Automatic reset function: when Full Height Turnstile receives an open single, but passenger do not pass

through the hallway within a specific time (default 5s), turnstile arm will lock automatically. Limit passing time

(01-60 seconds), passing time can be set on Full Height Turnstile circuit board.

8. When power off, turnstile lane will be free to pass, complying with fire safety requirements.

9. The rotary wings will be locked automatically if the system do not receive IR signal

10. Multi-passage for variety application demands ,Cover 99% needs on earth

11. Programmable signal separate control : pass time,pass speed etc. parameters
