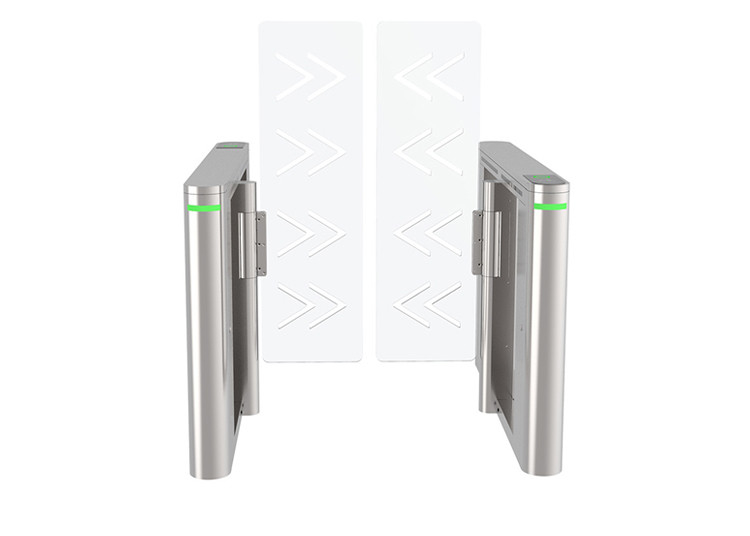

10mm Thickness Pedestrian Barrier Gate Transparent Acrylic For Hotel Lobby
  • 10mm Thickness Pedestrian Barrier Gate Transparent Acrylic For Hotel Lobby
  • 10mm Thickness Pedestrian Barrier Gate Transparent Acrylic For Hotel Lobby
  • 10mm Thickness Pedestrian Barrier Gate Transparent Acrylic For Hotel Lobby

10mm Thickness Pedestrian Barrier Gate Transparent Acrylic For Hotel Lobby

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HSG01
Product Details
Supply Voltage:
AC 100V ~240V; DC24V
Arm Material:
10mm Thickness Acrylic
Housing Material:
SS304, Acrylic
Flow Rate:
30~35 Person/minute
Panel Material:
Acrylic (color Optional)
Motor:
Motor
High Light:

10mm Thickness Pedestrian Barrier Gate

,

Transparent Acrylic Pedestrian Barrier Gate

,

Hotel Lobby Automatic Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
500 pcs per month
Product Description

Super Slim Cabinet 10mm Thickness Transparent Acrylic Barrier Speed Gates For Hotel Lobby





BASIC SPECIFICATIONS



Size: 1200x150x980mm (can be customzied)
Supply Voltage: 110V-240V, 50HZ/60Hz;

Working Voltage: DC24V
Relative humidity: ≤95%, No Condensation
Unlock time: 0.2s
Material: 304 stainless steel
Arms material: 10mm acrylic
Motor: Brushless Servo Motor



PRODUCT DESCRIPTION



THE SPEED GATES is a high-end intelligent swing barrier turnstile product from SINOMATIC, which can fully detect

the passing situation of the human body.



This speed gates body material is 304 stainless steel which is anti-rust and durable and high resistance.



Anti-tag after, anti-hit against, RS485 Communication, DC Brushless motor, This speed gates turnstile Compatible with

all kinds of Access Control Systems.



These speed gates security turnstiles are widely used in the bus station, port, subway, factory, mansion, residential area,

hotel, company, and so on any place that requires a smart flow control.



It has the function of fault self-check and alarm prompt, which is convenient for users to maintain and use.



It can be connected with any control signal or button and can be output by any control device to realize one-way and

two-way control. The one-way and two-way free passage can be set arbitrarily.



When the equipment is powered on or restarted, it has the function of fault self-checking, which is convenient for users

to maintain and use. High-intensity traffic light status indication. If someone is following, the gate will automatically start

reverse thrust locking and give an alarm. Connect the fire alarm signal.







PRODUCT FEATURES



1. The device adopts DC brush-less motor, which supports at least 5 million normal passages.



2. The device adopts multiple pairs of infrared detection sensors, and adopts anti-tailing tracking control technology,

which can be passed by authorized personnel. When unauthorized personnel enter, an audible and visual alarm will

be issued.


3. The device integrates a voice module which can customize the voice broadcast content according to user

requirements.


4. The device uses LED to indicate the traffic direction and display the traffic status.


5. The device has anti-shock function. When there is intrusion, the door wing is automatically locked.


6. The equipment has self-test, self-diagnosis, automatic alarm function, sound and light alarm function including

illegal intrusion alarm, reverse intrusion alarm, trailing alarm etc.


7. The device has an automatic reset function. When the gate does not pass within the specified time after opening

the door, the system will automatically cancel the user's permission for the current pass and set the transit time.


8. The device supports flexible configuration of the access status (controlled, free traffic, no traffic) in the inbound

and outbound directions.


9. The device supports the memory mode which enables continuous and fast traffic.



TECHNICIAL SPECIFICATIONS



Model
SN-HSG01
Size
1200x150x1000mm
Arm material
10mm thickness Acrylic
Passage Width

600mm ~900mm(or customized)

Pass rate
30-35 persons/minute
Operating time 0.2 seconds
Power input AC100-240V,50/60HZ
Working humidity 30%~95%
Working temperature -40℃~+70℃
Working environment Indoor/outdoor with shelter
Communication interface RS485, Dry contact
Infrared sensor 4 pairs (default)
MCBF
5,000,000 Cycles







PRODUCT Application



Intelligent high speed gate ---can be compatible with IC card, ID card, barcode card, fingerprint reading card

recognition device used for staff, provide civilized, orderly access methods; effectively manage the access of

staff. Can be widely used in the station, wharf subway, factories, office building, hotel, clubs, intelligent

community, enterprises and institution that need intelligent access management.



10mm Thickness Pedestrian Barrier Gate Transparent Acrylic For Hotel Lobby 0



FAQ



1. What is your products biggest advantage?
-------- DC Brushless Motor , no maintenance all the of life, No Attrition, Low Noise ,Hight Intelligence.


2. What is  your flap gates opening and closing time ?
-------- <=0.4s .


3. What is the Swing barrier gate Working environment ?
-------- They can be used indoor and outdoor(with shelter)


4. Can I customize it ?
--------Yes, Welcome . We are the manufacturer , We are welcome OEM .


5. What's you warranty?
-------- 1 year time warranty .
