BLDC Motor Flap Gate Turnstile DC24V Acrylic Fingerprint Bi Directional
  • BLDC Motor Flap Gate Turnstile DC24V Acrylic Fingerprint Bi Directional
  • BLDC Motor Flap Gate Turnstile DC24V Acrylic Fingerprint Bi Directional
  • BLDC Motor Flap Gate Turnstile DC24V Acrylic Fingerprint Bi Directional
  • BLDC Motor Flap Gate Turnstile DC24V Acrylic Fingerprint Bi Directional

BLDC Motor Flap Gate Turnstile DC24V Acrylic Fingerprint Bi Directional

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FB01
Product Details
Driving Motor:
DC24V
Motor Type:
BLDC Motor
Power Supply:
110 V/220V; 50/60 Hz
Working Temperature:
-20°C~60°C
Flap Material:
Acrylic, PU Foam
Flap Width:
270 Mm
Highlight:

BLDC Motor Flap Gate Turnstile

,

DC24V Acrylic Flap Gate Turnstile

,

Bi Directional Retractable Flap Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
3,000pcs per month
Product Description

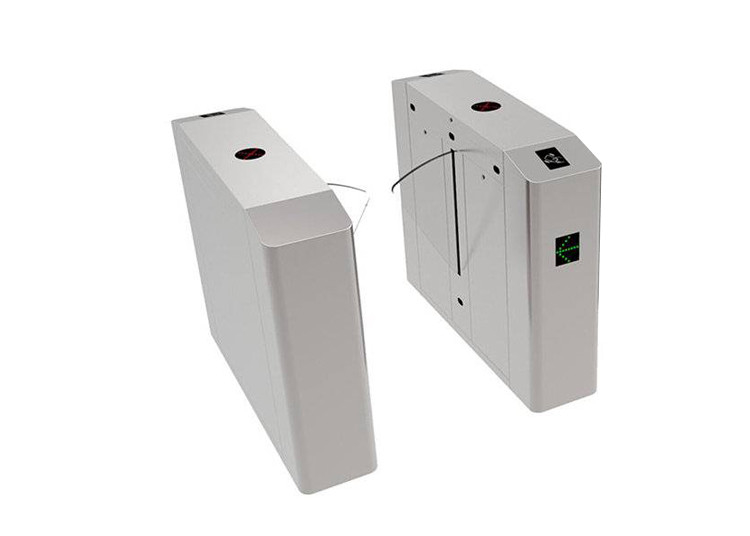

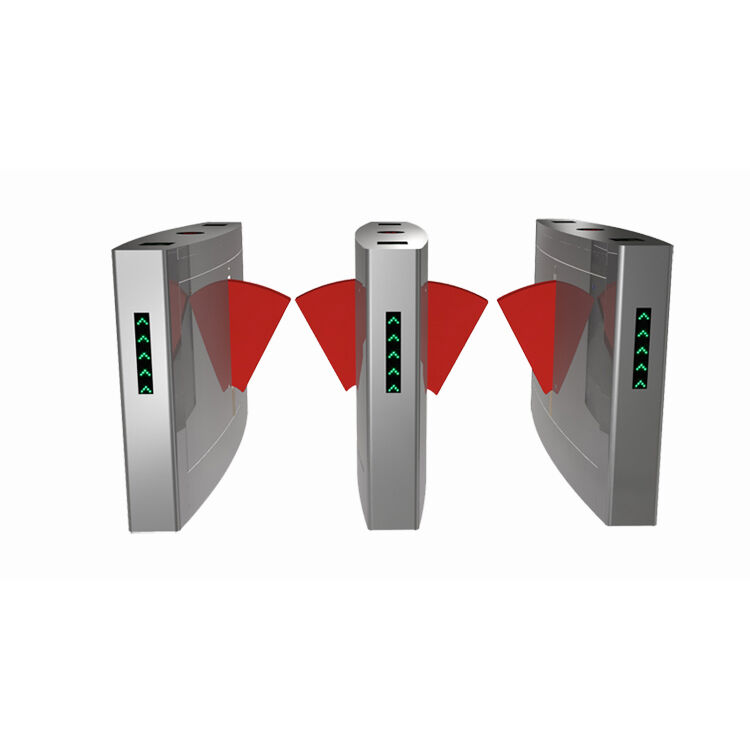

BLDC Motor Flap Gate Turnstile DC24V Acrylic Fingerprint Bi-Directional
High-Performance Pedestrian Access Control Solution
This fingerprint verification flap gate turnstile is engineered for high pedestrian traffic environments including metro stations, stadiums, factories, and commercial buildings. The bi-directional access control system ensures secure and efficient personnel management through advanced authentication technologies.
Flap barrier automated turnstiles provide ideal access control solutions for metro stations, stadiums, factories, and commercial buildings. These systems are widely adopted in building entrances and construction sites to effectively track staff and visitors. Only authorized users can access specific areas through the secure flap barrier system. Multiple verification technologies are available including RFID, fingerprint verification, face recognition with temperature check, and vein verification for maximum flexibility.
Product Specifications
Model SN-FB01
Size 1200*300*1000mm
Material 1.2mm thickness SUS304
Pass Width 600mm
Passage Direction Single directional/Bi-directional
Pass Rate 30-40 persons/minute
Operating Time 1 second
Power Input AC100-240V, 50/60HZ
Working Voltage 24V
Working Humidity 5%~95%
Working Temperature -40℃~+70℃
Working Environment Indoor/outdoor
Communication Interface RS485, Dry contact
BLDC Motor Flap Gate Turnstile DC24V Acrylic Fingerprint Bi Directional 0
Key Features and Functions
  • Fault detection and alarm functions for easy maintenance
  • Programmable running status with built-in keyboard on main board
  • Mechanical anti-pinch function with automatic reset capability
  • Anti-breakthrough security with automatic locking
  • Synchronization functions for dual gate equipment
  • Automatic reset function with configurable timing
  • Configurable normally open or normally closed operation
  • Compatibility with multiple card readers: IC/ID cards, barcodes, fingerprints
  • Single-direction or bi-directional operation modes
  • LED direction indicator for clear user guidance
  • Fire safety compliance with auto-open during power failure
  • Alarm functions for illegal and reverse intrusion detection
  • Optional counter function for traffic monitoring
  • Infrared photocell support for anti-pinch and reset functions
The automatic flap barrier turnstile provides reliable and efficient access control, ensuring only authorized users can access designated areas. Direction indicators display current access status and guide pedestrians for correct and smooth passage. This highly integrated fingerprint turnstile supports various access control systems including facial recognition, QR readers, and RFID systems.
