Lane 600mm Retractable Flap Barrier Card Reader Integrate Entrance Wire DC24V

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FB01
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T or western Union
Supply Ability 3,000pcs per month
Product Details
Size 1200 * 280 * 980 Mm Lane Width 600mm
Surface Treatment Wire Drawing Power Supply 110 V/220V; 50/60 Hz
Flap Opening / Closing Time 1s Working Temperature -20°C~60°C
High Light

Lane 600mm Retractable Flap Barrier

,

Wire Drawing Retractable Flap Barrier

,

DC24V Flap Barrier Turnstile

Leave a Message
Product Description

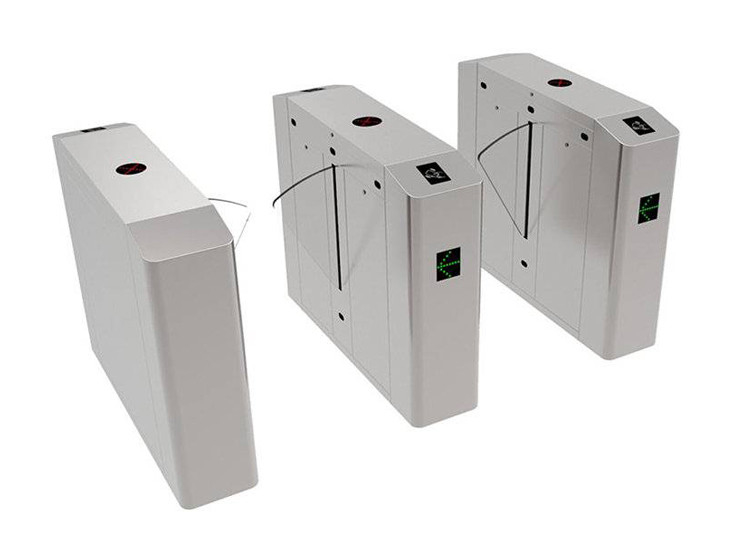

Lane Width 600 Mm Card Reader Integrate Entrance Retractable Flap Barrier Gate



PRODUCT DESCRIPTION



Flap barrier offers a reliable and efficient method to ensure only authorized users are allowed access to each area

of a building. A direction indicator showed that pedestrian access to the current status of, and guide pedestrian correct

and smooth passage.



The flap barrier gate is high integrated for every access control system, such as facial recognition with temperature check

device, fingerprints, QR code reader, RFID systems, etc.



Lane 600mm Retractable Flap Barrier Card Reader Integrate Entrance Wire DC24V 0



Access control integration



We can provide OEM and ODM services. We also provide biometric devices, such as IC/ID card reader, fingerprint

scanner, QR code scanner, face recognition camera, and so on.



Application



Sinomatic full automatic flap barrier gate are widely used in the following sites:

  • Banks, insurance companies
  • Governmental and institutional establishments
  • Office buildings, registered offices, administrative sites...
  • Schools, universities and colleges
  • Sensitive sites : military, nuclear, pharmaceutical, computer centers...
  • Airports

MAIN FUNCTION AND FEATURES



1. Fault detection and alarm functions, easy to use and maintenance.



2. The running status can be programmed and controlled with the built-in keyboard on the main board.



3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop

working automatically within the prescribed time and reset again after the default delay (till fully reset).



4. Anti-breakthrough function. The gate is locked automatically until opening signal received.



5. Synchronization functions (for dual gate equipment).



6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds),

the system will cancel the authority of the current user automatically.



7. Gate can be set as normally open or normally closed.



8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed).



9. Direction can be set as single-direction or bi-direction.



10. LED direction indicator.



11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.



12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.



13. Counter function (optional).



14. Support infrared photocell for anti-pinch and reset function.



Specifications of Flap Barrier Gate



Item

Specification

Power supply

AC220±10%V 50Hz/AC110±10% 60Hz

Access device input voltage

Dry contact or 12V electrical level signal

or > 100ms 12V impulse signal, driving current > 10mA

Motor voltage

DC24V (brush motor)

Max flow rate

25 to 30 person per minute

Flap opening / closing time

1s

Reset time when power on

3s

Working temperature

-20°C~60°C
