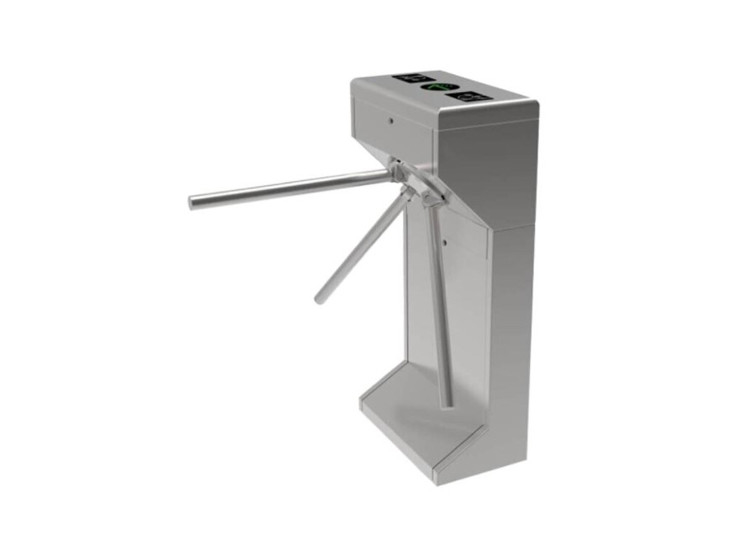

550mm Lane Tripod Turnstile Gate 120 Degree Rotation Stainless Steel Vertical
  • 550mm Lane Tripod Turnstile Gate 120 Degree Rotation Stainless Steel Vertical
  • 550mm Lane Tripod Turnstile Gate 120 Degree Rotation Stainless Steel Vertical

550mm Lane Tripod Turnstile Gate 120 Degree Rotation Stainless Steel Vertical

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT01
Product Details
Power Supply:
220V 50Hz/ 110V, 60Hz
Passing Speed:
35 To 40 Person/min
Control Voltage:
DC24V
Weight:
About 30 Kg
Gate Open Signal:
Dry Contact/ Relay
Casing Material:
304 Stainless Steel
High Light:

550mm Lane Tripod Turnstile Gate

,

120 Degree Rotation Tripod Turnstile

,

Stainless Steel Vertical Tripod Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3,000pcs per month
Product Description

550 Mm Passing Lane Width Security Three Arm 120 Degree Rotation Tripod Turnstile



Product description



Tripod turnstile is the most basic type of pedestrian turnstile gate, which is composed of the chassis, mechanism,

and three blocking rods which stop or release by rotating 120° each time. Its components include chassis, mechanism,

drive control board, motor(for full automatic type), limit, direction indicator board, access control part, optional counter, etc.

The metal rod (rod length standard 50cm) forms a spatial triangle as the blocking body (brake rod). It is made of 304

or 316 stainless steel, which is durable and not easy to deform. The blocking and releasing are achieved by rotation.



Generally, the shape of the tripod turnstile is made of a 304 stainless steel plate, which is beautiful and generous,

rustproof and durable, and can resist external force damage.



Tripod turnstile is divided into mechanical type, semi-automatic type, and full-automatic type from the mechanism

control mode. From the form, it is divided into vertical tripod turnstile and bridge tripod turnstile. The vertical tripod

turnstile gate has a small volume and is relatively easy to install; The bridge tripod turnstile gate has a longer

channel and higher security.



Tripod security gate can be combined with smart card, fingerprint, bar code, and other identification system equipment

to form an intelligent access control system; It is combined with a computer, access control, attendance, charge

management, ticket system, and other software to form an intelligent access control management system, which can

realize the functions of access control, attendance, consumption, ticket sales, current restriction and so on.



Basic specification

  • Size: 480 * 280 * 980 mm (can be customized)
  • Lane width: 550 mm (can be customized)
  • Passing speed: 35 person/min
  • Power supply: 110 V/220 V 50/60 Hz
  • Tripod security gate Weight: 30 kg
  • Gate Open Signal: Dry Contact/ Relay
  • Casing Material: 304 stainless steel
  • Reliability of the mechanism : 3 million, no-fault

550mm Lane Tripod Turnstile Gate 120 Degree Rotation Stainless Steel Vertical 0





Features of Tripod Turnstile Gate:

  • Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.
  • If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.
  • Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.
  • Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.
  • Innovative and unique mounting surface ensures simple and convenient installation for system integrator.
  • Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc. (Access controller needed)
  • Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
  • The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.



Specifications of Tripod Turnstile Gate:



Item

Specification

Power supply

AC220±10%V 50Hz/; AC110±10% 60Hz

Housing material SS304/SS316

Power consumption

40W

Access device input voltage

Dry contact or 12V electrical level signal

or > 100ms 12V impulse signal, driving current > 10mA

Motor

No motor

Max flow rate

30 person per minute

Arm length

510mm

Working temperature

-20°C~60°C
