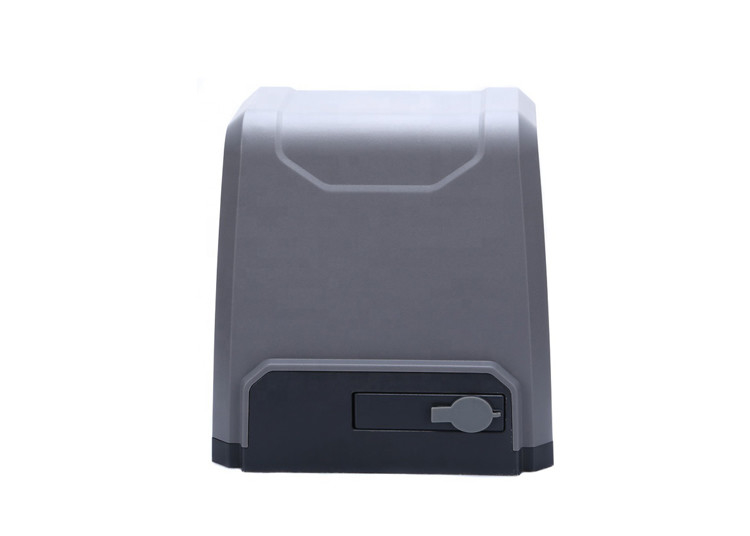

Rolling Code 800kg Sliding Gate Motor SL800AC 370W Gear Driven
  • Rolling Code 800kg Sliding Gate Motor SL800AC 370W Gear Driven
  • Rolling Code 800kg Sliding Gate Motor SL800AC 370W Gear Driven
  • Rolling Code 800kg Sliding Gate Motor SL800AC 370W Gear Driven
Rolling Code 800kg Sliding Gate Motor SL800AC 370W Gear Driven

Rolling Code 800kg Sliding Gate Motor SL800AC 370W Gear Driven

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SL800AC
Product Details
Model Number:
SN-SL800AC
Max.gate Weight:
800 KG
Output Torque:
22N.m
Woring Temperature:
-20℃~70℃
Limit Switch:
Magnetic Or Spring Limit Switch
Remote Control:
Rolling Code
Highlight:

Rolling Code Sliding Gate Motor

,

800kg Sliding Gate Motor

,

370W Automatic Sliding Operator

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
2,000 pcs per month
Product Description
Rolling Code 800kg Sliding Gate Motor SL800AC 370W Gear Driven
800kg AC Motor CE Certificated Automatic Sliding Gate Motor SL800AC
Product Advantages
  • AC motor with built-in control unit
  • Keypad/single button interface
  • Alarm lamp, photo beam and safety beam interface
  • User can select auto-close function
  • Soft start and slow stop (smart version, optional)
  • Auto-reverse function when hitting obstacle during closing (smart version, optional)
  • Manual key release design for emergency power failure
Product Main Features
  • AC motor with built-in control unit
  • Keypad/single button interface
  • Alarm lamp, photo beam and safety beam interface
  • User can select auto-close function
  • Soft start and slow stop (smart version, optional)
  • Auto-reverse function when hitting obstacle during closing (smart version, optional)
  • Manual key release design for emergency power failure
  • Gear driven with built-in control board
  • RF Hopping Code Technology prevents your remote code from being accessible to others
  • Manual release key for power outages or emergencies
  • Remote control with 4 buttons for open/close/stop functions
  • Supports up to 25 additional remote controls
Technical Specifications
Model SL800AC
Driven Mode Gear
Opening Speed 13m/min
Motor Power 370W
Remote Control Mode Single button
Output Torque 22N.m
Work Duty S2 20min
Limit Switch Magnetic or spring limit switch
Max. Gate Weight 800KG
Remote Control Range ≥30M
Recording of Remote Controls Max. 25 remote transmitters
Frequency 433.92Hz
Noise (No Load) ≤58dB
Output Shaft Height 50mm
Working Temperature -20℃~70℃
Power Supply 220V/50Hz (Optional: 110V/60Hz)
Package Weight 13KG
Standard Configuration 1 motor, 1 built-in control board, 2 remote controls, 2 keys
Optional Accessories Photocell, steel gear rack, alarm wall lamp, wireless keypad, wireless wall button
Rolling Code 800kg Sliding Gate Motor SL800AC 370W Gear Driven 0
Related Models
Rolling Code 800kg Sliding Gate Motor SL800AC 370W Gear Driven 1
Installation
SL800AC/SL1000AC/SL1500AC/SL2000AC sliding gate opener is applicable to gate weight less than 800kg/1000kg/1500kg/2000kg, and length of the sliding gate less than 12m. The drive mode adopts the rack and gear transmission. This gate opener must be installed inside the enclosure or yard for protection.
Installation Procedures
Preparation work before installation: Please make sure that the sliding gate is correctly installed, the gate rail is horizontal, and the gate can be manually moved smoothly before installing the gate opener.
Cable installation: In order to guarantee the normal operation of the gate opener and protect the cables from damages, please bury the motor & power cable and controlling cable separately with two PVC tubes.
Concrete pedestal: Please precast a concrete pedestal with the size can be 500mm x 300mm, depth be 250mm in advance, so as to firmly install SL800AC/SL1000AC/SL1500AC/SL2000AC gate opener. Please make sure the distance between the gate and gate opener is appropriate before casting the pedestal.
User Manual Download
SL800,1000,1500,2000AC User Manual.pdf
