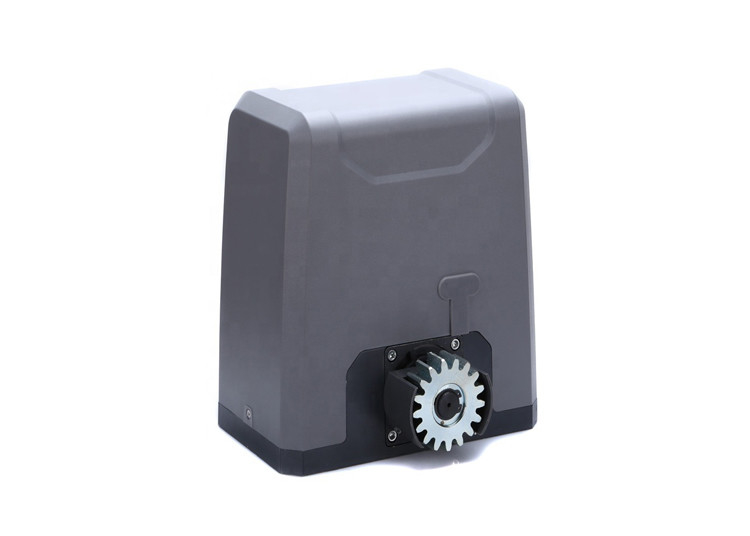

Gear Driven Sliding Gate Motor Magnetic Switch 370W SL800AC
  • Gear Driven Sliding Gate Motor Magnetic Switch 370W SL800AC
  • Gear Driven Sliding Gate Motor Magnetic Switch 370W SL800AC
  • Gear Driven Sliding Gate Motor Magnetic Switch 370W SL800AC
Gear Driven Sliding Gate Motor Magnetic Switch 370W SL800AC

Gear Driven Sliding Gate Motor Magnetic Switch 370W SL800AC

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SL800AC
Product Details
Driven Mode:
Gear
Max.gate Weight:
800 KG
Power Supply:
AC110V/220V
Output Torque:
22N.m
Woring Temperature:
-20℃~70℃
Limit Switch:
Magnetic Or Spring Limit Switch
Highlight:

Gear Driven Sliding Gate Motor

,

Magnetic Switch Sliding Gate Motor

,

370W Sliding Gate Opener

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
2,000 pcs per month
Product Description
SL800AC Gear Driven Sliding Gate Motor Magnetic Switch 370W
High-performance 370W gear-driven sliding gate motor with magnetic switch technology, designed for gates up to 800kg with smooth operation and advanced safety features.
Technical Specifications
ModelSL800AC
Driven ModeGear
Opening Speed13m/min
Motor Power370W
Remote Control ModeSingle button
Output Torque22N.m
Work DutyS2 20min
Limit SwitchMagnetic or spring limit switch
Max. Gate Weight800KG
Remote Control Range≥30M
Recording of Remote ControlsMax. 25 remote transmitters
Frequency433.92Hz
Noise (No Load)≤58dB
Output Shaft Height50mm
Working Temperature-20℃~70℃
Power Supply220V/50Hz (Optional: 110V/60Hz)
Package Weight13KG
Standard Configuration1 motor, 1 built-in control board, 2 remote controls, 2 keys
Optional AccessoriesPhotocell, steel gear rack, alarm wall lamp, wireless keypad, wireless wall button
Gear Driven Sliding Gate Motor Magnetic Switch 370W SL800AC 0
Main Features
  • AC motor with built-in control unit
  • Keypad/single button interface
  • Alarm lamp, photo beam and safety beam interface
  • User can select auto-close function
  • Soft start and slow stop (smart version, optional)
  • Auto-reverse function when hitting obstacle during closing (smart version, optional)
  • Manual key release design for emergency power failure
  • Gear driven with built-in control board
  • RF Hopping Code Technology prevents remote code access
  • Emergency manual release key for power outages
  • Remote control with 4 buttons (open/close/stop)
  • Supports up to 25 additional remote controls
Application Reference
Gear Driven Sliding Gate Motor Magnetic Switch 370W SL800AC 1
Installation Guidelines
SL800AC sliding gate opener is designed for gates weighing less than 800kg with sliding lengths under 12m. The system utilizes rack and gear transmission and must be installed inside an enclosure or yard for protection.
Installation Procedures
Preparation: Ensure the sliding gate is correctly installed, the gate rail is horizontal, and the gate moves smoothly manually before installing the opener.
Cable Installation: Bury motor & power cables and controlling cables separately using two PVC tubes to ensure normal operation and prevent damage.
Concrete Pedestal: Precast a concrete pedestal measuring 500mm x 300mm x 250mm to securely install the gate opener. Verify appropriate distance between gate and opener before casting.
Documentation
For complete installation and operation details, download the user manual:
SL800,1000,1500,2000AC User Manual.pdf
