International Standard Tripod Turnstile Barrier DC24V Relay Output Solenoid Lock

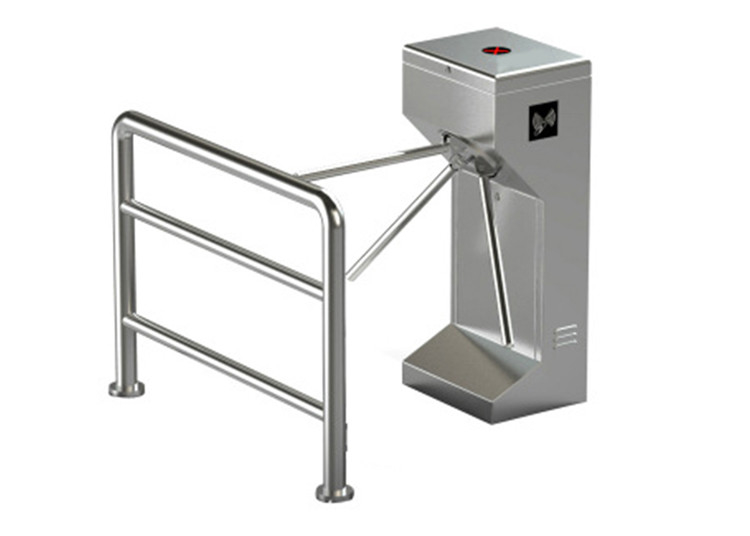

  • International Standard Tripod Turnstile Barrier DC24V Relay Output Solenoid Lock

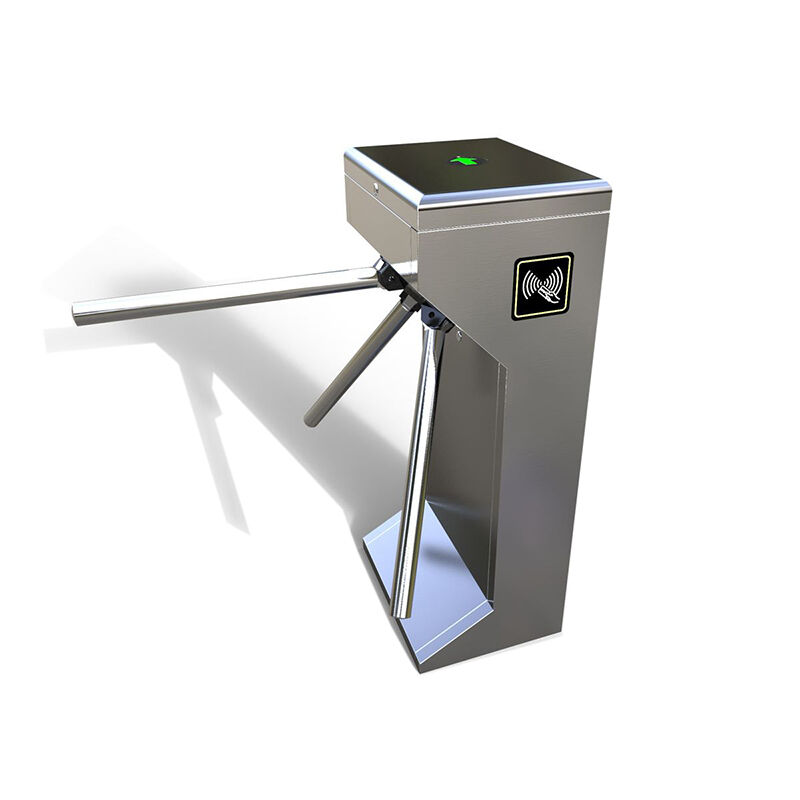

  • International Standard Tripod Turnstile Barrier DC24V Relay Output Solenoid Lock

International Standard Tripod Turnstile Barrier DC24V Relay Output Solenoid Lock

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT01
Product Details
Control Voltage:
DC24V
Input Voltage:
100 ~ 240V
MCBF:
5 Million Times
Color:
Silver
Gate Weight:
35Kg
Gate Open Signal:
Dry Contact/ Relay
High Light:

DC24V Tripod Turnstile Barrier

,

International Standard Tripod Turnstile Barrier

,

Solenoid Lock Tripod Turnstiles Door

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
1,000 pcs per month
Product Description

PRODUCT DESCRIPTION



Tripod turnstile is the most basic type of pedestrian turnstile gate, which is composed of the chassis, mechanism,

and three blocking rods which stop or release by rotating 120° each time. Its components include chassis, mechanism,

drive control board, motor, limit, direction indicator board, access control part, optional counter, etc. The metal rod

(rod length standard 50cm) forms a spatial triangle as the blocking body (brake rod). It is made of 304 or 316 stainless

steel, which is durable and not easy to deform. The blocking and releasing are achieved by rotation.



Generally, the shape of the tripod turnstile is made of a 304 stainless steel plate, which is beautiful and generous,

rustproof and durable, and can resist external force damage.











OUR ADVANTAGES



1. Full stainless steel structure, Strong and durable, good stability, Suitable for harsh outdoor environments,

such as construction sites



2. Tripod arms, one passager one arm, it can effectively stop trailing and fare evasion behaviors



3. The arm will drop automatically when there is power off or file alarm(optional).



4. Unified and standard external electrical interface, which can be connected with various reading and writing

devices, which is convenient for system integration.



TECHNICIAL SPECIFICATIONS



Model
SN-TT01
Size
480x280x980mm
Material
1.2mm SS304
Pass Width
550mm
Passage direction
Single directional/Bi-directional
Pass rate
30-35 persons/minute
Operating time
0.2 seconds
Power input
AC100-240V,50/60HZ
Working voltage
24V
Working humidity
30%~95%
Working temperature
-40℃~+70℃
Working environment
Indoor/outdoor
Communication interface
Dry contact
Mechanism
Solenoid lock
Infrared sensor
0 pairs
MCBF
3,000,000 Cycles



FUNCTION AND FEATURES



1. Gate lever length: 500mm; channel width: 550-600mm;



2. Material: 304 stainless steel material, designed according to international standards for moisture, dust and

water resistance



3. Power supply voltage: AC220V ± 10%, 50Hz; AC110V ± 10%, 60Hz



4. Working environment temperature: -30 ℃ ~ + 70 ℃;



5. Relative humidity: relative humidity ≤95%, no condensation;



6. Control interface: Dry Contact/ Relay



7. Passing speed: ≤30 people / minute;



8. Structure: frame structure / standard stainless steel shell;



9. Passing direction: support one-way and two-way;



10. Automatically drop the pole after power off, manually power on when power on;



11. Working environment: indoor and outdoor (with tent)



12. Extended functions: external ID, IC card, QR code, fingerprint recognition, face recognition, ID card recognition,

site real-name system, witness comparison system, ticketing system, security gate, visitor system, etc.
