DC24V Full Height Turnstile SUS304 40W Mechanism Office Building
  • DC24V Full Height Turnstile SUS304 40W Mechanism Office Building
  • DC24V Full Height Turnstile SUS304 40W Mechanism Office Building
  • DC24V Full Height Turnstile SUS304 40W Mechanism Office Building

DC24V Full Height Turnstile SUS304 40W Mechanism Office Building

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FHT01
Product Details
Frame Material:
SS304/SS316
Arm Material:
SS304/SS316
Type:
Full Height Turnstile
Mode:
Semi-auto
Package:
Plywood
IP Rate:
IP45
High Light:

DC24V Full Height Turnstile

,

Full Height Turnstile SUS304

,

40W Full Height Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3,00pcs per month
Product Description

PRODUCT DESCRIPTION



The high security full height turnstile gate is full soldering turnstile. The security turnstiles offers a reliable and efficient

method to ensure only authorized users are allowed access to each area of a building. It ensures vandal proof security

level to large variety of possible applications: stadiums, factories, parks, premises with highest security requirements etc.

Strength and durability is granted by robust fully welded design.







MAIN FUNCTION AND FEATURES



1. Access gate mechanic consist by two parts:Frame and Core.Signal reading device would be install on the

frame; main parts of core include motor,main board,shift of the controller,fix poles,turnstile supporting,turnstile,

protection cover,fence,etc.


2. Access direction:single or double direction(optional).


3. Self resetting function the system will cancel the people passing right when reading the card but not passing,the

time can be set.


4. Prohibiting opposite direction passing.


5. Automatic function of opening or closing when power off.


6. Direction indicator function,showing passing or prohibiting for the people.


7. Control board with counting function,LED digital display function(optional).


8. Control board with memory function,can meet the groups pass through.


9. Without time delay require of the control signal thanks to adopt optical hole focus technology.







PRODUCT PARAMETER



Model
SN-FHT01
Case Material
SS304
Barrier Arm Material
SS304
Production Process
CNC Laser Cutting
Overall Dimension
1450x1450x2300mm
Power input
AC100-240V,50/60HZ
Operation voltage
DC24V, 3A, Power: 40W
Electromagentic
Duty Cycle 100%
Barrier Barrier Arm Length
550mm
Arm Max Applied Force
600mm(Customization acceptable)
Passage direction
Single/bi-directional
Operating time
0.2S
Throughput Rate
30-35 persons/minute
Passage direction
Single directional/Bi-directional(Optional)
MCBF
5,000,000 Cycles
Automatic Reset Function
Automatically locked within set time
Operation Humidity
0~95%(No Freezing)
Operation Temperature
-20℃~+60℃
Operation Eenvironment
Indoor,Outdoor(Shelter)
Protection Level
IP45
Input Interface
Relay switch signal or 12V electrical level signal or 12V pulse signal of pulse width > 100ms, drive current >10mA





Why choose us:



1. Our Factory has 20 years of OEM/ODM experiences in the line of access control turnstile and barrier.
2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
4. Trial order is acceptable. Clients can buy sample and test it before bulk order.

5. Online technical support makes it carefree to be our business partner.

6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.

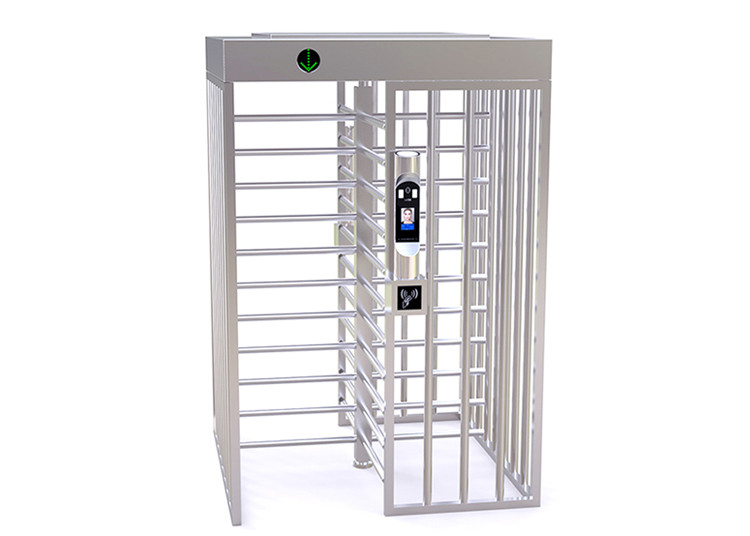

DC24V Full Height Turnstile SUS304 40W Mechanism Office Building 0

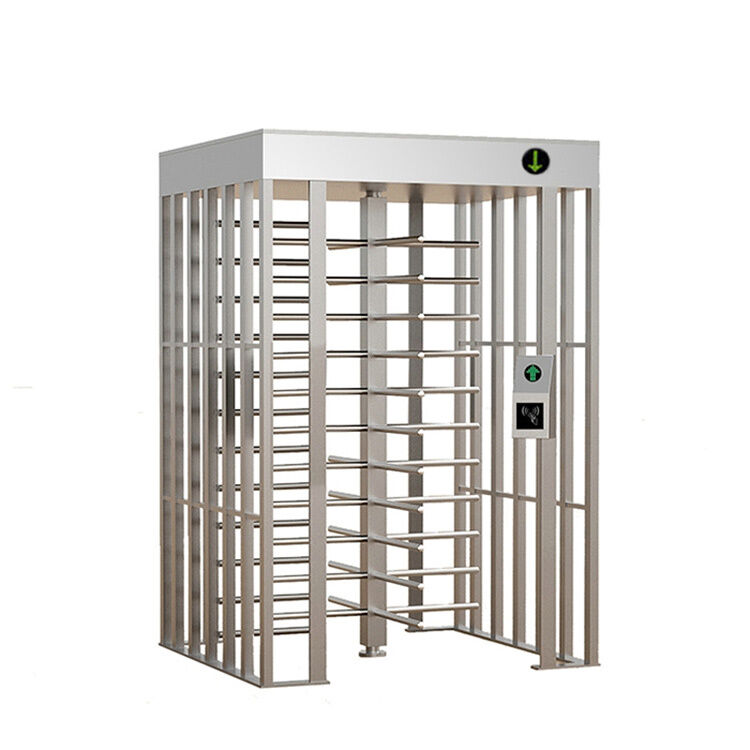

DC24V Full Height Turnstile SUS304 40W Mechanism Office Building 1
