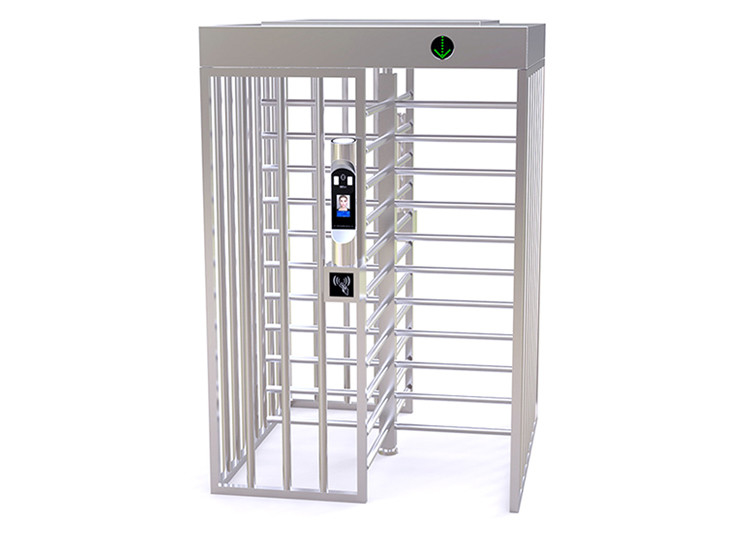

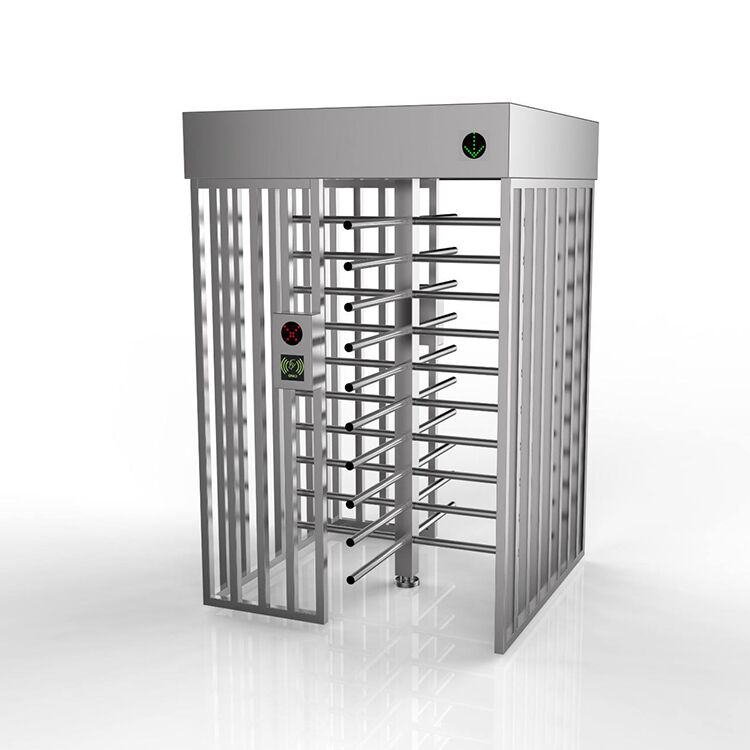

Direction Indicator Full Body Turnstile Square Shape Revolving 500mm Arm
  • Direction Indicator Full Body Turnstile Square Shape Revolving 500mm Arm
  • Direction Indicator Full Body Turnstile Square Shape Revolving 500mm Arm
  • Direction Indicator Full Body Turnstile Square Shape Revolving 500mm Arm
  • Direction Indicator Full Body Turnstile Square Shape Revolving 500mm Arm
Direction Indicator Full Body Turnstile Square Shape Revolving 500mm Arm

Direction Indicator Full Body Turnstile Square Shape Revolving 500mm Arm

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FH01
Product Details
Shape:
Square
Arm Degree:
90 Degree Or 120 Degree
Arm Length:
500mm To 600mm
Flow Direction:
Single Or Bi-direction
Type:
Full Height Turnstile
Mode:
Semi-auto
Highlight:

Direction Indicator Full Body Turnstile

,

Square Shape Revolving Full Body Turnstile

,

500mm Arm Access Control Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,
Supply Ability
3,00pcs per month
Product Description
Direction Indicator Full Body Turnstile Square Shape Revolving 500mm Arm
Product Overview
This full-height turnstile features a unique mechanical transmission system that integrates microprocessors with various card-reading devices. Through the integration of multiple reading and writing machines, it enables intelligent pedestrian control and management solutions.
Main Functions & Features
  • Access gate mechanism consists of two main components: Frame and Core. Signal reading devices are installed on the frame, while core components include motor, main board, controller shift, fixed poles, turnstile support, turnstile mechanism, protection cover, and fencing.
  • Access direction: Single or double direction (optional)
  • Self-resetting function: System cancels passage rights when card is read but not used within set time parameters
  • Prevents opposite direction passage
  • Automatic opening and closing functionality during power outages
  • Direction indicator function displays passage status for users
  • Control board with counting function and optional LED digital display
  • Control board includes memory function to accommodate group passage
  • No time delay requirements for control signals due to optical hole focus technology
Product Dimensions
Technical diagram showing dimensions and specifications of the full body turnstile
Technical Specifications
Item Specification
Power Supply AC220±10%V 50Hz/AC110±10% 60Hz
Power Consumption 40W
Access Device Input Voltage Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
Motor No motor
Max Flow Rate 30 persons per minute
Arm Length 500mm to 600mm
Working Temperature -20°C to 60°C
Why Choose Our Turnstile Solutions
  1. Over 20 years of OEM/ODM experience in access control turnstiles and barriers
  2. Prompt delivery with standard model inventory for immediate shipment
  3. Custom OEM/ODM orders to meet specific client requirements
  4. Trial orders accepted for product testing before bulk purchasing
  5. Comprehensive online technical support for business partners
  6. Multiple transportation options: sea shipment, air cargo, or express delivery
  7. Factory visits welcome on working days for client inspection
Project Reference
Real-world installation example of the full body turnstile in a commercial setting
