| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-PK400AC |
30 Meter Remote Control Distance 120° Open Angle Villa 4G GSM Swing Gate Opener
PRODUCT FEATURES
1) Used for articulated arm swing gate
2) Max open angle 120°
3) Soft start function, reverse push lock
4) Automatic close function, time is adjustable
5) Single door mode
6) Support Electronic lock, photocell, alarm lamp

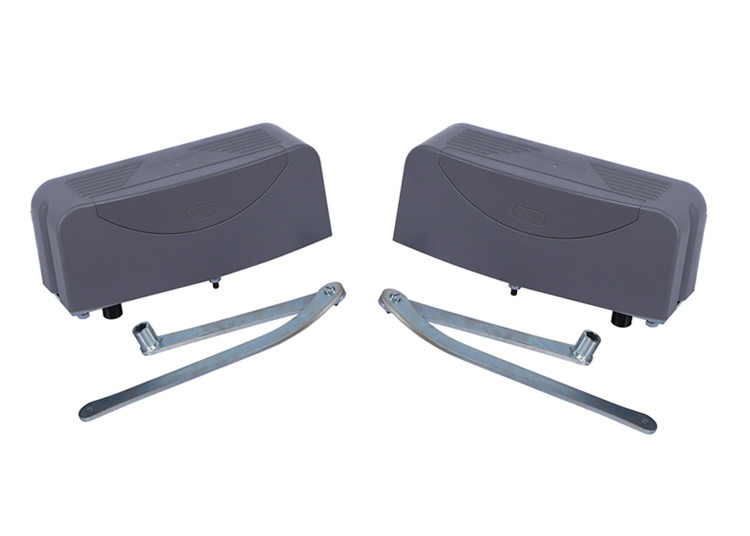

7) Standard configuration: 2 motors, 1 control box with board, 2 transmitters, 1 release bar, 2 crank arms,
2 connecting rods
8) Optional accessories: alarm wall lamp(20V/220V/110V), photocell, wireless keypad, wireless wall button
PRODUCT SPECIFICATIONS
| Model | PK400AC |
| Power supply | AC220V/50Hz, AC110V/60HZ |
| Motor power | 260W |
| Opening time | 9°/s~11°/s |
| Maximum weight of single gate | 400Kg |
| Distance for remote control | ≥30m |
| Remote control mode | Single-button mode |
| Limit switch | Mechanical limit switch |
| Noise | ≤58dB |
| Working duty | S2, 15min |
| Recording of up remote controls | 25 |
| Working temperature | -20°C ~ +70°C |
| Weight | 25.70Kg |
Installation guide
PK400AC swing gate opener is applicable to single leaf gate weight less than 400kg, and length of the single leaf swing gate
should be less than 2.5m. The drive mode adopts the worm and worm gear to combine the pinion transmission. This gate opener
must be installed inside the enclosure or yard for protection.
Installation drawing for main engine
The two engines are respectively installed at both sides of the gate and the Figure 6 shows the installation relation between
the housing, main engine and mounting plate. The main engine at the left hand is taken as an example for detailed description
of installation method and can be a reference for the installation method of the right one.
Preparation work before installation
a) Before installing the door opener, please confirm the correct installation of the door to ensure that the door can be easily
manually operated. Dismantle the plastic cover on the main engine and mounting base plate before installation and keep the
relevant fasteners properly;
b) Install the electric lock, the distance between the door bottom and ground should be 40-50mm. If not install the electric lock,
the distance between door bottom and ground should be ≥20mm.
Cable
Please prepare the fasteners for connecting mounting plate and wall according to the installation environment, and the power
cable for main engine (the number of each single engine power supply cable core shall not be less than 4 PCS, the sectional
area of cable core shall not be lower than 1.5mm²), the limit switch cable for main engine (the number of each single engine
limit switch cable core shall not be less than 3 PCS, the sectional area of cable core shall not be less than 0.75mm²), the power
cable for control box (the number of cable core shall note be less than 3 PCS, the sectional area of cable core shall not be less
than 1.5mm²). The length is determined by the user of according to the situation in the installation site.
Note: The pipe outlet should be facing down to avoid rain water entering the pipe along the cable.
Mounting brackets fixation
In order to install the PK400AC main engines firmly, recommend to use the expansion screws to fix the mounting brackets.
FOR MORE DETAILS, PLEASE CLICK THE BELOW LINK TO DOWNLOAD THE USER MANUAL.
