| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-PK400AC |

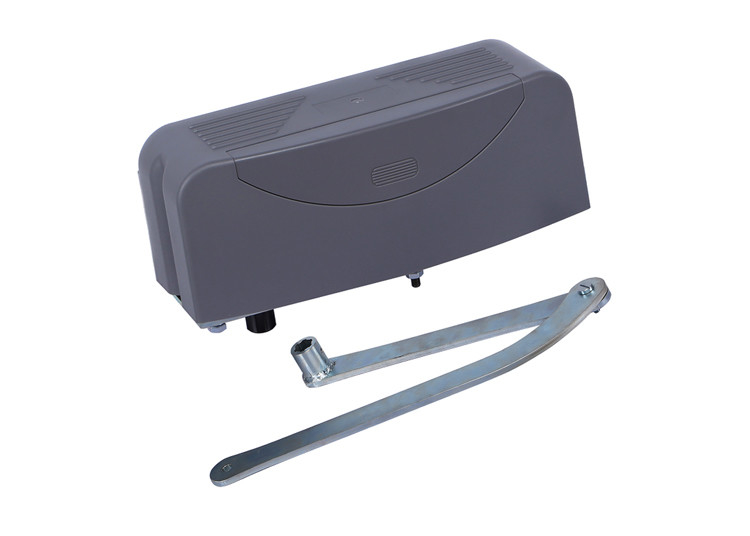

Shenzhen China Manufacturer Electric 260W Motor Power Articulated Swing Gate Opener
Safety Instruction
Please ensure that the using power voltage matches with the supply voltage of gate opener (AC110V or AC220V);
kids are forbidden to touch the control devices or the remote-control unit.
The remote-control unit is controlled by a single button mode or three button mode (please refer to the instructions
of the remote control in accordance with the actual gate opener type). The indicator light on the remote-control unit
will flicker when the button on it is pressed. Main engine and gate can be unlocked by disengagement wrench and
the gate can move with manual operation after disengagement.
Please ensure that no one is around the main engine or gate when the switch is operated and it is usually demanded
to examine the stability of installation. Please temporarily stop using if the main engine needs repairing or regulation.
The installation and maintenance of the products must be carried out by professionals.
PRODUCT SPECIFICATIONS
|
ITEM
|
Value
|
|
Warranty
|
1 Year
|
|
After-sale Service
|
Online technical support
|
|
Project Solution Capability
|
graphic design, 3D model design, total solution for projects,
Cross Categories Consolidation
|
|
Application
|
Villa
|
|
Design Style
|
Modern
|
|
Place of Origin
|
China
|
|
Brand Name
|
SINOMATIC
|
|
Model Number
|
PK400AC
|
|
Power supply
|
AC220V/50Hz, AC110V/60HZ
|
|
Motor power
|
260W
|
|
Opening time
|
9°/s~11°/s
|
|
Maximum weight of single gate
|
400Kg
|
|
Distance for remote control
|
≥30m
|
|
Remote control mode
|
Single-button mode/Four-button mode
|
|
Limit switch
|
Mechanical limit switch
|
|
Working temperature
|
-20°C ~ +70°C
|
|
Weight
|
25.70Kg
|
Installation guide
PK400AC swing gate opener is applicable to single leaf gate weight less than 400kg, and length of the single leaf swing gate
should be less than 2.5m. The drive mode adopts the worm and worm gear to combine the pinion transmission. This gate opener
must be installed inside the enclosure or yard for protection.
Installation drawing
Figure 1 and Figure 2 are the automatic swing gate system installation and the installation relation between the main engine and
principal accessories.
Figure 1
①.Control box; ②.Gate opener; ③.Gate; ④.Alarm lamp (optional);
⑤.Infrared sensor (optional); ⑥.Remote control (optional); ⑦.Wireless keypad (optional).
(A). Main engine; (B). Mounting base plate; (C). Articulated arm parts;
(D). Connecting rod; (E). Front mounting bracket.
