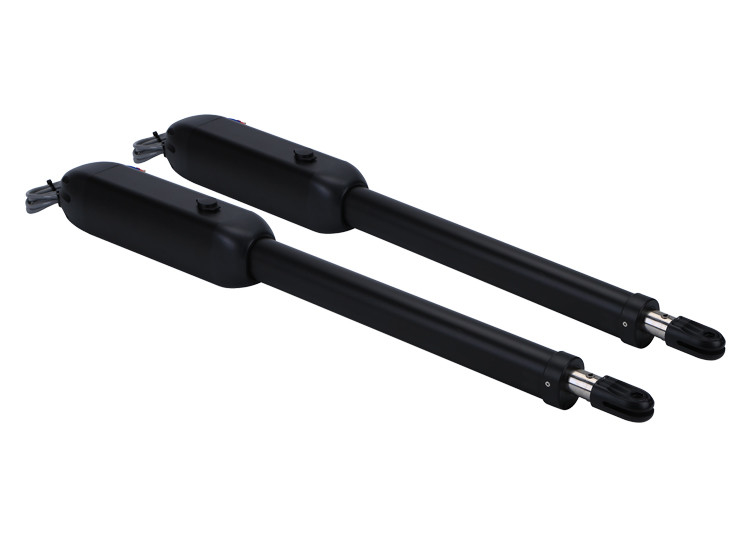

Obstruction Sensing Swing Gate Operator 62W Self Locking Remote Control
  • Obstruction Sensing Swing Gate Operator 62W Self Locking Remote Control
  • Obstruction Sensing Swing Gate Operator 62W Self Locking Remote Control
  • Obstruction Sensing Swing Gate Operator 62W Self Locking Remote Control

Obstruction Sensing Swing Gate Operator 62W Self Locking Remote Control

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SW400DC
Product Details
Product Name:
Swing Gate Opener/operator/motor
Motor Power:
DC 24V, 140W
Max. Gate Weight:
400kg*2
Max. Single-leaf Length:
3 Meters *2
Feature:
Self Locking At Any Position
Safety Protection:
Obstruction Sensing, Infrared Photo-beam Connection
High Light:

Obstruction Sensing Swing Gate Operator

,

62W Swing Gate Operator

,

Remote Control Swing Gate Opener

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
2,000 pcs per month
Product Description

Obstruction Sensing Self Locking At Any Position Automatic Swing Gate Opener



Product description



The gate opener designed for residential courtyard swing gate use, gate leaf weight up to 400 Kg and width up to 4 m.



Product features



* DC motor, compact structure, smooth operation and low noise.



* Optional for Stroke length 29 cm and 49 cm.



* Separately control box



* Keypad / single button interface.



* Alarm lamp, Photo beam & safety beam interface.



* User can select auto-close function.



* Installing the mechanical stops inside the opener to eliminate ground stops, possibility to use adjustable fixing limit block.



* Manual key release design for emergency purposes.



* Automatic stop when hitting obstacle during opening, auto-reverse when hitting obstacle during closing.



* Soft start slow stop, automatic close, obstacle detection by automatic reversing.


* Interface for GSM, infrared sensor, alarm light, wall button.


* Back up battery is available.


* Support works with solar panel.


* Shell material is aluminum, arm is stainless steel.


* Separate control unit, easy to install.





TECHNICIAL SPECIFICATIONS



Model SW400DC
Power supply 220V/50Hz;110V/60Hz
Motor power 62W
Gate moving speed 22~26s / 90°
Max.single-leaf weight 400kg
Max.single-leaf length 4M
Max.piston stroke 45cm
Max.force 2500N
Remote control distance ≥30m
Remote control mode Single button mode
Storage battery (optional) DC24V (4.5Ah or 9Ah)
Noise ≤60dB
Working duty S2, 30min
Recording of up remote controls 32
Remote frequency 433.92 MHz
Working temperature -20°C - +70°C
Package weight 20kg



Standard packing list



SW400DC motor * 2pcs.
control box * 1pcs.
control board * 1pcs.
remote control * 2pcs.
manual release key * 1pcs.
user manual*1pcs.
mounting accessories.


Installation


SW400DC swing gate opener is applicable to single leaf gate weight less than 400kg, and the length shorter than 4m.
The drive mode adopts the worm and worm gear to combine the screw rod transmission. This gate opener must be
installed inside the enclosure or yard for protection.


Preparation before Main Machine Installation


a) Before installing the door opener, please confirm that the door were installed correctly, please ensure that the
door can be manually operated smoothly, and the door limit stopper can effectively prevent the door to continue moving.


b) Please keep a distance of 40-50mm between the door bottom and the ground for installing the electric lock. If
electric lock is not required, the distance between the door bottom and the ground should be 20mm;


c) The recommended mounting height of the 2 main machines is around 300 ~ 800mm above the ground, and
make sure there are reliable fixed points for mounting brackets.
