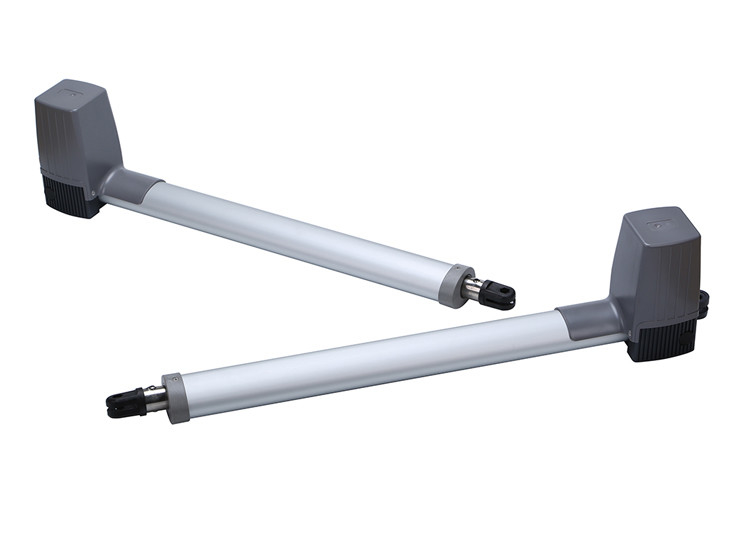

Screw Piston Swing Gate Operator Worm Gear DC24V Double Arm 140W
  • Screw Piston Swing Gate Operator Worm Gear DC24V Double Arm 140W
  • Screw Piston Swing Gate Operator Worm Gear DC24V Double Arm 140W
  • Screw Piston Swing Gate Operator Worm Gear DC24V Double Arm 140W
Screw Piston Swing Gate Operator Worm Gear DC24V Double Arm 140W

Screw Piston Swing Gate Operator Worm Gear DC24V Double Arm 140W

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-PK300DC
Product Details
Remote Control Range:
>30 Meters
Motor Power:
DC 24V, 140W
Gear Box:
Gear Box
Operating Cycle:
20 Second Per 90 Degree(approx)
Max. Single-leaf Weight:
300KG
Max. Single-leaf Length:
2.5M
Highlight:

Screw Piston Swing Gate Operator

,

Worm Gear Swing Gate Operator

,

140W Double Swing Gate Opener

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
2,000 pcs per month
Product Description
Screw Piston Swing Gate Operator Worm Gear DC24V Double Arm 140W
China Solar Power DC 24V 300KG Double Arm Electric Automatic Swing Gate Operator
Specifications
ModelPK300DC
Driving MethodScrew driven piston type
Motor PowerDC 24V, 140W
Operating Cycle20 second per 90° (approx)
Max. Single-leaf Weight300KG
Max. Single-leaf Length2.5M
Gear BoxWorm gear
Limit SwitchStop block
Working Temperature-20℃~70℃
Work DutyS2 30min
Power SupplyAC 110V/220V, 60Hz/50Hz
Protection ClassIP 54
Weight16KG
Standard Configuration2 motor, 1 control box with board, 2 remote transmitters, 1 release bar
Optional AccessoriesPhotocell, alarm wall lamp(20V/220V/110V), wireless keypad, wireless wall button, 20W solar panel, 9AH battery box with solar charger
Product Dimension
Screw Piston Swing Gate Operator Worm Gear DC24V Double Arm 140W 0
Main Features
  • Push rod 24V DC electronic swing arm gate opener
  • Soft start slow stop function
  • Obstacle detection in opening and closing
  • Automatic close function with adjustable timing
  • Over-current protection meeting European safety requirements
  • Safe design to prevent PCB damage from incorrect wiring
  • Compatible with GSM, solar system, photocell, alarm lamp, and electronic lock
  • Supports up to 23 additional remote controls
  • Manual release capability for power outages and emergencies
  • Optional accessories: alarm wall lamp, photocell, wireless keypad, wireless wall button, 20W solar panel, 9Ah battery box with solar charger
Installation

The PK300DC/PK350DC swing gate opener is designed for single leaf gates weighing less than 300kg, with a maximum single leaf length of 2.5m/3m. The drive mechanism combines worm gear with screw rod transmission. This gate opener must be installed inside the enclosure or yard for protection.

Installation Steps
Preparation Before Main Engine Installation

a) Before installing the door opener, confirm proper gate installation to ensure smooth manual operation and effective safety stopper functionality.

b) For electric lock installation, maintain 40-50mm clearance between gate bottom and ground. Without electric lock, maintain ≥20mm clearance.

c) Recommended mounting height is 300-800mm from ground, with reliable fixed points for mounting brackets.

Cable Management

Use PVC pipes to lay motor, power, and control cables separately. Use two separate PVC pipes for motor/power cables and control cables respectively.

Mounting Brackets

For secure installation of PK300DC/PK350DC main engines, use expansion screws to fix the mounting brackets.

Documentation
PK300DC PK350DC User Manual.pdf

For more detailed information, please refer to the attached user manual.
