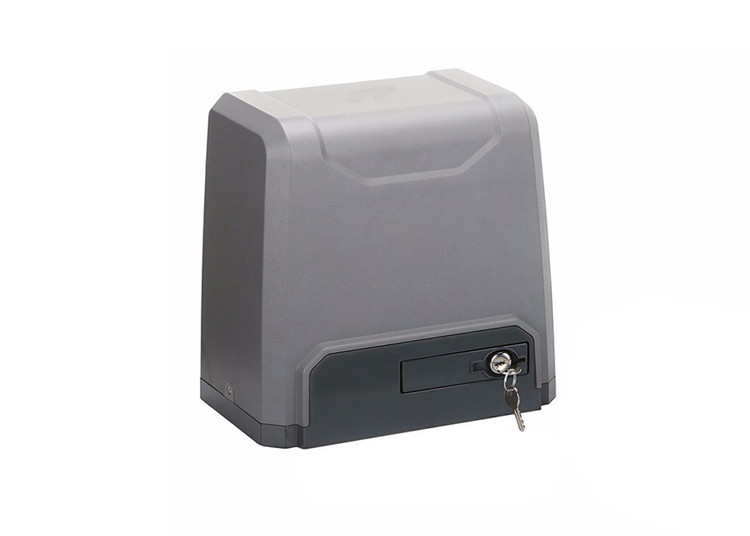

Overload Protection Sliding Gate Operator Single Button AC110V 1000KG
  • Overload Protection Sliding Gate Operator Single Button AC110V 1000KG
  • Overload Protection Sliding Gate Operator Single Button AC110V 1000KG
  • Overload Protection Sliding Gate Operator Single Button AC110V 1000KG
Overload Protection Sliding Gate Operator Single Button AC110V 1000KG

Overload Protection Sliding Gate Operator Single Button AC110V 1000KG

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SL1000AC
Product Details
Gate Opening Speed:
13m/min
Max.gate Weight:
1000 KG
Power Supply:
AC110V/220V
Remote Control Range:
>30 Meters
Motor Power:
400W
Work Duty:
S2 20min
Highlight:

Overload Protection Sliding Gate Operator

,

Single Button Sliding Gate Operator

,

AC110V Automatic Sliding Operator

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
2,000 pcs per month
Product Description
Overload Protection Sliding Gate Operator Single Button AC110V 1000KG
800-2000 KG Max Gate Weight Overheat And Overload Dual Protection Automatic Sliding Operator
Product Applications
Suitable for various public access doors, campuses, factories, office buildings, shopping malls, parking lots, and other locations. Enables contactless automatic door opening and closing.
Key Advantages
  • Multi-System Compatibility: Works with infrared sensors, motion detectors, remote controls, face recognition systems, IC/ID card readers, button switches, mobile Bluetooth, and other access control systems for automatic opening and delayed closing.
  • Adjustable Settings: Door holding time, speed, and force can be customized within allowable ranges.
  • Safety Features: Built-in resistance reversal function with optional infrared sensor for secondary protection.
  • Fire Safety Integration: Includes fire fighting linkage capability.
Technical Specifications
Model SL1000AC
Driven Mode Gear
Opening Speed 13m/min
Motor Power 400W
Remote Control Mode Single button
Output Torque 22N.m
Work Duty S2 20min
Limit Switch Magnetic or spring limit switch
Max. Gate Weight 1000KG
Remote Control Range ≥30M
Remote Control Capacity Max. 25 remote transmitters
Frequency 433.92Hz
Noise (No Load) ≤58dB
Output Shaft Height 50mm
Working Temperature -20℃~70℃
Power Supply 220V/50Hz (Optional: 110V/60Hz)
Package Weight 13KG
Standard Configuration 1 motor, 1 built-in control board, 2 remote controls, 2 keys
Optional Accessories Photocell, steel gear rack, alarm wall lamp, wireless keypad, wireless wall button
Product Dimensions
Overload Protection Sliding Gate Operator Single Button AC110V 1000KG 0
Main Features
  • AC motor with built-in control unit
  • Keypad/single button interface
  • Alarm lamp, photo beam and safety beam interface
  • User-selectable auto-close function
  • Soft start and slow stop (smart version, optional)
  • Auto-reverse function when hitting obstacles during closing (smart version, optional)
  • Manual key release design for emergency power failure
  • Gear driven with built-in control board
  • RF Hopping Code Technology prevents remote code access by others
  • Emergency manual release key for power outages
  • 4-button remote control for open/close/stop functions
  • Supports up to 25 additional remote controls
Installation Requirements
The SL800AC/SL1000AC/SL1500AC/SL2000AC sliding gate opener is designed for gates weighing less than 800kg/1000kg/1500kg/2000kg respectively, with sliding gate length under 12 meters. The drive system uses rack and gear transmission. This gate operator must be installed inside the enclosure or yard for protection.
Installation Procedures
Pre-Installation Preparation
Ensure the sliding gate is properly installed, the gate rail is level, and the gate moves smoothly manually before installing the gate operator.
Cable Installation
To ensure normal operation and protect cables from damage, bury the motor & power cable and controlling cable separately using two PVC tubes.
Concrete Pedestal
Precast a concrete pedestal measuring 500mm x 300mm with a depth of 250mm to securely install the gate opener. Verify the distance between the gate and gate opener is appropriate before casting the pedestal.
Overload Protection Sliding Gate Operator Single Button AC110V 1000KG 1
Main Unit Installation
  • Remove the plastic housing from the main unit before installation and store all fasteners properly
  • Prepare power line for connecting mounting plate to main unit (minimum 3-core cable with cross-sectional area over 1.5mm²)
  • Unlock the main unit before installation by removing the rubber key cover, inserting the key, and opening the manual release bar until it rotates 90°
Documentation Download
For complete installation and operation details, download the comprehensive user manual.
Download SL800,1000,1500,2000AC User Manual (PDF)
