ISO 400W Heavy Duty Sliding Gate Opener 13m/ Min 1000KG Solar
  • ISO 400W Heavy Duty Sliding Gate Opener 13m/ Min 1000KG Solar
  • ISO 400W Heavy Duty Sliding Gate Opener 13m/ Min 1000KG Solar
  • ISO 400W Heavy Duty Sliding Gate Opener 13m/ Min 1000KG Solar
ISO 400W Heavy Duty Sliding Gate Opener 13m/ Min 1000KG Solar

ISO 400W Heavy Duty Sliding Gate Opener 13m/ Min 1000KG Solar

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SL1000AC
Product Details
Gate Moving Speed:
13m/min
Max.gate Weight:
1000 KG
Power Supply:
AC110V/220V
Limit Switch:
Spring/magnetic
Woring Temperature:
-20℃~70℃
Remote Control Range:
>30 Meters
Highlight:

ISO Heavy Duty Sliding Gate Opener

,

400W Heavy Duty Sliding Gate Opener

,

13m/ Min Solar Sliding Gate Opener

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
2,000 pcs per month
Product Description
ISO 400W Heavy Duty Sliding Gate Opener 13m/Min 1000KG Solar
Factory Price 1000 KG Gate Weight Capacity Heavy Duty Sliding Gate Operator
TECHNICAL SPECIFICATIONS
ModelSL1000AC
Driven ModeGear
Opening Speed13m/min
Motor Power400W
Remote Control ModeSingle button
Output Torque22N.m
Work DutyS2 20min
Limit SwitchMagnetic or spring limit switch
Max. Gate Weight1000KG
Remote Control Range≥30M
Recording of Remote ControlsMax. 25 remote transmitters
Frequency433.92Hz
Noise (No Load)≤58dB
Output Shaft Height50mm
Working Temperature-20℃~70℃
Power Supply220V/50Hz (Optional: 110V/60Hz)
Package Weight13KG

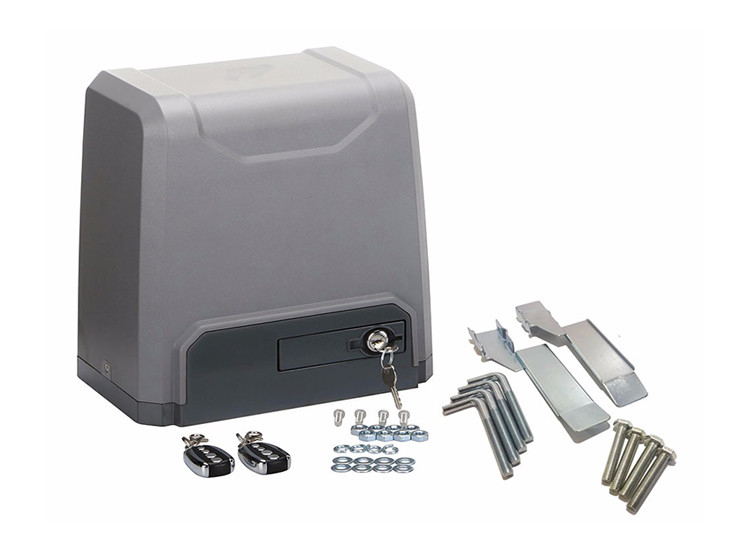

Standard Configuration1 motor, 1 built-in control board, 2 remote controls, 2 keys
Optional AccessoriesPhotocell, steel gear rack, alarm wall lamp, wireless keypad, wireless wall button
PRODUCT SIZE
ISO 400W Heavy Duty Sliding Gate Opener 13m/ Min 1000KG Solar 0
MAIN FEATURES
  • AC motor with built-in control unit
  • Keypad/single button interface
  • Alarm lamp, photo beam and safety beam interface
  • User can select auto-close function
  • Soft start and slow stop (smart version, optional)
  • Auto-reverse function when hitting obstacle during closing (smart version, optional)
  • Manual key release design for emergency power failure
  • Gear driven with built-in control board
  • RF Hopping Code Technology prevents your remote code from being accessible to others
  • In case of a power outage or an emergency you may also use manual release key
  • The remote control has 4 buttons, corresponding to open/close/stop
  • You can add up to 25 extra remotes that can control this system
ISO 400W Heavy Duty Sliding Gate Opener 13m/ Min 1000KG Solar 1
INSTALLATION

SL800AC/SL1000AC/SL1500AC/SL2000AC sliding gate opener is applicable to gate weight less than 800kg/1000kg/1500kg/2000kg, and length of the sliding gate less than 12m. The drive mode adopts the rack and gear transmission. This gate opener must be installed inside the enclosure or yard for protection.

Installation Procedures
Preparation Work Before Installation

Please make sure that the sliding gate is correctly installed, the gate rail is horizontal, and the gate can be manually moved smoothly before installing the gate opener.

Cable Installation

In order to guarantee the normal operation of the gate opener and protect the cables from damages, please bury the motor & power cable and controlling cable separately with two PVC tubes.

Concrete Pedestal

Please precast a concrete pedestal with the size can be 500mm x 300mm, depth be 250mm in advance, so as to firmly install SL800AC/SL1000AC/SL1500AC/SL2000AC gate opener. Please make sure the distance between the gate and gate opener is appropriate before casting the pedestal.

USER MANUAL DOWNLOAD
Download SL800,1000,1500,2000AC User Manual (PDF)
