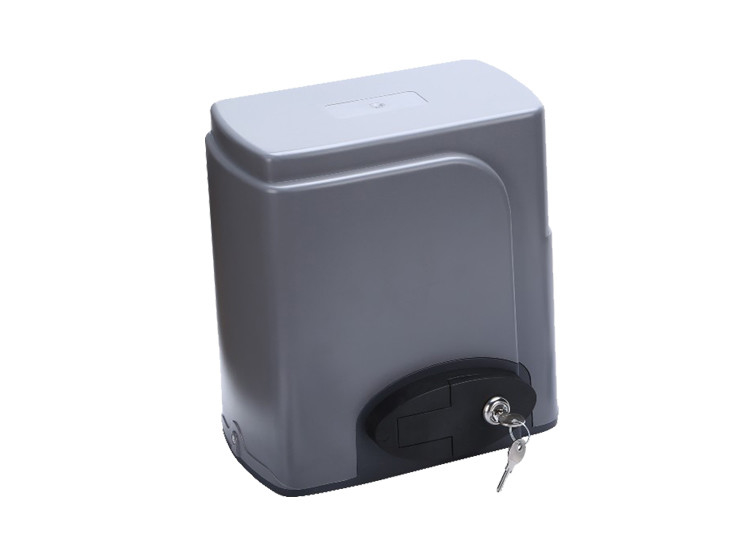

AC Motor Switch Sliding Gate Operator 55rpm Magnetic Spring Limit 280W
  • AC Motor Switch Sliding Gate Operator 55rpm Magnetic Spring Limit 280W
  • AC Motor Switch Sliding Gate Operator 55rpm Magnetic Spring Limit 280W
  • AC Motor Switch Sliding Gate Operator 55rpm Magnetic Spring Limit 280W
AC Motor Switch Sliding Gate Operator 55rpm Magnetic Spring Limit 280W

AC Motor Switch Sliding Gate Operator 55rpm Magnetic Spring Limit 280W

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SL600AC
Product Details
Motor Speed:
55rpm
Dimension:
275x255x310mm
Max.gate Weight:
600 KG
Power Supply:
AC110V/220V
Remote Control Mode:
Single Button
Limit Switch:
Spring/magnetic
Highlight:

AC Motor Switch Sliding Gate Operator

,

55rpm Sliding Gate Operator

,

280W Smart Sliding Gate Opener

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
1,000 pcs per month
Product Description
AC Motor Switch Sliding Gate Operator
High-performance 55rpm magnetic spring limit switch sliding gate operator with 280W power output, designed for gates up to 600kg.
Optional Accessories
  • Metal Gear Rack & Nylon Gear Rack (custom length according to gate requirements)
  • Photo beam sensor
  • Keypad systems
  • Push button
  • Warning light
  • Solar panel
  • Backup batteries
Technical Specifications
Model SL600AC
Motor Speed 55rpm
Rated Output Power of Motor 280W
Remote Control Mode Single button
Output Torque 16N.m
Work Duty S2 15min
Limit Switch Magnetic or spring limit switch
Max. Gate Weight 600KG
Opening Speed 13m/min
Remote Control Range ≥30M
Recording of Remote Controls Max. 25 remote transmitters
Frequency 433.92Hz
Noise (No Load) ≤58dB
Output Shaft Height 46mm
Working Temperature -20℃~70℃
Power Supply 220V/50Hz (Optional: 110V/60Hz)
Standard Configuration 1 motor, 1 built-in control board, 2 remote controls, 2 keys
Main Features
  • AC motor with built-in control unit
  • Keypad/single button interface
  • Alarm lamp, photo beam and safety beam interface
  • User-selectable auto-close function
  • Soft start and slow stop (smart version, optional)
  • Auto-reverse function when hitting obstacle during closing (smart version, optional)
  • Manual key release design for emergency power failure
  • Gear driven with built-in control board
  • RF Hopping Code Technology prevents remote code access
  • Handles gates up to 8 meters long and 600KG weight
  • 4-button remote control (open/close/stop functions)
  • Supports up to 25 remote transmitters
  • Emergency manual release key for power outages
Packing List
AC Motor Switch Sliding Gate Operator 55rpm Magnetic Spring Limit 280W 0
Installation Information
The SL600AC sliding gate opener is designed for gates weighing less than 600kg and with sliding lengths under 12m. This gear-driven operator must be installed inside the enclosure or yard for protection.
Installation Procedures
Preparation Work Before Installation
Ensure the sliding gate is correctly installed, the gate rail is level, and the gate moves smoothly manually before installing the gate operator.
Cable Installation
For optimal operation and cable protection, bury the motor & power cable and controlling cable separately using two PVC tubes.
Concrete Pedestal
Precast a concrete pedestal measuring 400mm x 250mm with 200mm depth. Verify appropriate distance between gate and gate opener before casting the pedestal.
Documentation
For complete installation and operation details, download the user manual:
SL600AC User Manual (PDF)
