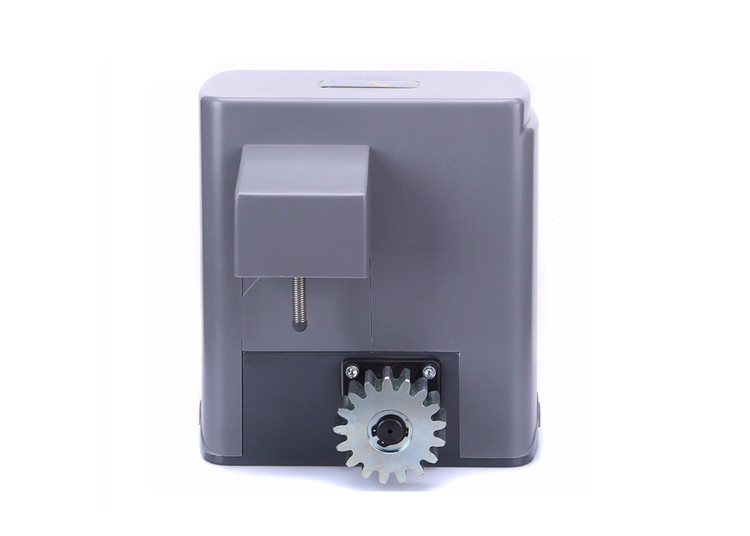

280W Automatic Sliding Gate Operator 55rpm 600Kg Electric Control RF Hopping
  • 280W Automatic Sliding Gate Operator 55rpm 600Kg Electric Control RF Hopping
  • 280W Automatic Sliding Gate Operator 55rpm 600Kg Electric Control RF Hopping
  • 280W Automatic Sliding Gate Operator 55rpm 600Kg Electric Control RF Hopping
280W Automatic Sliding Gate Operator 55rpm 600Kg Electric Control RF Hopping

280W Automatic Sliding Gate Operator 55rpm 600Kg Electric Control RF Hopping

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SL600AC
Product Details
Type:
Automatic Sliding Gate Operator
Dimension:
275x255x310mm
Max.gate Weight:
600 KG
Power Supply:
AC110V/220V
Motor Power:
280W
Limit Switch:
Spring/magnetic
Highlight:

280W Automatic Sliding Gate Operator

,

RF Hopping Sliding Gate Operator

,

600Kg Electric Gate Operators

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
1,000 pcs per month
Product Description
280W Automatic Sliding Gate Operator
Professional 55rpm electric control system with RF hopping technology for gates up to 600kg
Product Overview
3D Model Design Electric Control AC Motor with advanced features for reliable sliding gate operation. This powerful sliding gate opener is designed for heavy-duty industrial and commercial applications.
Main Features
  • AC motor with built-in control unit for integrated operation
  • Keypad and single button interface options
  • Alarm lamp, photo beam and safety beam interfaces
  • Configurable auto-close function
  • Soft start and slow stop technology (smart version, optional)
  • Auto-reverse safety function when hitting obstacles (smart version, optional)
  • Manual key release design for emergency power failure situations
  • Gear driven mechanism with built-in control board
  • RF Hopping Code Technology for enhanced security
  • Handles gates up to 8 meters long and 600kg weight
  • 4-button remote control (open/close/stop functions)
  • Supports up to 25 remote transmitters
  • Manual release key for power outage emergencies
Technical Specifications
ModelSL600AC
Motor Speed55rpm
Rated Output Power280W
Remote Control ModeSingle button
Output Torque16N.m
Work DutyS2 15min
Limit SwitchMagnetic or spring limit switch
Maximum Gate Weight600KG
Opening Speed13m/min
Remote Control Range≥30M
Remote Transmitter CapacityMaximum 25 remote transmitters
Frequency433.92Hz
Noise Level (No Load)≤58dB
Output Shaft Height46mm
Working Temperature-20℃~70℃
Power Supply220V/50Hz (Optional: 110V/60Hz)
Standard Configuration1 motor, 1 built-in control board, 2 remote controls, 2 keys
Optional Accessories
  • Metal Gear Rack & Nylon Gear Rack (custom lengths available)
  • Photo beam sensor systems
  • Keypad access control systems
  • Push button controls
  • Warning light indicators
  • Solar panel power options
  • Backup battery systems
Product Dimensions
280W Automatic Sliding Gate Operator 55rpm 600Kg Electric Control RF Hopping 0
Installation Requirements
The SL600AC sliding gate opener is designed for gates weighing less than 600kg with a maximum length of 12 meters. This gear-driven system must be installed inside the enclosure or yard for optimal protection and performance.
Installation Procedures
Pre-Installation Preparation
Ensure the sliding gate is properly installed, the gate rail is level, and the gate moves smoothly manually before installing the gate operator.
Cable Installation
For optimal operation and cable protection, bury the motor & power cables and control cables separately using two PVC conduit tubes.
Concrete Foundation
Pre-cast a concrete foundation measuring 400mm x 250mm with a depth of 200mm to securely mount the SL600AC gate opener. Verify appropriate distance between gate and opener before pouring concrete.
280W Automatic Sliding Gate Operator 55rpm 600Kg Electric Control RF Hopping 1
Documentation
For comprehensive installation guidelines, operational instructions, and technical details, download the complete user manual:
Download SL600AC User Manual (PDF)
