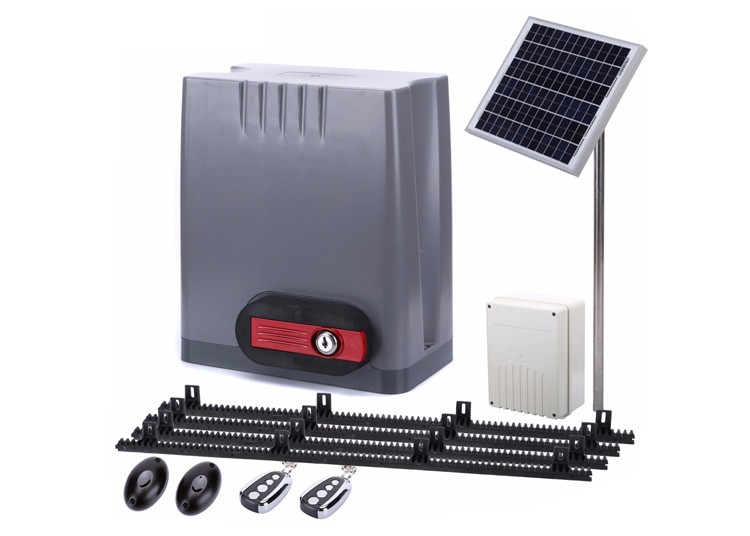

DC24V Solar Panel Backup Battery Interface Sliding Gate Operator 500Kg Capacity 150W
  • DC24V Solar Panel Backup Battery Interface Sliding Gate Operator 500Kg Capacity 150W
  • DC24V Solar Panel Backup Battery Interface Sliding Gate Operator 500Kg Capacity 150W
DC24V Solar Panel Backup Battery Interface Sliding Gate Operator 500Kg Capacity 150W

DC24V Solar Panel Backup Battery Interface Sliding Gate Operator 500Kg Capacity 150W

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-DKC500DC
Product Details
Application:
Villa
Type:
Automatic Sliding Gate Operator
Motor Power:
150W
Max.gate Weight:
500 KG
Gate Move Speed:
13m/min
Drive:
Gear Driven
Highlight:

Solar Panel Sliding Gate Operator

,

DC24V Sliding Gate Operator

,

170W Solar Powered Sliding Gate Opener

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
1,000 pcs per month
Product Description
DC24V Solar Panel Backup Battery Interface Sliding Gate Operator
Heavy-duty sliding gate operator with 500kg capacity, 150W motor power, and solar compatibility for reliable automated gate control.
Product Specifications
Model DKC500DC DKC800DC
Color Blue/Gray/Black
Max Gate Weight 500KG 800KG
Motor Power 150W 170W
Output Torque 14N·m 18N·m
Limit Switch Magnetic Limit Switch
Gate Move Speed 13m/min or 14m/min
Remote Control Range >30M
Design Style Modern
Origin China
Product Features
  • DC motor with built-in control unit
  • Optional backup battery connection for DC model
  • Solar system compatible for DC model
  • Keypad/single button interface
  • Alarm lamp, photo beam & safety beam interface
  • Optional auto-close function
  • Soft start and slow stop function
  • Auto-reverse function when hitting obstacle during gate closing
  • Manual key release design for emergency purposes
Optional Accessories
  • Metal Gear Rack & Nylon Gear Rack (order according to gate length)
  • Photo beam sensor
  • Keypad systems
  • Push button
  • Warning light
  • Solar panel
  • Backup batteries
Installation Requirements
The DKC500DC/DKC800DC sliding gate opener is designed for gates weighing less than 500kg/800kg with sliding gate length less than 8m. The drive mode utilizes rack and gear transmission. This gate opener must be installed inside the enclosure or yard for protection.
DC24V Solar Panel Backup Battery Interface Sliding Gate Operator 500Kg Capacity 150W 0
Installation Procedures
Preparation Work Before Installation
Ensure the sliding gate is correctly installed, the gate rail is horizontal, and the gate can be manually moved smoothly before installing the gate opener.
Cable Installation
To guarantee normal operation and protect cables from damage, bury the motor & power cable and controlling cable separately using two PVC tubes.
Concrete Pedestal
Cast a concrete pedestal with dimensions of 400mm x 250mm and depth of 200mm in advance to firmly install the gate opener. Verify the distance between the gate and gate opener is appropriate before casting the pedestal.
Documentation
Download User Manual (PDF)
