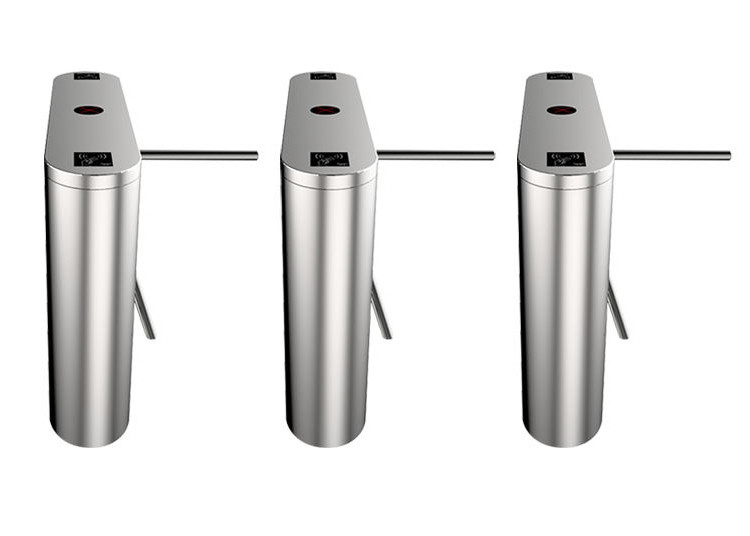

500mm Arm Tripod Barrier Gate SUS304 RFID Access Control DC24V

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT03
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 3,000pcs per month
Product Details
Housing Size 1200*280*980 Mm Arm Lenght 500mm
Control Signal Relay Color Silver
Net Weight 50 Kg Gross Weight 65 Kg
High Light

500mm Arm Tripod Barrier Gate

,

RFID Tripod Barrier Gate

,

Access Control Barrier Gate DC24V

Leave a Message
Product Description

SUS 304 RFID Access Control Silver Color Security Protection Tripod Turnstile Barrier



PRODUCT DESCRIPTIONS



Tripod turnstile, one type of the access management equipment, is mainly used for pedestrian access management,

with the fast opening safe and convenient characteristics, is the ideal pedestrian high frequency access management

equipment,organically integrating machinery electronics microprocessor control,and all kinds of different reading and

writing equipment.



Through figuring all kinds of different reading and writing equipment,and adopting reliable performance safety protection

devices real-time alarm system, and direction indicator interface, realizing the access intelligent control and management

by the mutual coordination .





The whole profile is stamped from the standard SS304, beautiful and generous shape, rust proof, durable, resisting

external damage, adapting standard electrical interface can easily integrate with access control devices into the equipment,

to provide civilized and orderly access for pedestrians, at the same time can prevent unauthorized persons access.



In addition, the system is specially designed the function to meet the fire prevention requirements to ensure that the passage

is unimpeded, convenient for pedestrians timely evacuating in emergency.



TECHNICAL SPECIFICATIONS



Model
SN-TT03
Case Material
SS304(1.2mm)
Arm Material
SS304, 38mm diameter
Production Process
CNC Laser Cutting
Size
1200*280*980mm(Customization acceptable)
Power input
AC100-240V,50/60Hz
Operation voltage
DC24V, 3A, Power: 40W
Electromagentic
Duty Cycle 100%
Barrier Arm Length
500mm
Passage Width
600mm
Passage direction
Single directional/Bi-directional(Optional)
Operating time
1S
Throughput Rate
30 persons/minute
MCBF
5,000,000 Cycles
Automatic Reset Function
Automatically locked within set time
LED Indicator
Yes
Operation Humidity
0~95%(No Freezing)
Operation Temperature
-20℃~+60℃
Operation Eenvironment
Indoor,Outdoor(Shelter)
Protection Level
IP45
Input Interface
Relay switch signal



MAIN FUNCTIONS AND FEATURES



1) The entire system runs smoothly, with a small noise and free of mechanical impact.



2) Semi-automatic mechanism, Maintenance Free



3) It has failure self-detect and alarm indication function, facilitating maintenance and application for the users.



4) It is provided with multiple operation modes for selection. It can either read card in double way for flow limit,

or reading card in a way while barring in the other, or read card in a way while free passage in the other.



5) It has automatic function of dropping arm when power off.



6) The equipment is provided with a unified, standard electric interface and is available to be integrated with

various read/write facilities to facilitate the system integration. It is able to realize far end control and management

with the help of administrative computer.



7) It has a function of reading card with or without memory, and it may be set up with the built-in small keyboard

in accordance with the requirements of the users.



8) Self resetting function, the system will cancel the people passing right when reading the card but not passing,



9) Direction indicator function, showing passing or prohibiting for the people



10) Prohibiting opposite direction passing, one side reading the card, the other side will lock when you passing

forcedly; the locking time can be set, and unlocked by the card.



11) Prohibiting illegal passing, the turnstile without the card, the locking time can be set, and unlocked by the card.



12) Anti-hit against function, when the turnstile touches the passing people, it will stop and after several seconds,

it will turn again.
