Parking Guidance 5s Vehicle Loop Detector 4 Increments For Access Control

Place of Origin	Shenzhen, China.
Brand Name	SINOMATIC
Certification	CE/ ISO
Model Number	PD-132

Product Details

Voltage:

220V, 110V, 24V, 12V

Operating Temperature:

-30 Degree To 70 Degree

Package:

Carton

Automatic Calibration Time:

2s To 5s

Voltage Tolerance:

AC: +10% / -15%; DC: ±15%

Power Consumption:

4.5VA

Highlight:

Parking Guidance Vehicle Loop Detector

5s Vehicle Loop Detector

4 Increments Vehicle Induction Loop

Payment & Shipping Terms

Minimum Order Quantity

Sample order accepted

Price

negotiable

Packaging Details

Carton/Plywood box/Pallet

Delivery Time

2-5 working days after payment received

Payment Terms

T/T, L/C, D/A, D/P, Western Union,

Supply Ability

3,0000pcs per month

Product Description

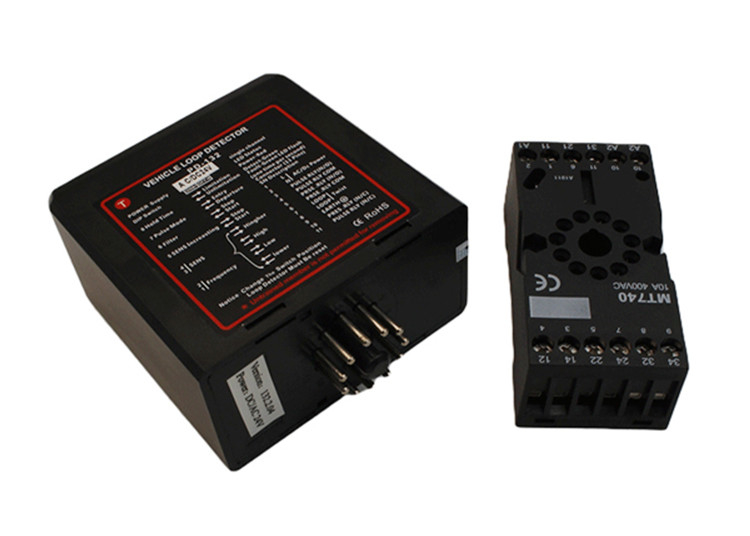

PD132 Vehicle Loop Detector for Access Control Systems

The PD132 single loop detector is designed for precise vehicle detection in various applications including access monitoring, security systems, and traffic management. This industrial-grade device provides reliable output signals for controlling gate mechanisms, operating barriers, managing traffic light systems, and activating card dispensers in parking facilities.

Primary Applications

Automatic Gate Systems

Traffic Light Control

Gate Drive Mechanisms

Operating Barriers

Parking Guidance Systems

Card Dispenser Activation

Key Features

High accuracy for speed measurement and traffic volume counting
Excellent operational stability in various conditions
Unaffected by meteorological and environmental changes
Industrial-grade design for durability
Adjustable sensitivity levels with 4 increments
Multiple output port support
Built-in fault self-detection function
Automatic barrier closure after vehicle passage
OEM and ODM support available

Technical Specifications

Voltage Tolerance (AC)	+10% / -15%
Voltage Tolerance (DC)	±15%
Supply Voltage	230V AC, 115V AC, 24V DC/AC, 12V DC/AC
Power Consumption	4.5VA
Output Relays	240V/5A
Operating Temperature	-20°C to +65°C
Storage Temperature	-40°C to +85°C
Housing Dimensions	78×40×108 mm (L×W×H)
Frequency Range	20 kHz to 170 kHz
Sensitivity	Adjustable in 4 increments
Loop Connection Wiring	Maximum length 20 meters, twisted at least 20 times per meter

Installation Guidelines

Install the detector in a convenient, weatherproof location as close to the loop as possible. Choose installation locations away from heat sources and maintain at least 10mm distance from other devices. Proper loop configuration and detector installation are essential for successful inductive loop detection system operation. Critical loop parameters include loop figure, size, turns, and installation methods.

Operation & Indicators

Work Indicator: During power-on self-calibration (approximately 1 second), the green LED flashes while red LED extinguishes. Vehicles should not be on loops during calibration. After calibration, green LED stops flashing and red LED extinguishes. Red LED illuminates when vehicle passes over loop.

Operation & Indication: During tuning, both green Channel LED and red Power LED illuminate for approximately 2 seconds, then green LED turns off. Loop faults cause Channel LED to flash. Green LED glows during vehicle detection. Red Power LED remains on when unit is powered.

Frequency Adjustment: Eliminate interference between neighboring wire loops or detectors by altering frequency settings.

Sensitivity Settings: Four sensitivity selections available, configured via DIP3 and DIP4 switches.
