RFID Long Range Outdoor Antenna Rs232/Rs485/Wiegand Output UHF Reader Automatic Gate Accessories
  • RFID Long Range Outdoor Antenna Rs232/Rs485/Wiegand Output UHF Reader Automatic Gate Accessories
  • RFID Long Range Outdoor Antenna Rs232/Rs485/Wiegand Output UHF Reader Automatic Gate Accessories
RFID Long Range Outdoor Antenna Rs232/Rs485/Wiegand Output UHF Reader Automatic Gate Accessories

RFID Long Range Outdoor Antenna Rs232/Rs485/Wiegand Output UHF Reader Automatic Gate Accessories

Place of Origin SHENZHEN, CHINA
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-UHF-1000
Product Details
Frequency:
860-868/902-928 MHZ
Frequency Hopping:
FHSS Or Fixed Frequency Set By Software
Reading Distance:
1-5M
Working Voltage:
DC+12V
Dimension:
227 × 227 × 60 Mm
Application:
Indoor/outdoor
Highlight:

UHF Reader Automatic Gate Accessories

,

RFID Reader Automatic Gate Accessories

Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
Carton
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
5,000 pcs per month
Product Description

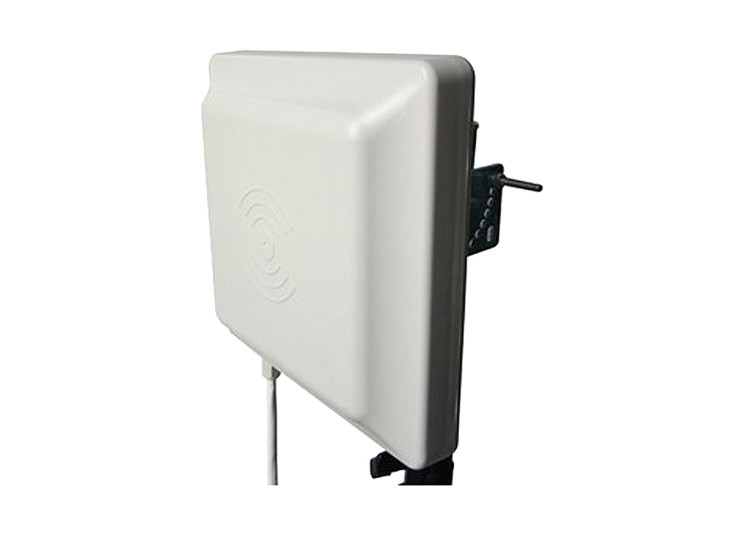

RFID Long Range Outdoor Antenna RS232/RS485/Wiegand Output UHF Reader
Product Overview
Model No.: UHF-1000

The UHF-1000 is a high-performance UHF RFID integrated reader designed with low power dissipation and high-integrated RFID chip solution. This advanced reader features long reading distance, high identification speed, multiple interfaces, and easy installation. It is widely used in logistics tracking, commodity inventory, cargo sorting, vehicle management, personnel management, asset management, medical systems, cold chain management, temperature monitoring, power monitoring, anti-counterfeiting systems, and production process control applications.
Applications
This UHF RFID reader supports multiple protocols, offers fast reading speeds, identifies multiple labels simultaneously, and features circular polarization antenna with compact design. Ideal for various RFID systems including:
  • Logistics and Warehouse Management
  • Parking Control Systems
  • Manufacturing Management
  • Product Anti-counterfeiting Detection
  • Club Management, Library Systems, Student Records, Attendance Management, and Swimming Pool Systems
RFID Long Range Outdoor Antenna Rs232/Rs485/Wiegand Output UHF Reader Automatic Gate Accessories 0
Key Features
  • Low power dissipation with high-integrated RFID chip solution
  • Supports EU 840~868MHz and US 902~928MHz working frequencies (customizable)
  • Compatible with EPC Global UHF Class 1 Gen2 / ISO18000-6C protocol RFID tags
  • Supports temperature sensor RFID tags, moisture sensor RFID tags, and other sensor RFID tags
  • Optimized multiple tags inventory algorithm with speeds exceeding 100 tags per second
  • FHSS or Fixed Frequency transmission
  • RF output power up to 30dBm (1dBm step adjustable)
  • Supports command, polling, and trigger modes
  • Independent or conjunctive EPC, TID, and USER inventory support
  • IAP firmware upgrading capability
  • Low power consumption with single +12V DC power supply
  • Multiple interface options: RS232, RS485, Weigand, RJ45 (TCP/IP, UDP), WiFi, and 4G
  • Built-in circular polarization antenna (8dB gain) or linear polarization antenna (12dBi gain)
  • Includes DEMO and SDK for development
  • Development support for Windows, Android, Linux and programming languages including C, C#, Java
Technical Specifications
Parameter Specification
Model No. UHF-1000
Item Name UHF RFID Long Range Reader 5-15M
Working Frequency National Standard (920~925MHz), America Standard (902~928MHz), or customized frequencies
Supported Protocol ISO18000-6B, ISO18000-6C (EPC GEN2)
Frequency Hopping FHSS or fixed frequency set by software
Working Mode Automatically reading card at regular intervals with configurable reading methods
Frequency Power 0~30dBm, adjustable via software
Reading Distance 1-5M
Reading Sensitivity Dual polarization reading
Reading Speed One label 64-bit ID number < 6ms
Antenna Built-in circular polarization antenna (8dB gain) or built-in linear polarization antenna (12dBi gain)
Interface RS485, RS232, Wiegand26, Wiegand34, RJ45
Working Voltage DC12V
Working Status Indication Buzzer
Power Consumption 1W
Working Temperature -20℃ ~ 80℃
Storage Temperature -40℃ ~ 125℃
Working Humidity 20% ~ 95% (non-condensing)
Dimensions 227 × 227 × 60mm
Signal Definition
Name Cable Color Function
DC+12V Red +9V～15V positive
GND Black Negative
TXD Brown RS232 signal output (PIN2)
RXD Yellow RS232 signal input (PIN3)
GND Blue RS232 grounding (PIN5)
Triger Gray Trig pin
DATA0/485A＋ Green Wiegand data 0 or 485 interface positive port
DATA1/485B－ White Wiegand data 1 or 485 interface negative port
