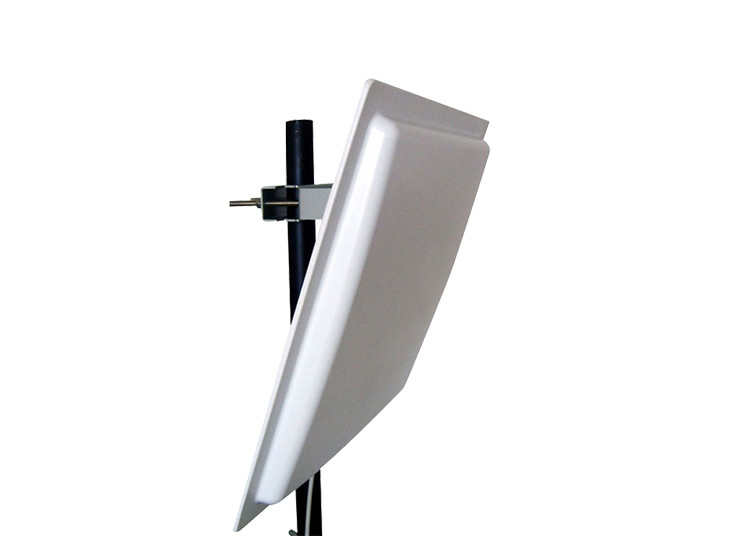

Long Distance Access Control Vehicle Build-In Linear Polarization Gain 12Dbi UHF RFID Passive Reader Electric Sliding Gate Hardware
  • Long Distance Access Control Vehicle Build-In Linear Polarization Gain 12Dbi UHF RFID Passive Reader Electric Sliding Gate Hardware
  • Long Distance Access Control Vehicle Build-In Linear Polarization Gain 12Dbi UHF RFID Passive Reader Electric Sliding Gate Hardware
Long Distance Access Control Vehicle Build-In Linear Polarization Gain 12Dbi UHF RFID Passive Reader Electric Sliding Gate Hardware

Long Distance Access Control Vehicle Build-In Linear Polarization Gain 12Dbi UHF RFID Passive Reader Electric Sliding Gate Hardware

Place of Origin SHENZHEN, CHINA
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-UHF-2000
Product Details
Frequency:
860-868/902-928 MHZ
Frequency Hopping:
FHSS Or Fixed Frequency Set By Software
Reading Distance:
5-15M
Working Voltage:
DC+12V
Dimension:
450mm*450mm*120mm
Weight:
9.5Kg
Highlight:

UHF RFID Passive Reader

,

Electric Sliding Gate Hardware Reader

,

Sliding Gate Hardware UHF RFID Reader

Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
Carton
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
5,000 pcs per month
Product Description
Long Distance Access Control Vehicle Build-In Linear Polarization Gain 12Dbi UHF RFID Passive Reader
Product Overview
Model UHF-2000 is a high-performance UHF RFID integrated reader designed with low power dissipation and advanced RFID chip technology. Featuring long reading distance, high identification speed, multiple interfaces, and easy installation, this reader is ideal for various industrial applications including logistics tracking, inventory management, vehicle access control, and production process monitoring.
Key Features
  • Low power consumption with highly integrated RFID chip solution
  • Supports EU 840-868MHz and US 902-928MHz frequency bands (customizable)
  • Compatible with EPC Global UHF Class 1 Gen2 / ISO18000-6C protocol RFID tags
  • Supports sensor RFID tags including temperature and moisture sensors
  • Optimized multi-tag inventory algorithm with speeds exceeding 100 tags per second
  • FHSS or fixed frequency transmission options
  • RF output power up to 30dBm with 1dBm step adjustment
  • Multiple operation modes: command, polling, and trigger
  • Independent or combined EPC, TID, and USER inventory support
  • IAP firmware upgrade capability
  • Low power operation with single +12V DC power supply
  • Multiple interface options: RS232, RS485, Weigand, RJ45 (TCP/IP, UDP), WiFi, and 4G
  • Built-in circular polarization antenna (8dB gain) or linear polarization antenna (12dBi gain)
  • Development support with DEMO and SDK for Windows, Android, Linux, and multiple programming languages
Technical Specifications
Model No. UHF-2000
Product Name UHF RFID Long Range Reader (5-15M)
Working Frequency National standard (920-925MHz), America standard (902-928MHz), or customized frequencies
Supported Protocols ISO18000-6B, ISO18000-6C (EPC GEN2)
Frequency Hopping FHSS or fixed frequency set by software
Operating Mode Automatic card reading at regular intervals with configurable reading methods
RF Power 0-30dBm, software adjustable
Reading Distance 5-15 meters
Reading Sensitivity Dual polarization reading
Reading Speed Less than 6ms for one 64-bit ID label
Antenna Built-in circular polarization antenna (8dB gain) or linear polarization antenna (12dBi gain)
Interfaces RS485, RS232, Wiegand26, Wiegand34, RJ45
Operating Voltage DC 12V
Status Indication Buzzer
Power Consumption 1W
Operating Temperature -20℃ to 80℃
Storage Temperature -40℃ to 125℃
Operating Humidity 20% to 95% (non-condensing)
Dimensions 450 × 450 × 120mm
Weight 9.5kg
Applications
Logistics and warehouse management, parking control systems, manufacturing management, product anti-counterfeiting detection, club management, library systems, student records, attendance management, and swimming pool access control.
Long Distance Access Control Vehicle Build-In Linear Polarization Gain 12Dbi UHF RFID Passive Reader Electric Sliding Gate Hardware 0
Signal Definition
Name Cable Color Function
DC+12V Red +9V-15V positive power supply
GND Black Negative ground
TXD Brown RS232 signal output (PIN2)
RXD Yellow RS232 signal input (PIN3)
GND Blue RS232 grounding (PIN5)
Trigger Gray Trigger pin
DATA0/485A+ Green Wiegand data 0 or 485 interface positive port
DATA1/485B- White Wiegand data 1 or 485 interface negative port
