90mA Car Radar Detector Anti Interference 100ms Barrier Sensor Detector
  • 90mA Car Radar Detector Anti Interference 100ms Barrier Sensor Detector
  • 90mA Car Radar Detector Anti Interference 100ms Barrier Sensor Detector
  • 90mA Car Radar Detector Anti Interference 100ms Barrier Sensor Detector

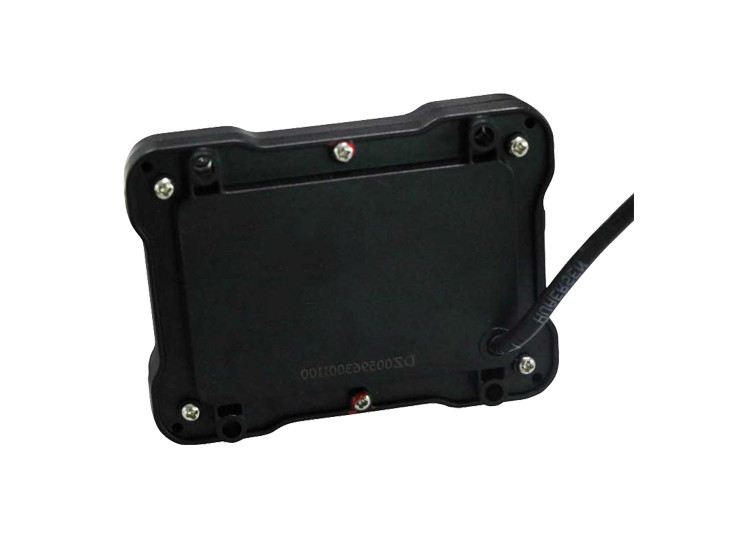

90mA Car Radar Detector Anti Interference 100ms Barrier Sensor Detector

90mA Car Radar Detector Anti Interference 100ms Barrier Sensor Detector

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE
Model Number TRD-201
Product Details
Product Name:
Car Radar Detector
Waterproof:
IP65
Supply Current:
Less Than 90mA/ 12V
Center Frequency:
24 GHz
Vertical Beam Width:
43°
Name:
Barrier Sensor Detector
Highlight:

90mA Car Radar Detector

,

Anti Interference Car Radar Detector

,

100ms Barrier Sensor Detector

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
US$50~US$55
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
3-7 working days
Payment Terms
T/T, Western Union,
Supply Ability
2000 pcs per month
Product Description
90mA Car Radar Detector Anti Interference 100ms Barrier Sensor Detector
Product Overview
Black Color 24 GHz Frequency Low Cost High Reliability Parking Gate Barrier Sensor Radar Detector
Radar Vehicle Detector Advantages
  • Convenient installation and maintenance
  • No need to damage road surfaces
  • No impact on vehicle access
  • Advanced technology with reliable and stable operation
  • High cost performance
  • Convenient working distance setting
  • All-weather operation capability
  • Compatible with straight poles and billboards/fence brake lever applications
The barrier radar detector operates on standard 12V DC power supply, adapting to 6V~18V voltage range with large voltage fluctuation tolerance. Low power consumption allows direct powering from barrier control panel without separate power supply device.
Technical Specifications
Center Frequency24GHz
Horizontal Beam Width11°
Vertical Beam Width43°
Distance Adjustment Range2.0 m～6 m (8 levels)
Response Time100ms
Vehicle Detection Miss Rate0.1%
Coverage Range0 m～6 m
Pedestrian Detection Miss Rate0.1%
False Detection Rate0.05%
Signal OutputSwitching value
Mechanical Properties
Dimensions105 mm × 78 mm × 26 mm
Weight85g
Waterproof RatingIP65
Supply Voltage RangeDC 6V～18V
Supply CurrentLess than 90 mA/12V
Operating Temperature-40℃～+85℃
HumidityRelative humidity 99% at 25℃
Main Features
Detection Accuracy
Utilizing millimeter wave working signal with high frequency operation, the radar detector provides directional accuracy and strong anti-interference capabilities. Detection rates exceed 99.9% for all vehicle types (cars, trucks, aluminum vehicles) and pedestrians.
Low Installation & Maintenance Cost
Easy installation with no road surface damage required. Maintenance-free design with high reliability and easy replacement. Solves barrier rod control problems while eliminating ground sense coil installation challenges.
Convenient Power Supply
Standard 12V DC power supply adapts to 6V~18V voltage range with large fluctuation tolerance. Low power consumption enables direct powering from barrier control panel without additional power supply devices.
All-Weather Operation
Millimeter wave frequency band operation requires no special heat dissipation. Continuous day and night operation capability under rain, snow, hail, and haze conditions. IP65 waterproof rating ensures protection against rainwater ingress and radar damage.
Installation Schematic
90mA Car Radar Detector Anti Interference 100ms Barrier Sensor Detector 0
