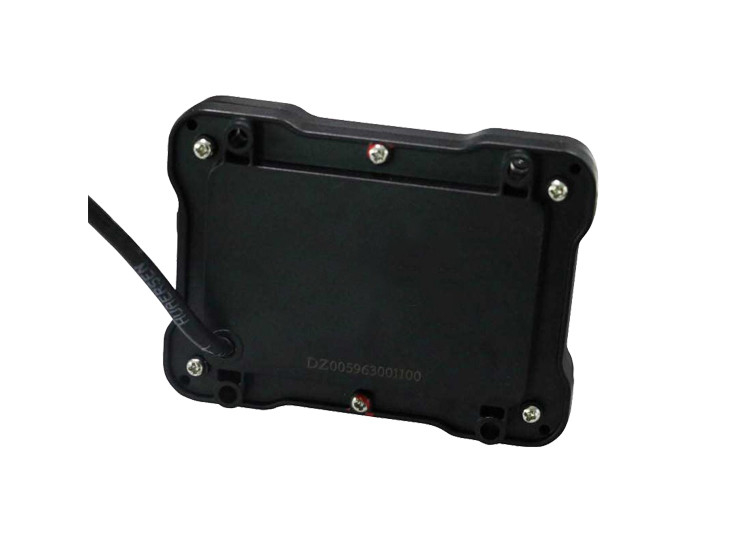

Microwave 90mA Vehicle Loop Detector 100ms IP65 Waterproof MTBF
IP65 waterproof Microwave automotive car barrier radar detector
Product Overview
Radar Vehicle Detector is a non-contact detection device for targets such as vehicles and pedestrians. It operates in the millimeter wave band, transmitting linear frequency-modulated continuous wave signals to perform high-speed real-time processing on target reflections for fast detection.
Key Advantages
This radar detector offers convenient installation and maintenance without road surface damage, no impact on vehicle access, advanced technology, reliable operation, high cost performance, and all-weather functionality. It's compatible with straight poles and billboard/fence barrier applications.
Technical Specifications
| Center Frequency |
24GHz |
Horizontal Beam Width |
11° |
| Vertical Beam Width |
43° |
Distance Adjustment Range |
2.0m～6m (8 levels) |
| Response Time |
100ms |
Vehicle Detection Miss Rate |
0.1% |
| Coverage Range |
0m～6m |
Pedestrian Detection Miss Rate |
0.1% |
| Signal Output |
switching value |
False Detection Rate |
0.05% |
Detection Accuracy
- Vehicle Inspection Miss Rate: 0.1%
- Pedestrian Detection Miss Rate: 0.1%
- False Detection Rate: 0.05%
Mechanical Properties
- Dimensions: 105mm × 78mm × 26mm
- Weight: 85g
- Waterproof: IP65
- Supply Voltage Range: DC 6V～18V
- Supply Current: less than 90mA/12V
- Operating Temperature: -40℃～+85℃
- Humidity: relative humidity 99% at 25℃
Reliability
The equipment operates continuously day and night under specified conditions with Mean Time Between Failure (MTBF) meeting: MTBF ≧ 15000 hours.
Application Environment
This radar detector is designed for scenarios where vehicles pass straight through barrier gates and cannot be used when vehicles turn through barrier gates.
Key Features
Zero Detection Blind Zone
The radar detection target distance starts at zero, eliminating blind spots completely.
All-Weather Operation
Operating in the millimeter wave frequency band with no special heat dissipation required. Functions continuously day and night under rain, snow, hail, and haze conditions. IP65 waterproof housing prevents water damage.
High Detection Accuracy
Millimeter wave technology provides high frequency operation, directional accuracy, and strong anti-interference capabilities. Detection rates exceed 99.9% for all vehicle types and pedestrians.
Work Reliability
IP65 waterproof design, low power consumption, extreme temperature adaptation, and continuous operation ensure product durability.
Flexible Installation
Installed on barrier machine exterior with vertical irradiation through vehicle or pedestrian gates. DIP switches allow easy distance adjustment for different gate widths.
Low Installation & Maintenance Costs
Easy installation, maintenance-free operation, high reliability, and simple replacement. Eliminates ground coil installation costs and maintenance difficulties.
Convenient Power Supply
Standard 12V DC power supply adapts to 6V~18V range with large voltage fluctuation tolerance. Can be powered directly from barrier control panel.
Environmental Adaptability
Features automatic environment detection technology without human operation. Suitable for straight pole barrier and billboard/fence barrier applications.
Installation Diagram
