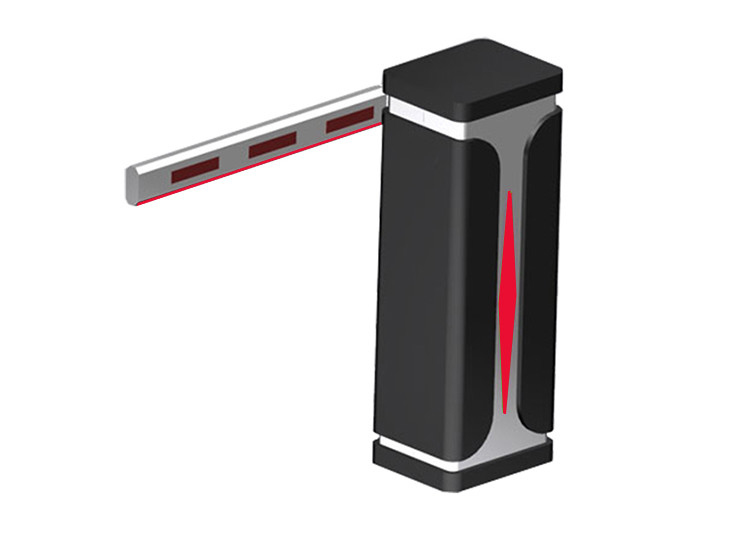

DC Motor Automatic Barrier Gate 10 Million MTBF 100W With Led Light

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-BG-S10
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 3,000pcs per month
Product Details
Speed Range 0.6s~6s Input Voltage 220V/110V ±10%, DC24V/12V
Duty Cycle 100% Traffic Light Indicator Supported
Motor Rated Power 100W Drive System DC Brush-less Servo Motor
High Light

DC Motor Automatic Barrier Gate

,

10 Million MTBF Automatic Barrier Gate

,

100W Entrance Barrier Gate

Leave a Message
Product Description

10 Million MTBF Easy change direction DC Servo Motor automatic barrier gate with led light



Boom barrier gate , also known as a boom barrier, is a bar, or pole pivoted to allow the boom to block vehicle
access through a controlled point. Typically the tip of a boom gate rises in a vertical arc to a near vertical
position. Boom gates are often paired either end to end, or offset appropriately to block traffic in both directions.



This parking access barrier provides a secure and convenient solution of stopping unauthorized vehicle or giving

access to authorized vehicle, for parking lots with high traffic flow such as toll gate, shopping center, exhibition

center, hospitals, airport etc.



This barrier redefines performance in non-stop toll applications. It is the ideal solution for very high frequented toll

stations providing great reliability and sustainability as well as comprehensive functionality.





Description
1) Opening/closing time: 0.6~6 sec. adjustable
2) Max. 6m straight arm
    Max. 5m folding arm
    Max. 4.5m fence arm
3) Inclusive of arm, 2 remoter, air switch and necessary parts for easy operation
4) Support Led light, loop detector, etc.
5) Optional housing color: Blace-white, Black-yellow
6) Easily change different boom type (straight/crank/fence)
7) Boom direction is exchangeable without replacing any parts



PRODUCT SPECIFICATIONS



Max Straight Arm 2.5M 3M 4.5M 6M
Opening time 0.6S 0.9S 1S~3S 2S~5S
Speed range 0.6S ~ 6S
Motor rated power 100W
Duty cycle 100%
Supply voltage 220V/110V ±10%, DC24V/12V
Frequency 50Hz/60Hz
Drive system DC brush-less servo motor
Housing dimensions H1000*L360*W300mm

Weight

(Without boom)

45KGS
Protection rate IP 54
Working temperature -35℃ to 70℃



ADVANTAGES FEATURES



1. NO SENSOR&LIMIT SWITCH

Innovative design which doesn’t need any sensor and limit switch.All control by SFMCU drive unit precisely.

Four main parts only, mechanical, motor, control unit, power supply.



2. MAINTENENCE FREE

DC Brushless Servo motor doesn’t need a carbon brush while brush motor request you replace the carbon

brush in a certain time. Galvanized and powder coated parts are anti-rust ensure long termusage.

And no other smaller parts need to be maintain too.



3. 24/7 CONTINUS OPERATION

With a very smooth and quiet motorized drive mechanism, Open

and close very stable, offer maximum reliability at fast speeds, in 7*24 hours non-stop usage.



4. SPEED ADJUSTABLE

Our DC servo barrier gate allows you to set opening and closingspeed according to requirements. Shorter arm,

the faster speed can be set.



5. AUTO-REVERSE FUNCTION

When arm falling and meets obstacles, arm will auto reverse to prevent further damages.



6. MULTIPLE INTERFACES

* Wire Control Signal Input(open&close&stop)

*Infrared Photocells

*Loop Detector

* R&G Light signal (Up&Down Limit signal output optional),

*can use for counting purpose also

*Arm Presence Detection(Optional)

* RS485 Communication(Optional)

* More If Required



7. EASY INTEGRATION

Access Reader or Push button or remote controller can be used totrigger the barrier gate to open via a

simply dry contact signal.After delay timer elapsed, barrier gate will close automatically byitself in a certain

time(optional function)



8. USER FRIENDLY

Motorized arms provide comfortable passage while maintaining ahigh level and high density of car flow

management, such as in toll gate.



9. AUTO-RECOVERY

When power off, barrier arm can be lifted up by manual for a freeexit. When power supply is restored,

Barrier gate will automatically return to close position.



10. Auto Testing Mode

Control board can set auto testing mode



Spring selection


The barrier gate is well-adjusted before delivery. If need to cut the boom shorter, please re-adjust the spring

balance to ensure the smooth operation of the barrier. Also you can adjust the speed to slower or faster when

arm made longer or cut shorter


1.The length of spring prevails in kind, designing change without notice. The spring selection please refer to the

spring selection table in the Appendix I of the Manual or which sticks on the door of the barrier cabinet.


2. Spring installation, dis-assembly and replacement
Dismantlement steps: Keep the boom at vertical (open) position, see figure1, loosen the spring fixing nuts on the

bottom of the spring by adjustable or 8th spanner, unscrew the fastening wing nuts in the bottom of the spring by

manual, then take off the spring.The steps for installation and dis-assembly the spring are the opposite.


3. Spring force adjustment
When power off, adjust the springs balance to make sure the arm will stay in the angle 45-60 degrees towards the

horizontal, and not going down or
