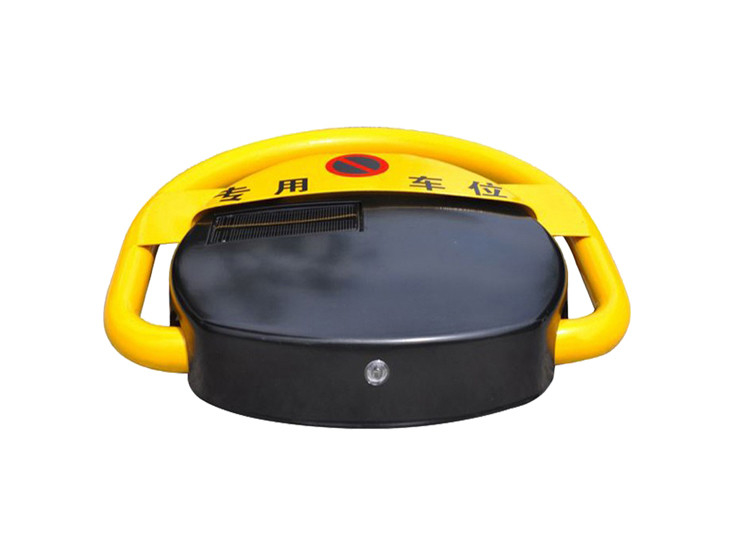

60mm Down Solar Parking Lock IP65 Waterproof Remote Controller

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-BW-8S
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 3-5 working days after payment received
Payment Terms T/T, Western Union, MoneyGram, , L/C, D/A, D/P
Supply Ability 3,000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Remote Distance ≤30m Rising Height Standard 390 Mm
Down Height 60mm Solar Panel Included
Alarm Function Yes IP IP65
High Light

60mm Down Solar Parking Lock


IP65 Waterproof Solar Parking Lock


Remote Controller Rechargeable Parking Lock

Leave a Message
Product Description

New Energy Automatic WiFi Smart Rechargeable Remote Controller Solar Parking Lock


General description


Solar Remote Parking Lot are designed for locking your private parking area, to protect it, make it secure and

prevent unauthorized people/ drivers from using your private parking spot. With automatic remote control for up

and down movement. This product can offer improved security around you home or office car parking location.




1. Original design and 180° two-way rocker.
2. Waterproof ,rustproof and bearing weight up to 5 tons .
3. Lead-acid battery or lithium battery optional.
4. Charge automatically under solar (optional)
5. suitable for all parking place and all kinds of car.

6. Heavy Duty and Durable

7. Rechargeable Battery with Long Continuous Use




1, Pressure Resistance: The parking lock shall endure a pressure of 500kg without damage under declining


2, Self locking: The parking lock can not be distorted permanently by external force except by the owner.

3, Manual Operation: Handily operate the rocker up and down to take out the batery for recharging or replacing.

4, Sealing: The IP protection grade is 65, which can fully prevent the dust and the lock can be rinsed with water

without causing any damage.

5, Power-off on resistance: The power will be automatic switched off on external forces unaffordable in the lifting/

declining of parking lock to protect the electrical motor from being damaged.

6, Power shortage indication: When the power storage is not enough to start the parking lock, the luminotron on

the parking lock will flicker for three times to remind the people to recharge the battery in time.

7, Reset after the alarm on external force: If the parking lock is forced to decline in lifting status, the front/back

angle of the rocker will change under the external force. and the parking lock will alarm to remind the extemal

force applier to remove external force or remind the managerial staff to make treatment. The rocker will resct

automatically after 5~10 seconds. Remark: Do not keep the alarm long under alarming mode, or the control

panel shall be damaged easily.

8. Reset after the removal of external force: When the external force is removed, the internal mechanisms will

reset the rocker declined by external force automatically and quickly. So please mind the safety.

9, Theft protection: The position of the foundation for parking lock and ground installation shall be out of the

large external cover. The cover can be opened with key by users only. Thus the theft protection method is applied.




Model SN-BW-8S
power voltage DC6V 7AH
Quiescent current(mA) ≤0.85Ah
Material 3.0mm steel rolling
Size 460*495*390mm
Up hight 390mm
Down hight 60mm
Up and down time 5-6s
Remote control distance ≤50
Working temperature -30 ~ +65
Lead Acid Battery charging time 12 hours
Waterproof/dust-proof IP67
N/W 7.5Kgs
G/W 8Kgs
Packing dimension(carton box) 460*460*100mm




1. All items have 24 month quality guarantee and 12 month warranty
2. Custom design shape and logo, for large amount, custom logo available for free.
3. Supported by professional engineers.
4. Special discount of our distributors or agents in their area.
5. Packing in standard export carton, suggest you pack it by wooden case to protect the products


For standard item
10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-7 working days longer
