170kHz 100ms Vehicle Loop Detector 4 Increments Single Channel 230VAC
  • 170kHz 100ms Vehicle Loop Detector 4 Increments Single Channel 230VAC
  • 170kHz 100ms Vehicle Loop Detector 4 Increments Single Channel 230VAC
  • 170kHz 100ms Vehicle Loop Detector 4 Increments Single Channel 230VAC

170kHz 100ms Vehicle Loop Detector 4 Increments Single Channel 230VAC

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number PD-132
Product Details
Sensitivity:
Adjustable In 4 Increments
Pacakge:
Carton
Reaction Time:
100ms
Signal Holding Time:
Unlimited
Operating Temperature:
-20°C To +65°C
Output Mode:
Electric Relay
High Light:

100ms Vehicle Loop Detector

,

Vehicle Loop Detector 4 Increments

,

230VAC Induction Loop Car Detector

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
2-5 working days after payment received
Payment Terms
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability
3,0000pcs per month
Product Description

Single Channel Relay Output Boom Barrier Parking Lot System Black Color Loop Vehicle Detector



PRODUCT FEATURES



1. Compatible with parking management system.
2. Easy installation and operation.

3. Connects one inductive loop(Single channels).

4. Application for Parking lot entrances Vehicle detection, Parking lot space information acquisition system,

Electronic police traffic lights snap shot system, Traffic monitoring system etc.

5. Safe, beautiful, economic, comfortable.



Hot sale single channel vehicle loop detector for Vehicle Access Control System
Authorization CE & ISO9001
Power supply 230VAC,115V AV, 24V DC/AC, 12V DC/AC optional
Sensitivity Adjustable in 4 increments
Reaction time 10ms
Channel Single
Operating temperature -40ºC ~ +80º
Relative humidity <90%
Environmental compensation Automatic drift compensation
Output mode electric relay
Loop inductance Ideal is 100μH to 300μH(Connection included)



PRODUCT ADVANTAGES


1. The accuracy of speed measurement and traffic volume is high.
2. The work stability is good.
3. It is not affected by changes in meteorological and traffic environment.
4  Industrial grade design 5 sensitivity levels adjustable.
5. Supports multi output ports
6. Fault self detected function
7. Realized barrier close automatically after car pass.

8. Supports OEM and ODM.


OUR SERVICES



Welcome OEM&ODM orders:

1) Logo printing on products;
2) Customized color box or carton;
3) Any your ideas on products we can help you to design and put it into production.



PRODUCT SPECIFICATIONS



SPECIFICATIONS FOR PD-132 LOOP DETECTOR
Voltage tolerance
AC
+10% / -15%
DC
±15%
Supply voltage
230V AC , 115V AC, 24V DC/AC, 12V DC/AC ( See the label on the detector)
Power Consumption
4.5VA
Output relays
240V/5A
Operating temperature
-20°C to +65°C
Storage temperature
-40°C to +85°C
Size of Housing:
78x40x108 mm (L x W x H)
Frequency range:
20 kHz to 170kHz
Sensitivity
Adjustable in 4 increments
Loop connection wiring
Maximum length 20 meters, twisted at least 20 times per meter


DETAIL FUNCTION AND FEATURES



1) Reset Switch: The reset switch enables the detector to be manually reset during registering and testing and it

is a process of system recovery


2) Selectable Pulse Time: This feature sets the length of time that the pulse relay will be lasting for 1 Second or

0.5 Seconds


3) Pulse Relay Selection: The Pulse Relay may be configured to energize on detection of a vehicle or when the

vehicle leaves the loop


4) Sensitivity Reinforcement: This feature sets the un-detecting level to a maximum sensitivity to prevent failing

to detect vehicles as big trucks


5) Switch Sensibility Adjustable: 4 sensitivity setting are available on the switches to change sensitivity


6) Switch Frequency Adjustable: 4 frequency settings are available to prevent signal interference with neighboring

loops


7) Filtering Option: This option is used to provide a delay between detection of the vehicle and switching of the output

relay. This relay is normally used to prevent false detection of small or fast moving objects


8) Permanent Presence Option: This feature ensures the detection of the vehicle will be maintained when the vehicle

stays within the loop area for extended periods


9) AC220V ,AC110V , DC12V ,DC24V available.

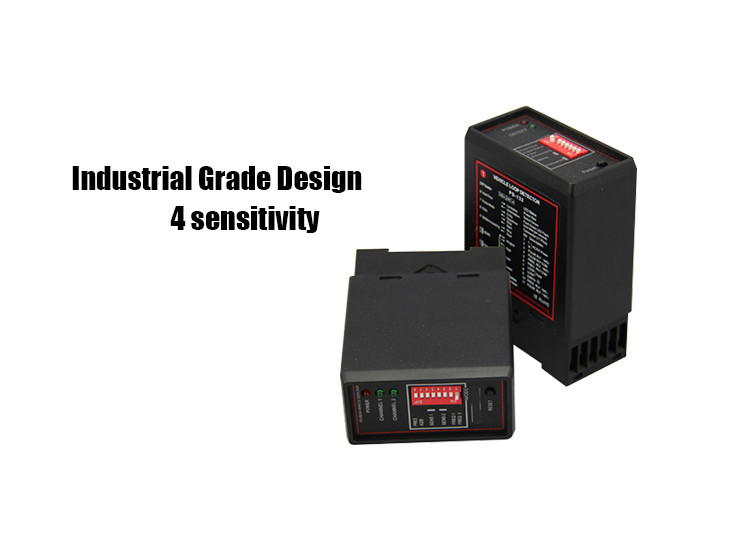

170kHz 100ms Vehicle Loop Detector 4 Increments Single Channel 230VAC 0
