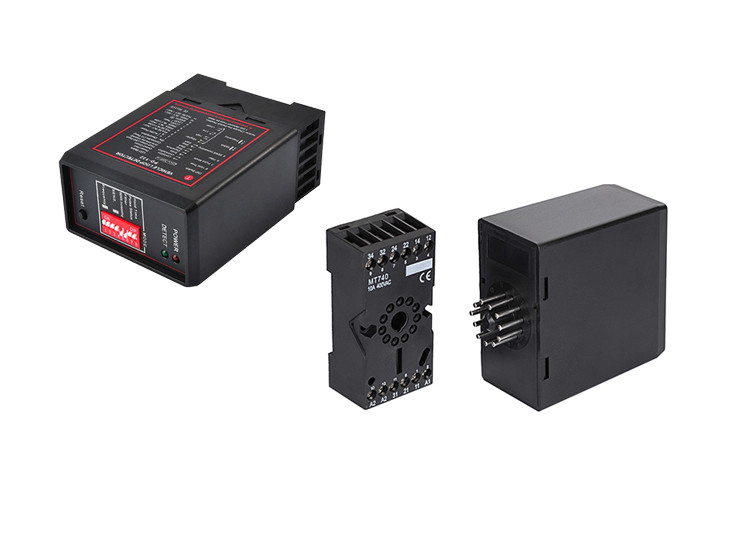

240V 5A 3 Increments Vehicle Loop Detector Reset Switch PD132

Place of Origin	Shenzhen, China.
Brand Name	SINOMATIC
Certification	CE/ ISO
Model Number	PD-132

Product Details

Voltage Available:

230VAC , 115V AC, 24V DC/AC, 12V DC/AC

Operating Temperature:

-20°C To +65°C

Sensitivity:

4 Levels

Pacakge:

Carton

Reaction Time:

100ms

Signal Holding Time:

Unlimited

Highlight:

3 Increments Vehicle Loop Detector

240V 5A Vehicle Loop Detector

Reset Switch Road Loop Detector

Payment & Shipping Terms

Minimum Order Quantity

Sample order accepted

Price

negotiable

Packaging Details

Carton/Plywood box/Pallet

Delivery Time

2-5 working days after payment received

Payment Terms

T/T, L/C, D/A, D/P, Western Union,

Supply Ability

3,0000pcs per month

Product Description

240V 5A 3 Increments Vehicle Loop Detector Reset Switch PD132

Vehicle Access Control Unlimited Signal Holding Time Loop Detector PD132

Loop detectors work with vehicle detection loops to create inductance from magnetic fields for sensing vehicular traffic and enhancing access control systems. Buried underground beneath roadways or driveways, these loops connect to inductive loop vehicle detectors to identify vehicle presence, commonly used at traffic intersections and access points.

Product Features

Key Selling Points

Dual relay output capability
Visual loop frequency indication
Presence and pulse output modes
Simple installation and operation

Primary Functions

Parking control and management
Accurate vehicle counting
Comprehensive traffic analysis
Advanced traffic control systems
Secure access control solutions

Application Areas

Toll collection systems
Parking barrier control
Vehicle access control
Motorized gates and doors
Industrial control systems

Technical Specifications

Parameter	Specification
Model	PD132
Supply Voltage	230V AC, 115V AC, 24V DC/AC, 12V DC/AC (refer to detector label)
AC Voltage Tolerance	+10% / -15%
DC Voltage Tolerance	±15%
Power Consumption	4.5VA
Output Relays	240V/5A
Operating Temperature	-40°C to +65°C
Storage Temperature	-40°C to +85°C
Frequency Range	20 kHz to 170 kHz
Reaction Time	100ms
Signal Holding Time	Unlimited
Sensitivity	Adjustable in 3 increments
Loop Inductance	Total loop plus connection wiring: 50μH to 1000μH (ideal range: 100μH to 300μH)
Loop Connection Wiring	Maximum length 20 meters, twisted at least 20 times per meter
Housing Dimensions	78x40x108 mm (L x W x H)

Main Functions and Features

Reset Switch: Manual reset capability for system registration, testing, and recovery processes
Selectable Pulse Time: Configurable pulse relay duration of 1 second or 0.5 seconds
Pulse Relay Selection: Configurable to energize upon vehicle detection or departure
Sensitivity Reinforcement: Maximum sensitivity setting to prevent missed detection of large vehicles
Adjustable Sensitivity: Four sensitivity settings for precise detection calibration
Adjustable Frequency: Four frequency settings to prevent interference with adjacent loops
Filtering Option: Detection delay feature to prevent false triggers from small or fast-moving objects
Permanent Presence Option: Continuous vehicle detection for extended stationary periods
Voltage Compatibility: Supports AC220V, AC110V, DC12V, and DC24V power sources
