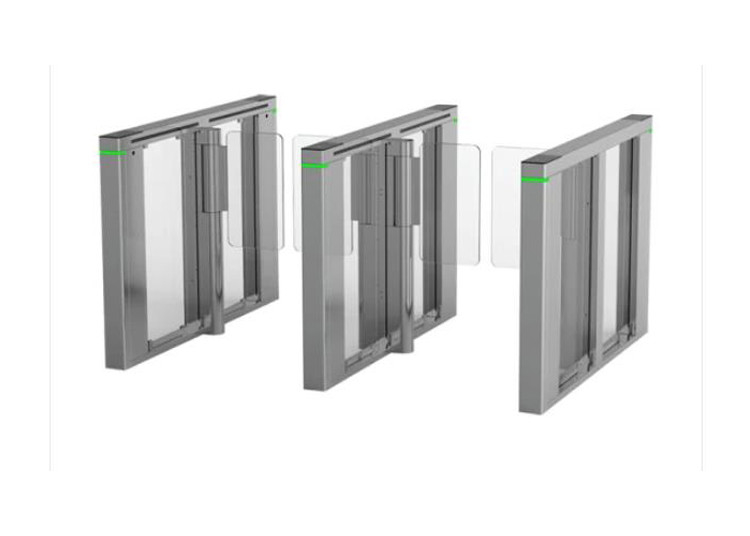

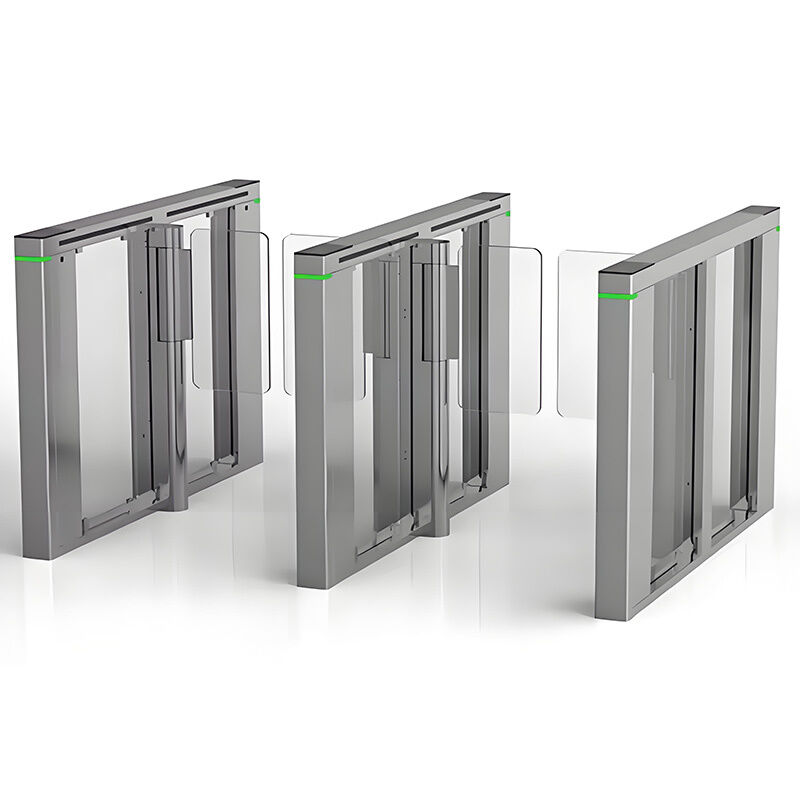

DC Motor 10mm Acrylic Glass Barrier Gate RS485 SS For Pedestrian

Place of Origin SHENZHEN, CHINA
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HSG02
Minimum Order Quantity 1
Price negotiable
Packaging Details PLYWOOD BOX
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 500 pcs per month
Product Details
Motor 24V/40W DC Motor Normal Running Life > 5 Million Times
Passing Rate 35-45 Persons/Min Pass Width 500mm To 1000mm
Sensor 4 Pairs At Least Origin Shenzhen China
High Light

DC Motor Glass Barrier Gate

,

10mm Acrylic Glass Barrier Gate

,

RS485 SS Pedestrian Swing Gate

Leave a Message
Product Description

Shenzhen China Manufacturer Pedestrian Access Checkpoint Control Glass Barrier Gate

GENERAN DESCRIPTION

SINOMATIC High-end swing gate: it is mainly used for the management of passageway entrance and exit. It has the
characteristics of fast opening, safety and convenience, etc. It is the ideal management and dredge equipment for
pedestrians' high-frequency access and exit. It is widely used in airports, subway stations, stations, wharves, scenic
spots, parks, shopping malls, office buildings, pedestrian passages and other places.

It is safer and more reliable than other operating methods. In an emergency, when the flow of people is congested, under
the strong impact of the crowd, the door wings can be pushed forward to safely evacuate the flow of people without causing
accidental casualties.

Product advantages
1. No noise.
2. Years of experience in drive research and development;
3. The frame basically adopts the anti-cutting handbag edge design;
4. Imported electronic components are selected for the infrared sensor;
5. The movement drive adopts high temperature quenching to treat the gear drive, with high strength and not easy
to wear;
6. Unique drawing pattern of the frame;
7. The middle acrylic partition can be customized with light effect pattern;

Product specifications


Dimension1200*150*1000mm
Case MaterialSS304 stainless steel,acrylic, aluminum
Pass width500-1000mm
Material thickness1.2mm SS304, 10mm Acrylic
Passage directionSingle directional / Bi-directional
Passing rate35-45 persons/min
Opening methodID / IC card reader, infrared sensor, etc.
Communication interfaceDry contact / RS232/RS485
AUL≥5million times
Infrared sensor4 pairs
Power90-100w
Working temperature-20ºC~75ºC
Working environmentIndoor
Power inputAC100V~240V
MechanismDC24V brushless motor
Protective functionEncoder limit, clutch anti-collision, infrared anti-pinch, illegal intrusion infrared alarm


MAIN FUNCTION AND FEATURES

1. The device adopts DC brushless motor, which supports at least 5 million normal passages.

2. The device adopts multiple pairs of infrared detection sensors, and adopts anti-tailing tracking control technology,
which can be passed by authorized personnel. When unauthorized personnel enter, an audible and visual alarm will
be issued.
3. The device integrates a voice module which can customize the voice broadcast content according to user
requirements.
4. The device uses LED to indicate the traffic direction and display the traffic status.
5. The device has anti-shock function. When there is intrusion, the door wing is automatically locked.
6. The equipment has self-test, self-diagnosis, automatic alarm function, sound and light alarm function including
illegal intrusion alarm, reverse intrusion alarm, trailing alarm etc.
7. The device has an automatic reset function. When the gate does not pass within the specified time after opening
the door, the system will automatically cancel the user's permission for the current pass and set the transit time.
8. The device supports flexible configuration of the access status (controlled, free traffic, no traffic) in the inbound
and outbound directions.
9. The device supports the memory mode which enables continuous and fast traffic.

DC Motor 10mm Acrylic Glass Barrier Gate RS485 SS For Pedestrian 0

FAQ

1. What is your products biggest advantage?
-------- DC Brushless Motor , no maintenance all the of life, No Attrition, Low Noise ,Hight Intelligence.

2. What is  your flap gates opening and closing time ?
-------- <=0.4s .
3. What is the Swing barrier gate Working environment ?
-------- They can be used indoor and outdoor(with shelter)
4. Can I customize it ?
--------Yes, Welcome . We are the manufacturer , We are welcome OEM .
5. What's you warranty?
-------- 1 year time warranty .
