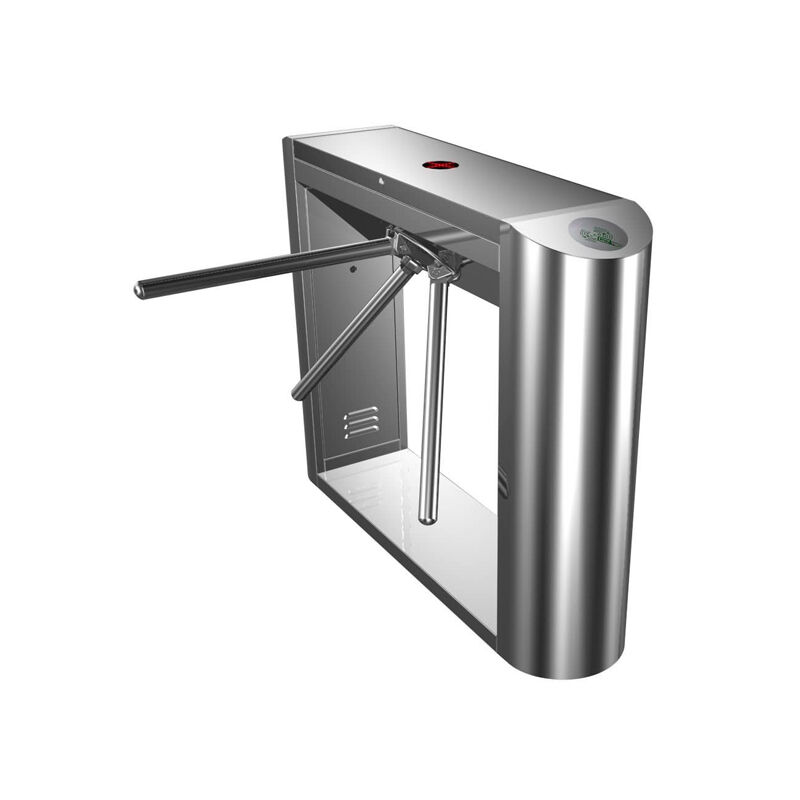

SS304 IP44 Tripod Turnstile Gate with 500mm Arm for Secure Access Control
  • SS304 IP44 Tripod Turnstile Gate with 500mm Arm for Secure Access Control
  • SS304 IP44 Tripod Turnstile Gate with 500mm Arm for Secure Access Control
  • SS304 IP44 Tripod Turnstile Gate with 500mm Arm for Secure Access Control

SS304 IP44 Tripod Turnstile Gate with 500mm Arm for Secure Access Control

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT03
Product Details
Material:
SS304
IP Rate:
44
Input:
Dry Contact
Arm Lenght:
500mm
Control Signal:
Relay
IP Grade:
IP44
Highlight:

IP44 SS304 Tripod Turnstile Gate

,

Tripod Turnstile Gate 500mm Arm

,

Access Control Turnstile Gate 50HZ

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,
Supply Ability
3,000pcs per month
Product Description
IP44 SS304 Tripod Turnstile Gate - 500mm Arm for Public Access Control
SINOMATIC SN-TT03 is a single-lane tripod turnstile series engineered for smooth, silent operation with minimal power consumption. Constructed from durable stainless steel, this compact design is ideal for confined workspaces while maintaining robust security performance.
Product Overview
The SN-TT03 tripod turnstile features arms that remain locked in position to secure restricted areas. Upon validation through integrated RFID or fingerprint readers, the arms unlock to permit authorized access. An optional built-in REX button provides convenient exit without authentication requirements. During emergencies or power failures, the arms automatically collapse to ensure unobstructed emergency egress.
Key Features
  • Reliability: Alloy steel tripod hub and SUS304 stainless steel construction for maximum durability
  • Power Efficiency: Electromagnetic locks operate in standby mode until activation
  • Low Maintenance: Patented oil lubrication system reduces service requirements
  • Safety Compliance: Arms automatically unlock and drop during power outages or emergencies
  • Secure Design: Smooth finish with no exposed fasteners and anti-tailgating protection
  • User-Friendly: Ergonomic design with visual indicators for access status
  • Integrated Reader Options: Factory-tested plug-and-play installation with card or fingerprint readers
Technical Specifications
Model SN-TT03
Dimensions 1200*280*980mm
Material 1.2mm SS304 Stainless Steel
Passage Width 550mm
Passage Direction Single/Bi-directional
Passage Rate 30-35 persons/minute
Operating Time 0.2 seconds
Power Input AC100-240V, 50/60Hz
Working Voltage 24V
Operating Environment Indoor/Outdoor
Temperature Range -20℃ to +60℃
Humidity Range 30% to 95%
Advanced Functions
  • Smooth operation with minimal noise and mechanical impact
  • Semi-automatic mechanism requiring minimal maintenance
  • Self-diagnostic system with alarm indicators for easy troubleshooting
  • Multiple operation modes including bidirectional flow control and free passage options
  • Automatic arm release during power failure
  • Standard electrical interfaces for seamless system integration
  • Remote control and management capabilities via administrative computer
  • Card reading with memory options and user-configurable settings
  • Automatic reset function for unused access permissions
  • Direction indicators showing passage status
  • Anti-forced entry protection with configurable lock timing
  • Anti-collision safety feature with automatic recovery
