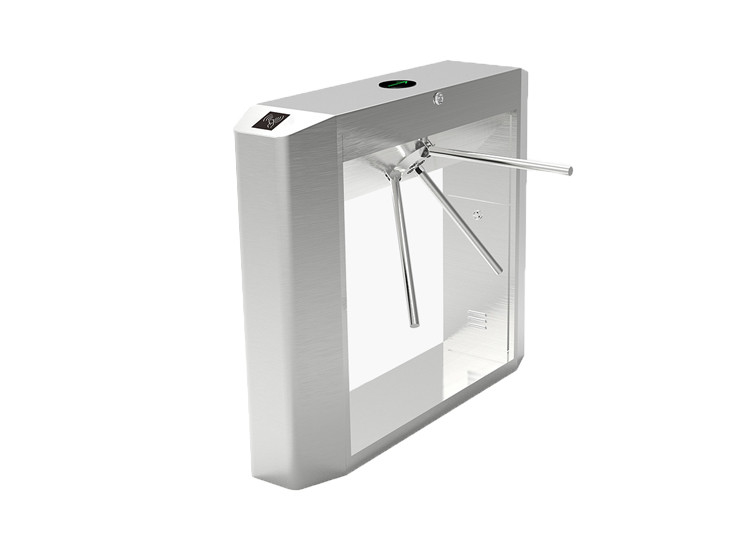

IP44 SS304 Tripod Turnstile Gate 500mm Arm For Public Access Control 50HZ

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-TT03
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 3,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Material SS304 IP Rate 44
Input Dry Contact Arm Lenght 500mm
Control Signal Relay IP Grade IP44
High Light

IP44 SS304 Tripod Turnstile Gate


Tripod Turnstile Gate 500mm Arm


Access Control Turnstile Gate 50HZ

Leave a Message
Product Description

Factory Wholesale Card Reader Tripod Turnstile Gate Bridge Slim Type For Public Access Control




SINOMATIC SN-TT03 is a single-lane tripod turnstile series designed for smooth and silent operation and draws very

little power. It's made of stainless steel which makes it highly durable. It is also surprisingly compact and designed to

operate in small workspaces.


SN-TT03  tripod arms are normally held in a locked position, thus denying access to the secured side. Upon SN-TT03's

reader (RFID and/or fingerprint) positively recognizing a user's valid access card or fingerprint, its tripod arms unlock,

thus allowing users passage to the secured side. Option for built-in REX button allows users to conveniently exit the

secured side without needing to use their access card or fingerprint. During emergencies and power outages the tripod

arms completely collapse, thereby ensuring users FAST unencumbered exit to safety. SN-TT03 provides both security

and convenience, all in a very durable compact design.




• Alloy steel tripod hub and SUS304 stainless steel casework & tripod arms ensure long-lasting durability

• Power conservation. Electro-magnetic locks remain in "standby mode" until turnstile is activated

• Patented oil lubrication system reduces need for maintenance

• High quality electrical components


Safety Features

• Tripod-arms unlock & drop during emergencies /power loss

• All smooth finish. No exposed screws or fasteners

• Visual indicator for access granted (or denied)

• Ergonomic design makes card and fingerprint authentication fast & simple for users.

• Secure. Supports Anti-tailgating.


Built-in Reader Integration(optional)

• This series ships support integrated with our customers' preference for either card or fingerprint access control reader.

This greatly reduces installation time & expense.

• This series and associated access control readers are all factory-tested prior to shipping.

• We provide true plug'n play turnstiles with the lowest possible total cost of ownership in the industry!




1.2mm SS304
Pass Width
Passage direction
Single directional/Bi-directional
Pass rate
30-35 persons/minute
Operating time
0.2 seconds
Power input
Working voltage
Working humidity
Working temperature
Working environment
Communication interface
Dry contact
Mould machine core+mould bracket+Domestic solenoid




1) The entire system runs smoothly, with a small noise and free of mechanical impact.


2) Semi-automatic mechanism, Maintenance Free


3) It has failure self-detect and alarm indication function, facilitating maintenance and application for the users.


4) It is provided with multiple operation modes for selection. It can either read card in double way for flow limit,

or reading card in a way while barring in the other, or read card in a way while free passage in the other.


5) It has automatic function of dropping arm when power off.


6) The equipment is provided with a unified, standard electric interface and is available to be integrated with

various read/write facilities to facilitate the system integration. It is able to realize far end control and management

with the help of administrative computer.


7) It has a function of reading card with or without memory, and it may be set up with the built-in small keyboard

in accordance with the requirements of the users.


8) Self resetting function, the system will cancel the people passing right when reading the card but not passing,


9) Direction indicator function, showing passing or prohibiting for the people


10) Prohibiting opposite direction passing, one side reading the card, the other side will lock when you passing

forcedly; the locking time can be set, and unlocked by the card.


11) Prohibiting illegal passing, the turnstile without the card, the locking time can be set, and unlocked by the card.


12) Anti-hit against function, when the turnstile touches the passing people, it will stop and after several seconds,

it will turn again.
