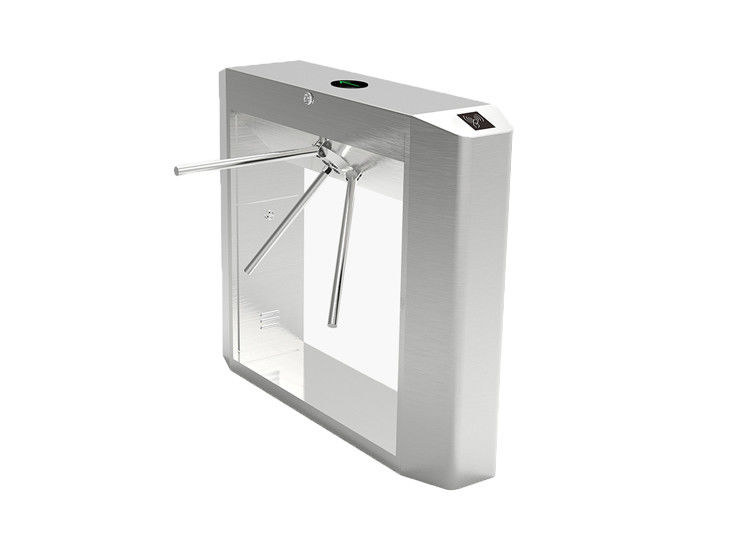

500mm Arm IP44 Access Control Tripod Turnstile Gate with 0.2S RFID Reader
  • 500mm Arm IP44 Access Control Tripod Turnstile Gate with 0.2S RFID Reader
  • 500mm Arm IP44 Access Control Tripod Turnstile Gate with 0.2S RFID Reader
  • 500mm Arm IP44 Access Control Tripod Turnstile Gate with 0.2S RFID Reader
500mm Arm IP44 Access Control Tripod Turnstile Gate with 0.2S RFID Reader

500mm Arm IP44 Access Control Tripod Turnstile Gate with 0.2S RFID Reader

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT03
Product Details
Housing Dimension:
1200(L)*280(W)*980(H)mm
Packing Dimension:
1300*380*1150mm
Material:
SS304
IP Rate:
44
Input:
Dry Contact
Arm Lenght:
500mm
Highlight:

IP44 Access Control Tripod Turnstile

,

500mm Arm Access Control Tripod Turnstile

,

0.2S RFID Waist Height Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
3,000pcs per month
Product Description
500mm Arm IP44 Access Control Tripod Turnstile Bridge 0.2S RFID
Bridge Waist Height RFID Reader Access Control Tripod Turnstile
The bridge type tripod turnstile serves as the fundamental series in pedestrian auto gate systems. Designed for ease of use, stability, and cost-effectiveness, it features ample internal space to support integration with various third-party authentication devices including QR code scanners, face recognition readers, fingerprint readers, card collectors, coin collectors, and ESD testers.
Key Features
  • Start up self-test function with automatic recovery in locked state
  • Adjustable direction settings: one-way or bi-directional passage
  • Emergency channel free pass functionality
  • Standard IO interface reserved for third-party access control systems
  • LED indication for passway status monitoring
  • Automatic gate locking after card swipe without passage
  • Prevents pedestrian retrograde movement
  • Anti-tailgating protection
Technical Specifications
Model SN-TT03
Size 1200*280*980mm
Material 1.2mm SS304
Pass Width 550mm
Passage Direction Single directional/Bi-directional
Pass Rate 30-35 persons/minute
Operating Time 0.2 seconds
Power Input AC100-240V, 50/60HZ
Working Voltage 24V
Working Humidity 30%~95%
Working Temperature -20℃~+60℃
Working Environment Indoor/outdoor
Communication Interface Dry contact
Mechanism Mould machine core + mould bracket + Domestic solenoid
Main Functions and Features
  1. Smooth system operation with minimal noise and no mechanical impact
  2. Semi-automatic mechanism requiring no maintenance
  3. Failure self-detect and alarm indication for easy maintenance
  4. Multiple operation modes including bidirectional card reading, one-way card reading with opposite barring, and one-way card reading with free opposite passage
  5. Automatic arm drop function during power outages
  6. Standard electric interface for integration with various read/write facilities and remote computer management
  7. Card reading with or without memory capability, configurable via built-in keyboard
  8. Self-resetting function cancels passage rights when card is read but not used
  9. Direction indicator showing passage or prohibition status
  10. Anti-retrograde protection with configurable locking time and card-based unlocking
  11. Anti-illegal passage protection with configurable locking time and card-based unlocking
  12. Anti-collision function that stops upon contact and resumes after delay
