Tripod Turnstile Gate
>
|
| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-TT03 |

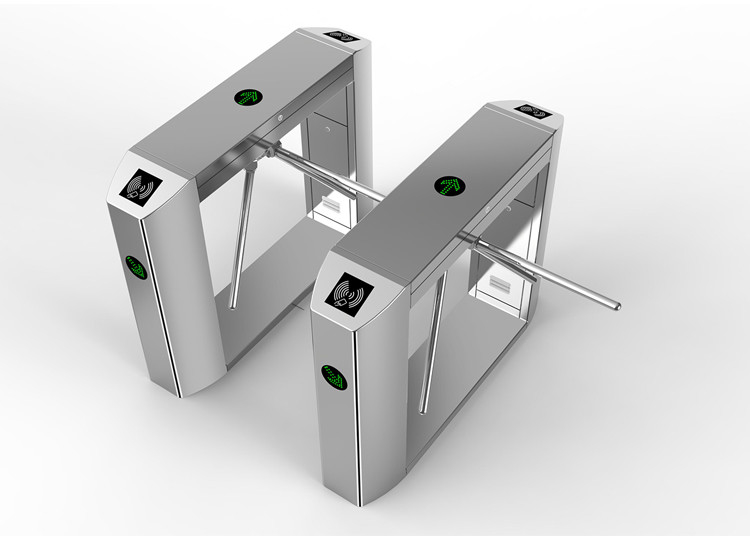

No Noisy Shockproof Fail-Safe 304 Stainless Steel 3 Arm Turnstile Gate
PRODUCT DESCRIPTIONS
A turnstile, also called a barrier gate or turnstile, is a form of gate which allows one person to pass at a time.
It can also be made so as to enforce one-way traffic of people, and in addition, it can restrict passage only to
people who insert a coin, a ticket, a pass, or similar. Thus a turnstile can be used in the case of paid access
(sometimes called a faregate or ticket barrier when used for this purpose), for example to access public transport,
a pay toilet, or to restrict access to authorized people, for example in the lobby of an office building.
PRODUCT CLASSIFICATIONS
Semi-Automatic Type: When power off, it will be dropped the arm to the request of fire protection. When the
power is on again, the arms can also lift by hand. Once an open signal is given, it need to manual push the
arm to rotate.
PRODUCT SPECIFICATIONS
| Structure: | GB 304 stainless steel , rust-proof, sturdy and durable, easy to use, and maintenance free |
| Operation: | Semi automatic |
| Weight: | 60kg |
| Gate rod length: | 500 (mm) |
| Gate rod rotation: | one-direction, two-direction (selectable) |
| Aisle width: | 600mm (at the maximum) |
| Traffic speed: | 30 people / min |
| Power voltage: | AC 90- 220V ±10%, 50HZ/60HZ |
| Input interface: | +12V level signal or 12V pulse signal with a pulse width > 100ms |
| Ambient temperature: | -20℃~60℃ |
| Relative humidity: | less than 95%, non-condensing |
| Operating environment: | indoor, outdoor |
MAIN FUNCTIONS AND FEATURES
1) The entire system runs smoothly, with a small noise and free of mechanical impact.
2) Semi-automatic mechanism, Maintenance Free
3) It has failure self-detect and alarm indication function, facilitating maintenance and application for the users.
4) It is provided with multiple operation modes for selection. It can either read card in double way for flow limit,
or reading card in a way while barring in the other, or read card in a way while free passage in the other.
5) It has automatic function of dropping arm when power off.
6) The equipment is provided with a unified, standard electric interface and is available to be integrated with
various read/write facilities to facilitate the system integration. It is able to realize far end control and management
with the help of administrative computer.
7) It has a function of reading card with or without memory, and it may be set up with the built-in small keyboard
in accordance with the requirements of the users.
8) Self resetting function, the system will cancel the people passing right when reading the card but not passing,
9)Direction indicator function, showing passing or prohibiting for the people
10)Prohibiting opposite direction passing, one side reading the card, the other side will lock when you passing
forcedly; the locking time can be set, and unlocked by the card.
11) Prohibiting illegal passing, the turnstile without the card, the locking time can be set, and unlocked by the card.
12) Anti-hit against function, when the turnstile touches the passing people, it will stop and after several seconds,
it will turn again.
Extend functions
1.Nonstandard Progran customized.
2.LED Counting function.
3.Turnstile shape can do customized.
4.Voice Prompt Function.
5.Can add constant temperature during the low temperature place.
Applications
1. Office: Business Building, Government Office, Etc.;
2. Science And Education Unit: Colleges And Universities, Research Institutes, Libraries, Etc.;
3. Business Services: Supermarkets, Shopping Malls, Hotels, Clubs, Banks, Etc.;
4. Leisure And Entertainment Venues: Parks, Scenic Spots, Amusement Parks, Etc.
5. Transport Site: Bus Station, Railway Station, Subway Station, Airport And So On.
Dimensions
1200 x 280 x 990mm (Size Customization Acceptable)
