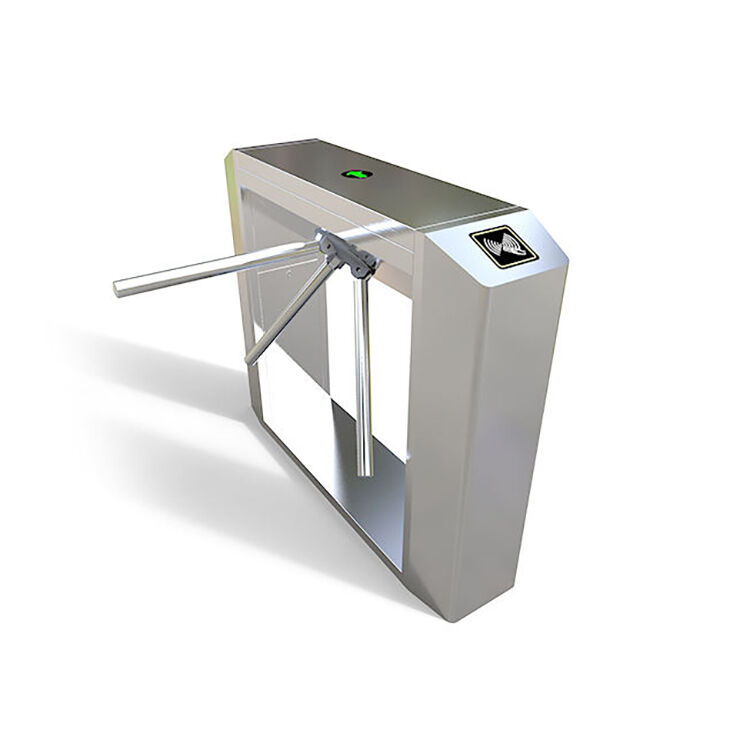

Shockproof Fail Safe IP44 Tripod Turnstile Gate with 3 Arm Access Control
  • Shockproof Fail Safe IP44 Tripod Turnstile Gate with 3 Arm Access Control
  • Shockproof Fail Safe IP44 Tripod Turnstile Gate with 3 Arm Access Control
  • Shockproof Fail Safe IP44 Tripod Turnstile Gate with 3 Arm Access Control
Shockproof Fail Safe IP44 Tripod Turnstile Gate with 3 Arm Access Control

Shockproof Fail Safe IP44 Tripod Turnstile Gate with 3 Arm Access Control

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT03
Product Details
Material Thickness:
1.2 At Least
Dimension:
1200*280*1000mm
Packing Dimension:
1300*380*1150mm
Color:
Silver For Stainless Steel
Service Life:
More Than 5 Million Times
IP Rate:
44
Highlight:

30 People / Min Tripod Turnstile Gate

,

Shockproof Fail Safe Tripod Turnstile Gate

,

IP44 SUS304 Tripod Security Gates

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,
Supply Ability
3,000pcs per month
Product Description
Shockproof Fail Safe Tripod Turnstile Gate - 30 People/Min IP44 SUS304
No Noisy Shockproof Fail-Safe 304 Stainless Steel 3 Arm Turnstile Gate
Product Overview
A turnstile gate is a specialized access control system that allows one person to pass at a time. It can enforce one-way traffic flow and restrict passage to authorized individuals using coins, tickets, passes, or access cards. This makes it ideal for paid access applications like public transport systems or for securing authorized entry to office buildings and facilities.
Product Classification
Semi-Automatic Type: When power is off, the arm automatically drops for fire safety compliance. When power is restored, the arms can be manually lifted. Once an open signal is received, the arm requires manual push to rotate.
Technical Specifications
Structure GB 304 stainless steel, rust-proof, sturdy and durable, easy to use, and maintenance free
Operation Semi automatic
Weight 60kg
Gate rod length 500mm
Gate rod rotation One-direction, two-direction (selectable)
Aisle width 600mm (maximum)
Traffic speed 30 people/min
Power voltage AC 90-220V ±10%, 50HZ/60HZ
Input interface +12V level signal or 12V pulse signal with a pulse width > 100ms
Ambient temperature -20℃ to 60℃
Relative humidity Less than 95%, non-condensing
Operating environment Indoor, outdoor
Main Functions & Features
  • Smooth operation with minimal noise and no mechanical impact
  • Semi-automatic mechanism, maintenance free
  • Self-diagnostic and alarm indication for easy maintenance
  • Multiple operation modes including bidirectional card reading, one-way card reading with opposite barring, or one-way card reading with free passage
  • Automatic arm drop function during power failure
  • Standard electric interface for integration with various read/write devices
  • Remote control and management capability via administrative computer
  • Card reading with or without memory function
  • Self-resetting function cancels passage rights when card is read but not used
  • Direction indicator showing passage status
  • Opposite direction passage prevention with configurable lock time
  • Illegal passage prevention with configurable lock time
  • Anti-collision function that stops rotation upon impact and resumes after delay
Extended Functions
  • Custom programming for non-standard applications
  • LED counting function
  • Customized turnstile shapes
  • Voice prompt function
  • Constant temperature heating for low-temperature environments
Applications
  • Office: Business buildings, government offices
  • Science & Education: Colleges, universities, research institutes, libraries
  • Business Services: Supermarkets, shopping malls, hotels, clubs, banks
  • Leisure & Entertainment: Parks, scenic spots, amusement parks
  • Transportation: Bus stations, railway stations, subway stations, airports
Dimensions
1200 x 280 x 990mm (Custom sizes available)
