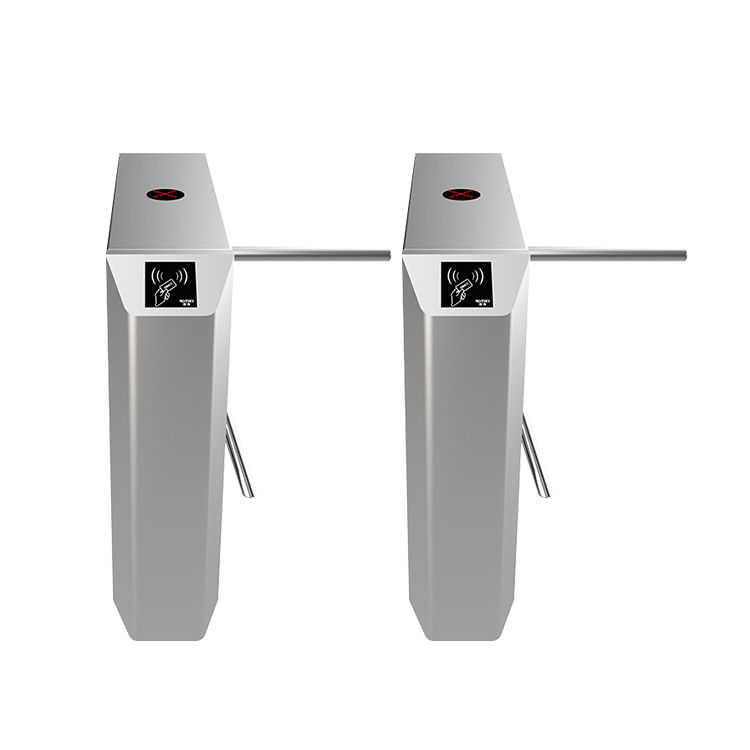

DC24V IP44 Semi Automatic Vertical Tripod Turnstile with RS485 Control
  • DC24V IP44 Semi Automatic Vertical Tripod Turnstile with RS485 Control
  • DC24V IP44 Semi Automatic Vertical Tripod Turnstile with RS485 Control
  • DC24V IP44 Semi Automatic Vertical Tripod Turnstile with RS485 Control
DC24V IP44 Semi Automatic Vertical Tripod Turnstile with RS485 Control

DC24V IP44 Semi Automatic Vertical Tripod Turnstile with RS485 Control

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT03
Product Details
Arm Length:
510mm
IP Grade:
IP44
Warranty:
12 Months
Control Signal:
Dry Contact
Dimension:
120x28x98cm
Weight:
60KG
Highlight:

DC24V Semi Automatic Tripod Turnstile

,

IP44 Semi Automatic Tripod Turnstile

,

RS485 Vertical Tripod Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
3,000pcs per month
Product Description
DC24V IP44 Semi Automatic Tripod Turnstile RS485 Vertical Tripod Turnstile
Professional Controller CE Certificate Semi-Automatic Tripod Turnstiles Smart Door
Turnstiles offer significant advantages over conventional gates, including better manpower utilization, increased reliability, and enhanced security. This mechanism enables single-person entry only after verification through an integrated Access Control Module.
SINOMATIC SN-TT03 series Tripod turnstiles provide a compact, cost-effective, fast-operating, and reliable entrance solution for both internal and external applications with high pedestrian traffic flow.
Main Functions and Features
  • Auto-reposition function: Automatically locks if passengers don't pass within regulated time after card read
  • Bi-directional or uni-directional passing options
  • Automatic arm drop during power failure
  • Self-lock function: Arm locks automatically after passenger passing
  • LED passing arrow indicates direction for passenger guidance
  • Standard interfaces for easy connection with various readers that send relay signals
  • RS485 interfaces enable direct computer connection
  • Stable operation with minimal noise
Product Specification
Basic Parameter
Product Size 1200*280*980mm
Material SUS304 stainless steel
Internal Structure Steel frame structure
Pass Width 550mm
Operating Temperature -20℃~60℃ indoor or outdoor
Passage Direction Single directional/Bi-directional
Technical Parameter
Power Input AC220V,50Hz/ AC110V, 60Hz
Driving Voltage DC24V 5A
Driving Mode Solenoid
Reacting Time 0.2S
Throughput Rate 30p/m
Instruction Indicator LED
External Equipment IC card reader, ID card reader, code scanner, face recognition module, fingerprint recognition module (optional)
DC24V IP44 Semi Automatic Vertical Tripod Turnstile with RS485 Control 0 DC24V IP44 Semi Automatic Vertical Tripod Turnstile with RS485 Control 1
Why Choose Us
  • 20 years of OEM/ODM experience in access control turnstiles and barriers
  • Prompt delivery with standard model stock availability
  • OEM/ODM orders accepted to meet specific client requirements
  • Trial orders available for product testing before bulk orders
  • Online technical support for business partners
  • Multiple transportation options: sea shipment, air cargo, or express delivery
  • Factory visits welcome on working days
