DC24V IP44 Semi Automatic Tripod Turnstile RS485 Vertical Tripod Turnstile
  • DC24V IP44 Semi Automatic Tripod Turnstile RS485 Vertical Tripod Turnstile
  • DC24V IP44 Semi Automatic Tripod Turnstile RS485 Vertical Tripod Turnstile

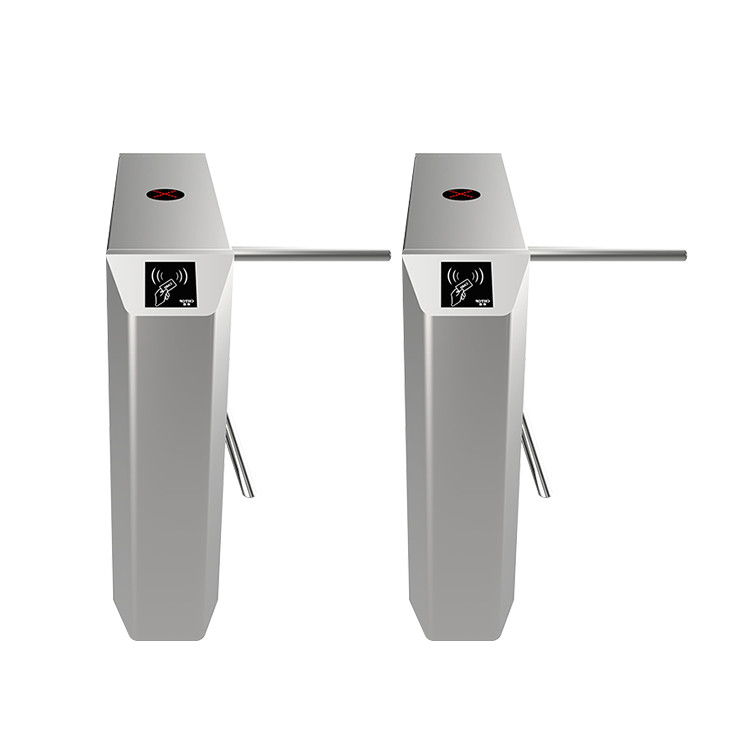

DC24V IP44 Semi Automatic Tripod Turnstile RS485 Vertical Tripod Turnstile

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT03
Product Details
Arm Length:
510mm
IP Grade:
IP44
Warranty:
12 Months
Control Signal:
Dry Contact
Dimension:
120x28x98cm
Weight:
60KG
High Light:

DC24V Semi Automatic Tripod Turnstile

,

IP44 Semi Automatic Tripod Turnstile

,

RS485 Vertical Tripod Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3,000pcs per month
Product Description

Professional Controller CE Certificate Semi-Automatic Tripod Turnstiles Smart Door



Product description



The advantages of using a turnstile compared to a conventional gate include the better utilization of manpower,

increased reliability and improved security. This mechanism allows a single emplyee to enter into the premises

only after verification through the Access Control Module that can be integrated onto the turnstile.



SINOMATIC SN-TT03 serials Tripod turnstile offer a compact, cost-effective, fast operating, easy to use, reliable

entrance solution for internal or external use in areas where there is a large and constant flow of people.







MAIN FUNCTIONS AND FEATURES



1. Auto-reposition function: After card read, passengers don't pass within regulated time period, turnstile will be locked automatically



2. Bi-direction passing or uni-direction



3. When power off, arm will be dropped automatically



4. Self-lock function: arm will be locked automatically after passenger passing



5. LED passing arrow can show direction to indicate passenger to pass



6. Standard interfaces are convenient for connection with different readers which can send relay signal



7. RS485 interfaces can connect turnstile with computer directly



8. Stable running with little noise.







PRODUCT SPECIFICATION



Basic Parameter
Product Size:
1200*280*980mm
Material:
SUS304 stainless steel
Internal Structure:
steel frame structure
Pass Width:
550mm
Operating Temperature:
-20℃~60℃ indoor or outdoor
passage direction:
Single directional/Bi-directional
Technical Parameter
Power Input:
AC220V,50Hz/ AC110V, 60Hz.
Driving Voltage:
DC24V 5A
Driving Mode:
Solenoid
Reacting time:
0.2S
Throughput Rate:
30p/m
Instruction:
Indicator LED
External Equipment:
IC card reader, ID card reader, code scanner, face recognition module, fingerprint recognition module (optional)





DC24V IP44 Semi Automatic Tripod Turnstile RS485 Vertical Tripod Turnstile 0





DC24V IP44 Semi Automatic Tripod Turnstile RS485 Vertical Tripod Turnstile 1





Why choose us:



1. Our Factory has 20 years OEM/ODM experiences in the line of access control turnstile and barrier.
2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
4. Trial order is acceptable. Clients can buy sample and test it before bulk order.

5. Online technical support makes it carefree to be our business partner.

6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
