24V BLDC Motor Robust Automatic Flap Barrier RS485 1.2mm SS304

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-FB04
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T or western Union
Supply Ability 3,000pcs per month
Product Details
Size 1200x300x1000mm Control Voltage DC24V
Motor BLDC Motor Arm Material Acrylic/PU Foam
Material 1.2mm Thickness SS304 Surface Treatment Wire Drawing
High Light

Robust Automatic Flap Barrier


BLDC Motor Automatic Flap Barrier


1.2mm SS304 Flap Barrier Turnstile

Leave a Message
Product Description

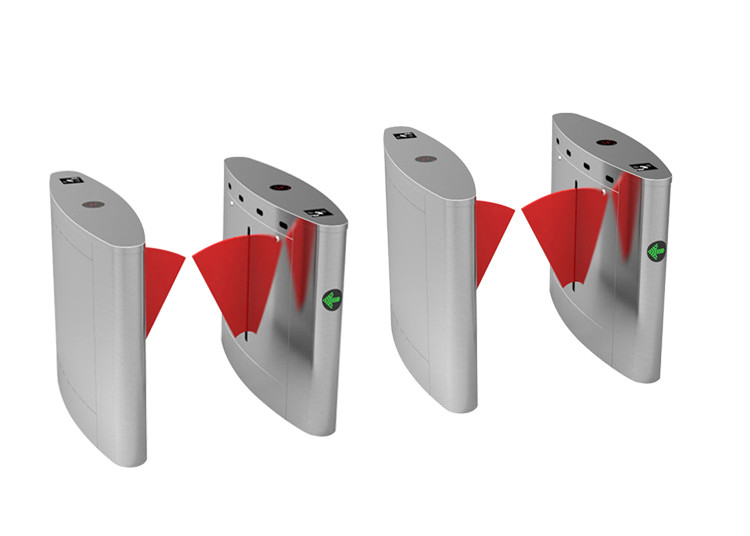

Maintenance Free 24V BLDC Motor Robust Automatic Flap Barrier Gate




Flap Turnstiles offer a reliable and efficient method to ensure only authorized users are allowed access to each

area of a building. The SINOMAITC SN-FB04 model is an attractive flap turnstile that is easily capable of handling

high volume and abusive conditions. The compact unit makes it simple to construct a multiple lane set-up while the

variety in colors allows you to match this turnstile perfectly to your lobby or branding.






1.2mm SS304
Arm material
Acrylic/PU foam
Pass Width
Passage direction
Single directional/Bi-directional
Pass rate
30-35 persons/minute
Operating time
0.2 seconds
Power input
Working voltage
Working humidity
Working temperature
Working environment
Indoor/outdoor with shelter
Communication interface
RS485, Dry contact
BLDC motor
Infrared sensor
4 pairs
5,000,000 Cycles
Bus station, Factories, Toilets, Library, etc








24V BLDC Motor Robust Automatic Flap Barrier RS485 1.2mm SS304 024V BLDC Motor Robust Automatic Flap Barrier RS485 1.2mm SS304 1



1.When power is off, flap arms will open automatically, which is complying with fire safety requirements


2.The whole system runs smoothly, low noise, no mechanical impact


3.Infrared sensor alarm function, in case of illegal intrusion and reverse intrusion


4. Illegal intrusion, trailing alarm, reverse intrusion gate automatically closes


5.Anti-shock function, the arm is automatically locked when no open signal is received.


6.Telescopic arms are adjustable synchronously (for double pendulum)


7.Anti-reverse function, the turnstile alarms if someone wants to entry in the reverse direction


8.Anti-intrusion function, the turnstile is locked automatically until valid opening signal input


9.It can be connected with a variety of devices such as access control systems, consumer systems, electronic

ticket systems, biometric systems, and electrostatic testers.


10.The one-way or two-way control personnel can enter and exit, and the infrared sensing in and out channels.


11.Voice prompt function.


12.Remote control and management can be achieved directly through the management computer.


13. Anti-trailing function, the turnstile alarm if someone wants to burst in without permission


14.Easy to install and maintain
