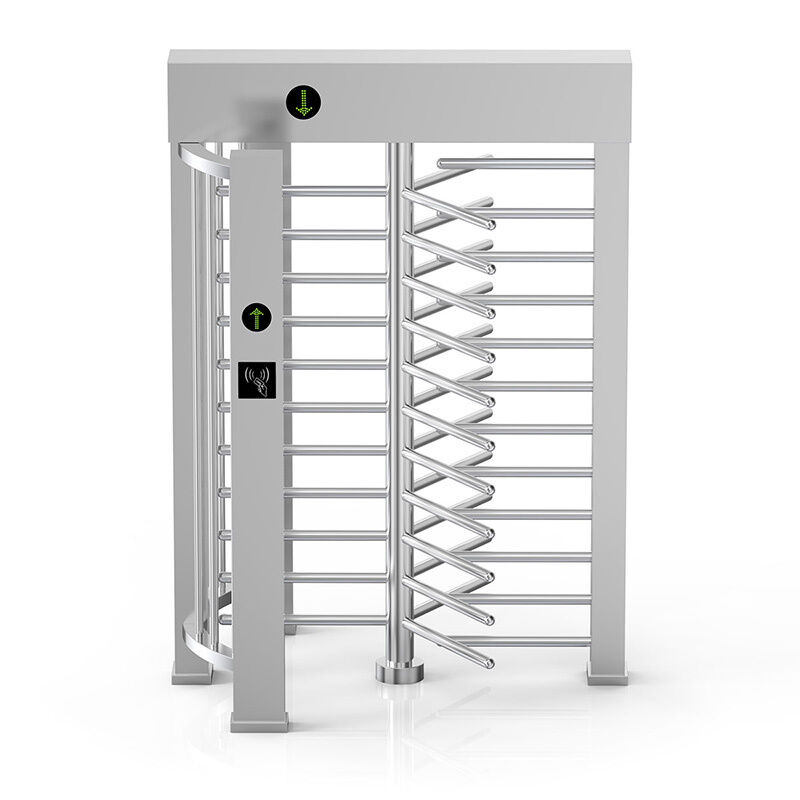

120° Rotors Full Height Turnstile with 600mm Width and Stainless Steel Construction
  • 120° Rotors Full Height Turnstile with 600mm Width and Stainless Steel Construction
  • 120° Rotors Full Height Turnstile with 600mm Width and Stainless Steel Construction
  • 120° Rotors Full Height Turnstile with 600mm Width and Stainless Steel Construction
  • 120° Rotors Full Height Turnstile with 600mm Width and Stainless Steel Construction
120° Rotors Full Height Turnstile with 600mm Width and Stainless Steel Construction

120° Rotors Full Height Turnstile with 600mm Width and Stainless Steel Construction

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FH01
Product Details
Access Device Input Voltage:
Dry Contact Or 12V Electrical Level Signal
Thickness Of Housing:
1.2 Or 1.5mm
OEM/ODM:
Supported
Arm Length:
550mm To 600mm
Passage Width:
About 600mm
Rotor:
120 Degree Or 90 Degree
Highlight:

Recognition Counter Full Height Barrier

,

120° Rotors Full Height Barrier

,

600mm Width Turnstile Full Height

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,
Supply Ability
3,00pcs per month
Product Description
120° Rotors Recognition Counter Full Height Barrier 600mm Width
120° Rotors or 90° Rotors Selectable Fingerprint Device Recognition Counter Available Full Height Barrier
Product Overview
SINOMATIC Full Height Turnstile provides advanced entry access control solutions for high-security environments including prisons, stadiums, and construction sites. Constructed from finished and brushed stainless steel (or painted mild steel), this barrier offers waterproof, anti-corrosion properties and exceptional rigidity, making it suitable for both indoor and outdoor applications.
The system features LED indicator lights on both the top cover and body side to clearly display entry acceptance or denial status. Available with either 120° or 90° rotors, this single-door turnstile supports single or bi-directional passage control with a robust 600mm passage width.
Main Features & Functions
  • Long-life performance with high operational dependability and fast response
  • Automatic regulated hydraulic buffer device ensures quiet, impact-free operation
  • Selectable single or bi-directional passage control
  • Automatic reset function: arms lock automatically within 5 seconds (configurable) if entry is delayed
  • Anti-tailing function: only one person can pass at a time
  • Fail-safe operation: arms open automatically during power outages (fail-secure optional)
  • LED indicators (red × indicates no entry; green → indicates entry permitted)
  • Rainproof housing with anti-corrosion coating in 304 or 316 stainless steel
  • Mechanical drive unit with solenoid locking mechanism eliminates expensive electric motors and reduces maintenance costs
  • Smart rotation control: auto-rotates to next idle position if rotated more than half, returns to current position if rotated less than half
  • Adjustable tensioner controls rotation force for easy operation by all users
  • Special key-locked housing prevents tampering
  • Innovative mounting surface ensures simple, convenient installation
  • Compatible with various access control devices: IC/ID card readers, barcode scanners, fingerprint readers (access controller required)
  • Automatic authority cancellation if user fails to pass within prescribed time (default 5 seconds)
Technical Specifications
ITEM SPECIFICATIONS
Power supply AC220±10%V 50Hz/AC110±10% 60Hz
Power consumption 40W
Access device input voltage Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
Motor No motor
Max flow rate 30 persons per minute
Arm length 500mm to 600mm
Working temperature -20°C to 60°C
Why Choose SINOMATIC
  • Over 20 years of OEM/ODM experience in access control turnstiles and barriers
  • Prompt delivery with standard model inventory
  • OEM/ODM orders accepted to meet specific client requirements
  • Trial orders available for testing before bulk purchasing
  • Comprehensive online technical support
  • Multiple transportation options: sea shipment, air cargo, or express delivery
  • Factory visits welcome on working days
