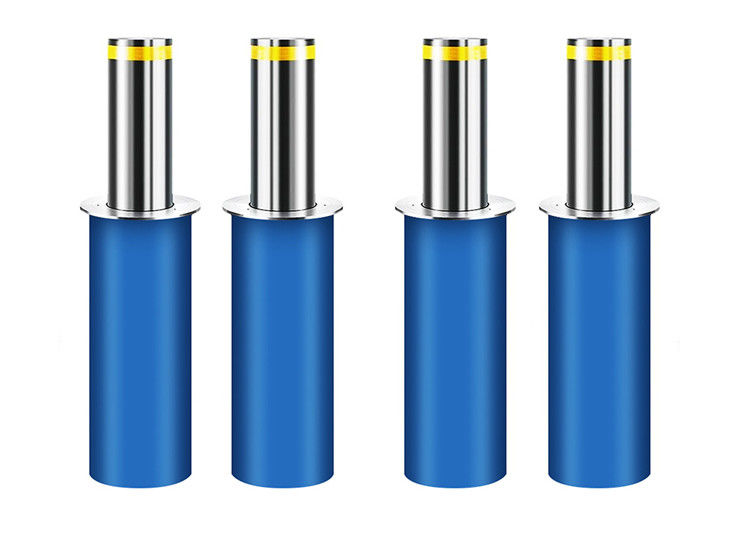

8k Mirror Surface Anti-Collision Hydraulic Rising Bollards with 220V Power Supply
  • 8k Mirror Surface Anti-Collision Hydraulic Rising Bollards with 220V Power Supply
  • 8k Mirror Surface Anti-Collision Hydraulic Rising Bollards with 220V Power Supply
  • 8k Mirror Surface Anti-Collision Hydraulic Rising Bollards with 220V Power Supply
8k Mirror Surface Anti-Collision Hydraulic Rising Bollards with 220V Power Supply

8k Mirror Surface Anti-Collision Hydraulic Rising Bollards with 220V Power Supply

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HRB01
Product Details
Surface Treatment:
8k Mirror Surface
Power Supply:
100V-240V
Control Voltage:
24V
Material:
SS304 Above Ground/mild Steel Under Ground
Service Life:
At Least 5 Million Times
Wire-less Remote Control Distance:
Max. 100 Meter
Highlight:

8k Mirror Vehicle Rising Bollards

,

Electro Hydraulic Vehicle Rising Bollards

,

SS316 Hydraulic Rising Bollards

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-7 working days after payment received
Payment Terms
T/T, Western Union, , credit card/Cash/wechat
Supply Ability
1000 pcs a month
Product Description
8K Mirror Electro Hydraulic Vehicle Rising Bollards Anti Collision 220V SS316
Electro-Hydraulic High Security Bollards with Anti-Collision Capability
Designed to ensure the safety of strategic access points against ram-vehicles, these automatic bollards provide superior access control and impact resistance for locations requiring extended security measures. The system automatically lowers with authorized passage via push button control.
These bollards effectively block vehicle access to restricted areas while operating safely, quietly, and reliably. The below-ground assembly features a heavy steel cylindrical structure that elevates using electro-hydraulic mechanisms to rise above ground level, creating effective passage obstruction.
During collision impacts, force is first absorbed by the steel cylindrical structure and subsequently transferred to the unit's foundation. These bollards are widely used for traffic control and pedestrian safety management at high-profile entry and exit points.
8k Mirror Surface Anti-Collision Hydraulic Rising Bollards with 220V Power Supply 0
Product Specifications
Material 304 stainless steel/316 stainless steel
Control Mode Electro-Hydraulic
Power Supply 110V/220V (control voltage 24V)
Bollard Diameter 168mm, 219mm (default), 273mm, 324mm etc
Rising Height 600mm (default), 800mm, 1000mm
Wall Thickness 6mm (default), 8mm, 10mm, 15mm, 20mm
Waterproof Degree IP68
Surface Treatment 8K Mirror
Operating Temperature -40℃ to +70℃
Control Model Push button/remote control standard, loop detector/card reader optional
Running Speed 2-4S (ascending)
Safety Signs Reflective tape/LED warning light zipper/loop detector system traffic lights
Cylinder Stainless steel/plastic coating for steel tube
Optional Function Traffic Lamp/Solar light/Hand Pump/Safety Photocell, Reflective tape/sticker, buzzer
Optional Color Brushed titanium gold, champagne, rose gold, Brown, red, purple, sapphire blue, gold, dark blue paint, chocolate, stainless steel, Chinese red paint
Main Features and Functions
  • Multiple steel thickness options available (default 6mm)
  • Wide range of color customization
  • Custom sizing capabilities
  • Stable and safe operation with OMRON PLC control system
  • Fast rising time and durable quality with hydraulic pressure system
  • Durable stainless galvanization housing
  • Optimized frame structure with high anti-impact and loading capabilities
  • Superior security and anti-collision performance
  • Reflective band and low-energy LED lighting for nighttime visibility
  • High resistance to impacts and atmospheric elements
  • Electro-hydraulic drive mechanisms
  • Single or multiple unit configurations with common drive unit
  • Robust construction with exceptional impact resistance
  • Illuminated ring composed of LED lights for enhanced visibility
