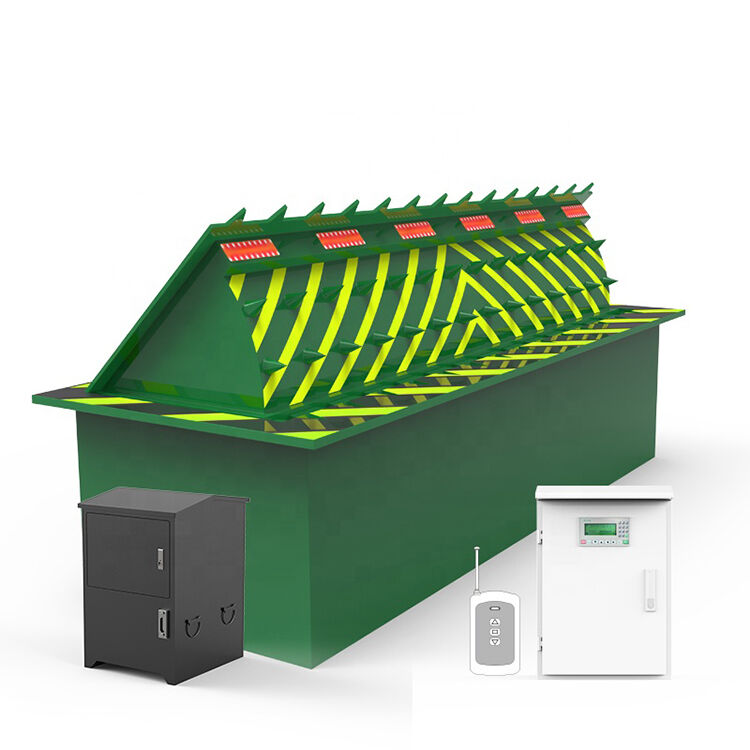

Yellow Reflector Hydraulic Road Blocker
This 380V hydraulic road blocker with yellow warning reflector and rustproof lacquer finish is designed to destroy the suspension of intruding vehicles and prevent forcible penetration into secured areas. Any forceful vehicular attempt to breach this barrier results in complete destruction of the vehicle's axles.
When lowered to the closed position, the road blocker allows smooth vehicle access without hindrance. This high-security access control solution is ideal for critical infrastructure applications including government ministries, defense sites, and nuclear power plants.
Applications
Hydraulic Road Blockers are widely used in highway toll stations, checkpoints, prisons, airports, government agencies, embassies, military bases, customs, banks, industrial and mining enterprises, ports, warehouses, parking lots, and all locations where vehicle traffic requires restriction.
Product Specifications
| Product Name |
Road Blocker/Road Barrier |
| Passing Vehicle Capacity |
80T Truck |
| Operating Temperature |
-45℃ to 65℃ |
| Relative Humidity |
≤ 95%, No Condensation |
| Starting Time |
≤ 3 Seconds |
| Shutting Time |
≤ 3 Seconds |
| Power |
3.7KW/380V, Three-phase and Single-phase |
| Motor Type |
Hydraulic Motor |
| Storage Environment |
-40℃ to 75℃, Rainproof, Moisture, Dustproof |
| Material |
A3 Steel with Rustproof Lacquer |
| Protection Rating |
IP68 |
Standard Dimensions
L3000 * W1000 * H760 mm (Rising height: 500mm)
L3500 * W1000 * H760 mm (Rising height: 500mm)
L4000 * W1000 * H760 mm (Rising height: 500mm)
L4500 * W1000 * H760 mm (Rising height: 500mm)
L5000 * W1000 * H760 mm (Rising height: 500mm)
L5500 * W1000 * H760 mm (Rising height: 500mm)
L6000 * W1000 * H760 mm (Rising height: 500mm)
Custom sizes available upon request
Main Features
- Control System: Hydraulic with multi-language LCD display (English, Russian, Turkish, Spanish)
- Power Supply: 380V (Control voltage 24V)
- System Power: 3.7KW
- Pressure Capacity: Maximum 120 tons for container trucks
- Anti-collision Rating: K12 (equivalent to 120KM/hour impact resistance)
- Protection Level: IP68 (Dustproof and Waterproof)
- Opening Time: 3-6 seconds (adjustable)
- Closing Time: 3-6 seconds (adjustable)
- Communication: RS485 ≤ 1200M
- Elevation Range: 450mm-800mm
- Working Temperature: -45°C to 75°C
- Storage Environment: -10°C to 75°C, rainproof, moisture proof, dustproof
- Weight: 2200kg-5500kg approximately
Installation Requirements
Installation requires pavement width interception according to customer's actual intersection width. Standard installation sizes: 2m, 2.5m, 3m, 3.5m, 4m, 4.5m, 5.5m, 6m.
Additional Functions
- Manual operation capability during power outages
- Gang-control interface for multiple unit coordination
- Reliable heavy-duty structure with smooth action and low noise
- Reversible operation during rising and falling cycles
- Hydraulic drive with hydraulic lock mechanism
- PLC programming command control system
- LCD display with multi-language menu support
- PLC built-in encryption system for security
- Double dynamic double oil pump (2.3ML/time)
- Hydraulic oil hose: PT international interface, 1/2" double wire high pressure hose
